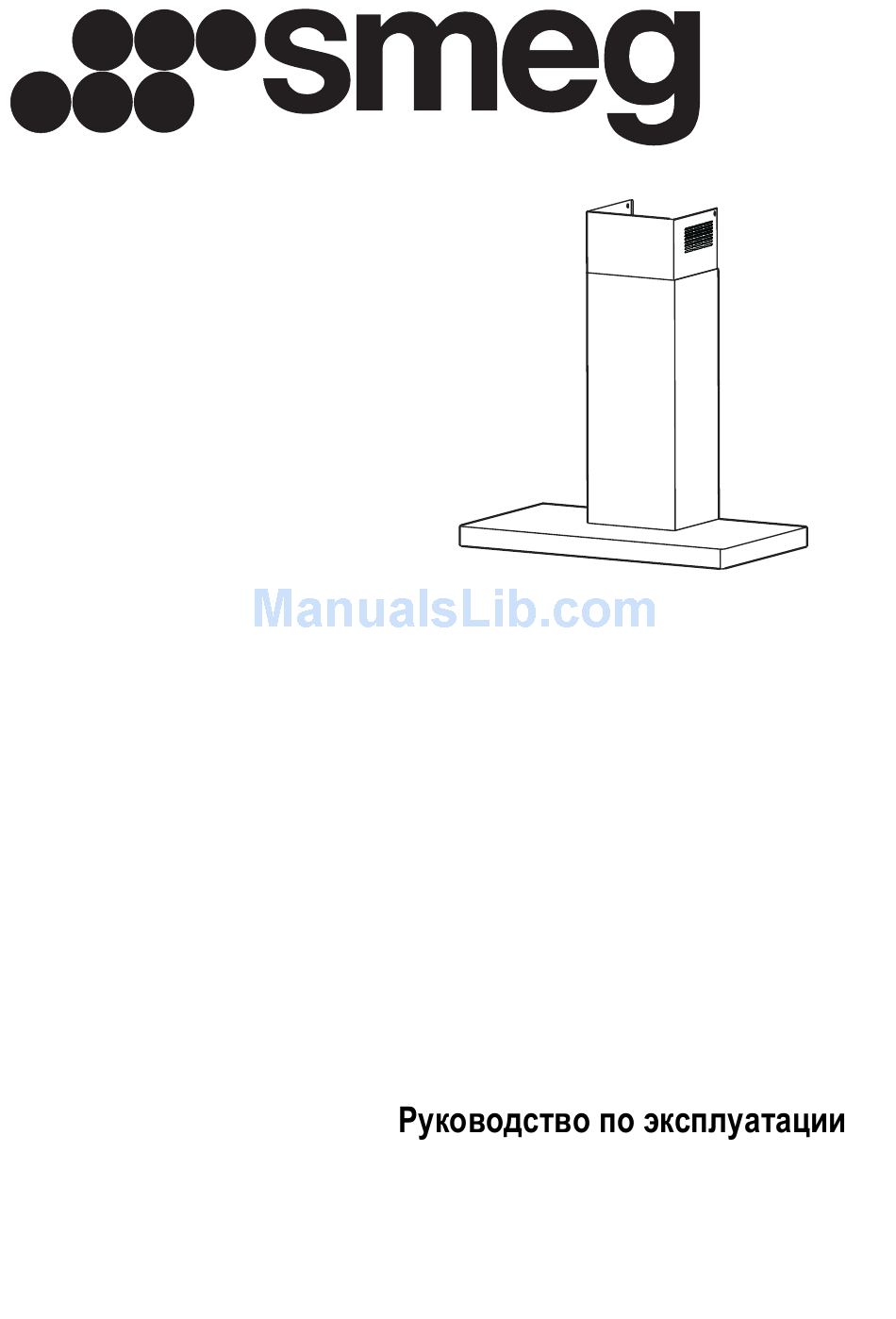

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Bruksanvisning KSE90XSM...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI... 4 CARATTERISTICHE... 5 INSTALLAZIONE ... 6 USO... 9 MANUTENZIONE ... 10 INDEX RECOMMENDATIONS AND SUGGESTIONS ... 11 CHARACTERISTICS ... 12 INSTALLATION... 13 USE ... 16 MAINTENANCE ... 17 SOMMAIRE CONSEILS ET SUGGESTIONS... 18 CARACTERISTIQUES... 19 INSTALLATION... 20 UTILISATION ...
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. - Page 4 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Wall Plugs Screws 4,2 x 44,4 Screws 2,9 x 9,5...
-
Page 5: Installation
INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line. -
Page 6: Ducted Version Air Exhaust System
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... - Page 7 Chimney assembly Upper exhaust Chimney • Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are well seated. • Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.
- Page 8 Light Controls the worktop illumination Valve Open and close the air outlet valve. 1 16...
-
Page 9: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
