HATHASPACE HSE1500 - Air Purifier Manual

Introduction

NOTE:
Remove plastic bag from filter before first use

READ AND SAVE THESE INSTRUCTIONS
Use unit according to instructions provided in the manual. Keep manual for future reference.
This appliance can be used by children aged 8 years and above and individuals with reduced physical, sensory, mental capabilities or lack of experience if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

Basic Information

Product Diagram

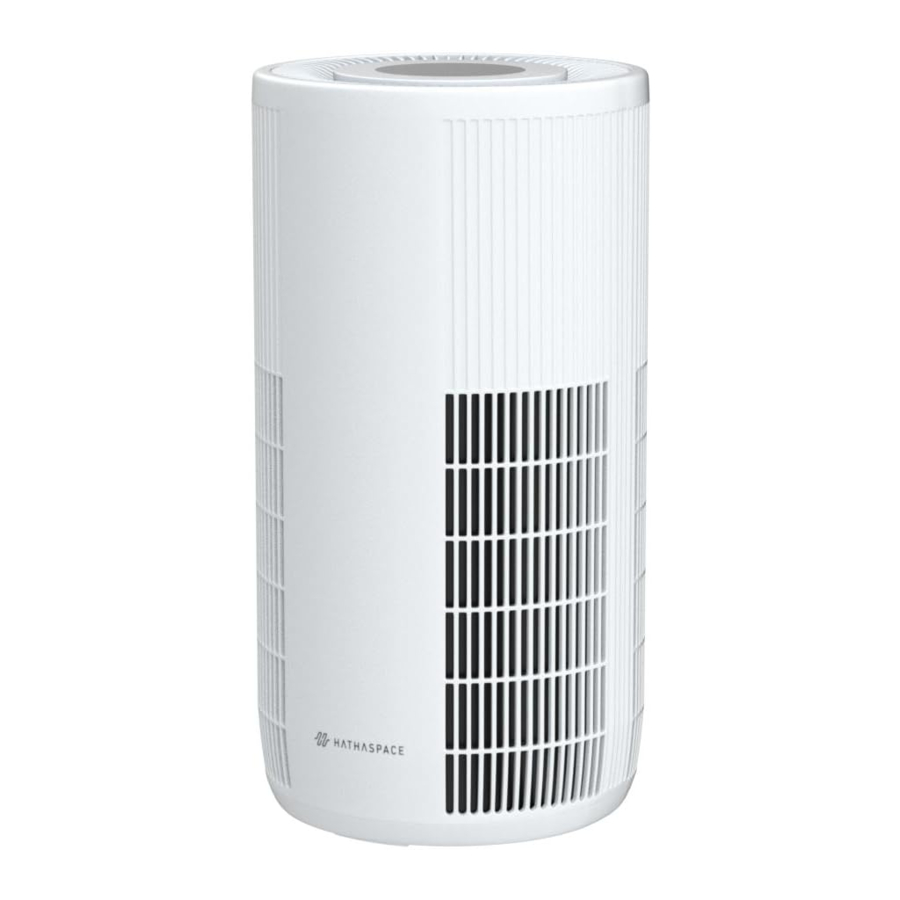

HSE1500 Air Purifier

4-in-1 Purification System

Your Hathaspace filter uses 4 advanced technologies to keep your air clean, capturing airborne particles:

1. Polypropylene Pre-filter
   A preliminary Polypropylene Pre-filter removes large particles like pet hair, dust, and floating debris. This helps extend the life of the composite filter.
2. Pre-filter
   Non-woven materials serve as an extra pre-filter, capturing small corrosive particles. This extends the life of the H13 HEPA filter.
3. Activated Carbon Filter
   Activated carbon absorbs smoke, odors, and gases in the air including but not limited to formaldehyde, ammonia, sulfur dioxide, nitrogen oxide, toluene, acetic acid, trimethylamine, benzene, and acetaldehyde. Small microporous zeolite minerals are added to the carbon filter to remove heavy metals and combustion chemicals.
4. H13 HEPA Filter
   The high efficiency HEPA filter can capture small micron particles. These smaller particles make up the majority of harmful air pollutants like tobacco, smoke and lead dust.

Control Panel

No.	Icon	Function
1		Power button: Press to power on/off function.
2		Four Speed button: Adjust fan speed to 1- 2- 3- 4- SLP levels. Sleep mode: Press speed button to choose sleep mode. In sleep mode, the screen will show "SLP", all the other indicator lights are turned off. The SLP indicator light is automatically adjusted to half brightness.
3		Brightness adjustment: The default brightness is 100% when powered on. Touch to switch air quality indicator light and LED light levels as follows: Air quality indicator light levels (0%>20%>40%>60%>80%>100%) LED display light levels (10%>20%>40%>60%>80%>100%) Notice: When air quality indicator light level shows 0%, the LED display light shows 10% brightness.
4		Filter reset: After the unit has been used for 3000 hours, the unit will remind the user to replace the filter when it is powered on each time.
5		Auto mode: Press the auto mode button to alternate between PM2.5 and AQI display. In Auto mode, the fan speed will automatically adjust according to the air quality.
6		Timer function: Press timer button to set to 1H>2H>4H>8H>0H. | H = Hour(s).
7		Child lock: Long press the button 3 seconds to turn on/off the child lock function.

LED Display

No.	Icon	Definition
1		Fan Speed Indicator, 1-2-3-4-SLP levels.
2		Time Indicator
3		Eco mode: When lit, the unit automatically enters energy saving Eco mode when the PM2.5 count is lower than 35 for 30 mins or AQI>80%. The motor stops for 10 minutes, then runs for 10 minutes in speed 1. If PM2.5 is detected to be higher than 35ug/m³, the ECO light will turn off and exit the ECO mode.
4		Auto Mode Indicator
5		Filter Reset Indicator (Red Color). Press the Filter Reset button for 5 seconds to reset the air purifier, otherwise, the filter light will keep blinking.
6		Child Lock Indicator
7		AQI Indicator
8		PM2.5 Indicator
9		PM & AQI Display: The PM2.5 and the AQI display can be chosen by the Auto button.

Air Quality Indicator

Particle Sensor

The sensor is placed inside the air purifier and can detect the air quality intelligently.

Note: The sensor assesses the air quality based on the air coming in through the outside small holes.
To ensure continuous operation, please keep it clean using a soft brush to prevent any particle build-up.

Brightness Adjustment

There are six levels of light brightness.
The light levels are pre-set at these levels:

• The default brightness of lights is 100% (including all indicators and air quality lights).
• Press the brightness adjustment button to manually adjust the air quality indicator light levels as follows: 0%>20%>40%>60%>80%>100%
• Press the brightness adjustment button to manually adjust the LED display light as follows: 10%>20%>40%>60%>80%>100%
• The brightness is not memorized after the light is adjusted and it will still be 100% when the machine is turned on next time (unless you press and hold the brightness key for 3 seconds to set the memory brightness setting).
• After adjusting the brightness of the light, long press the brightness key for 3 seconds to set the memory light brightness. For example, if you want to set to 20%, long press for 3 seconds, the light brightness will be 20% after the next startup.

Air Purifier Maintenance

Cleaning the unit

• Please turn off the power and unplug power cord before cleaning the air purifier.
• To remove dust, lightly wipe the unit with a soft, clean cloth. If needed, wipe the unit with a clean damp cloth, then immediately dry with a clean dry cloth. Don't use alcohol, oil, benzene to clean the unit.
• Do not immerse the unit in water.

Note: The HEPA filter, gray color non-woven pre-filter, and the activated carbon filter cannot be reused, cleaned, or replaced after being used. Please don't wash them by water.

Replacing Filter

To maintain the performance of the air purifier and purification effect, we advise to replace the filters every 4 months or 3000 hours.
For the best performance and longest lifespan, use certified HARMONY 1500 replacement filters for HSE1500.

1. Unplug the air purifier from the electrical outlet.

2. Twist the bottom panel counterclockwise to remove the panel.


Air Purifier Maintenance

3. Remove the old filter and dispose of it properly. The filter is not recyclable.

4. Remove the new filter packaging and insert it into the air purifier.
5. Turn it clockwise to tighten the bottom panel.

6. Place the air purifier on the floor again and plug it back into the electrical outlet. The air purifier will automatically clean the air again.

Note:

• The actual replacement frequency depends on its service length and air quality.
• Please don't forget to press the "Filter Reset" button for 5 seconds to reset the air purifier, otherwise, the filter light will keep blinking.

Troubleshooting

Customer Support

Hathaspace strives to make every part of your experience exceptional. If you have any questions or concerns about your air purifier, please feel free to contact our Customer Support.
Email: team@hathaspace.com
Website: https://hathaspace.com
