Welcoming
MODEL NUMBER DESCRIPTION
TJ-0113V3022BR
TJ-0113V3022GR
ALLEN + ROTH and logo design are trademarks
or registered trademarks of LF, LLC.
All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Call our customer service department at
866-439-9800, 8 a.m - 8 p.m.. EST, Monday - Sunday. You could also contact us at
ascs@lowes.com.
AS23191
Haverhill Vanity With Top Combo Summer Oak Finish Engineered
Black Marble Top
Haverhill Vanity With Top Combo Weathered Oak Finish Engineered
Black Marble Top
Purchase Date
Sophisticated

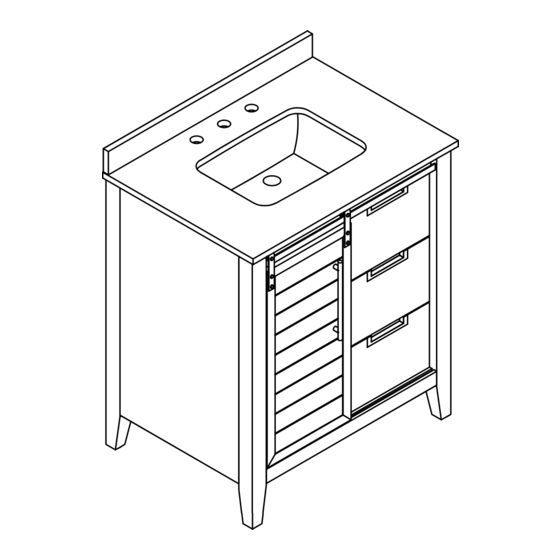

30" HAVERHILL VANITY WITH TOP
MODEL # TJ-0113V3022BR, TJ-0113V3022GR
1
Inspiring
I TEM #5288054, 5288052
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth TJ-0113V3022BR
Summary of Contents for Allen + Roth TJ-0113V3022BR
- Page 1 Black Marble Top Haverhill Vanity With Top Combo Weathered Oak Finish Engineered TJ-0113V3022GR Black Marble Top ALLEN + ROTH and logo design are trademarks I TEM #5288054, 5288052 or registered trademarks of LF, LLC. All rights reserved. 30" HAVERHILL VANITY WITH TOP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents.......................3 Safety Instructions......................3 Preparation.........................4 Assembly or Installation Instructions...................4 Care and Maintenance......................7 Warranty..........................7 Replacement Parts List......................8 Optional-Remove Top......................10... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Vanity Vanity top Backsplash SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING Unpacking requires two adults and several steps are more easily handled with two adults. -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 20-30 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit. - Page 5 INSTALLATION INSTRUCTIONS Removing the drawer (optional) Fully extend the drawer. Pull the two latches outward under slide of the drawer to release the lock. Simultaneously tilt and lift the drawer upwards to pull it out of the vanity (A). Removing the door (optional) Slide the door in the middle where two brackets could pass throw two holes under the top metal rail.
- Page 6 INSTALLATION INSTRUCTIONS 4. Installing the Backsplash Apply silicone to the back and one long edge of the Backsplash (C). Place the Backsplash (C) on the vanity (A). Be sure to align the Backsplash (C) with the top (B) of the vanity (A). Allow the silicone to dry before using the vanity.
-
Page 7: Care And Maintenance
CARE AND MAINTENANCE Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. You can clean the vanity with a gentle, non-abrasive household cleaner. Make sure to dry the wood immediately with a soft cloth or towel. The stone top can be cleaned using standard marble cleaning agents available at your local supplier. -
Page 8: Replacement Parts List
REPLACEMENT PARTS LIST FOR # TJ-0113V3022BR For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at ascs@lowes.com. PART DESCRIPTION PART# Backsplash TJ-0113V3022-BL Door (Brown) TJ-0113V3022-D (BR) - Page 9 Under mount glide set TJ-0113V-UG Adjustable leveler TJ-0113V-AL Slider sub-assembly TJ-0113V-SA TJ-0113V-DB Door bracket TJ-0113V-PC Plastic covering TJ-0113V3022-TMR Top metal rail Printed in Vietnam ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved.
-
Page 10: Optional-Remove Top
OPTIONAL-REMOVE TOP Pull out the middle drawer (the top is a fixed drawer panel) 2. Take out the top. Sketch Slide the door in the middle then take out the screws. Wood screws... - Page 11 OPTIONAL-REMOVE TOP Reinstalling the existing top. Place back the top on the vanity. Tighten these screws. Pull the door back its place *Note:When vanity top is preinstalled. 4. Install the middle drawer.
