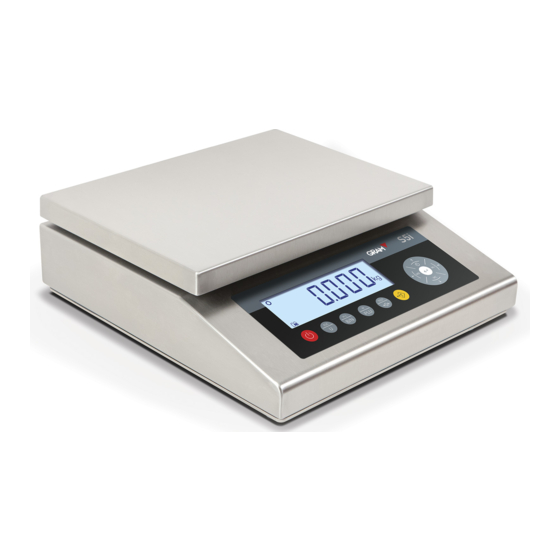

- Page 1 QUICK START GUIDE PACKAGING 1 x Pan. Accompanying documentation 1 x S5i bench scale.
-
Page 2: Keyboard & Display
KEYBOARD & DISPLAY LCD DISPLAY Displays the weight on the scale pan. In HOLD mode, the display flashes to indicate that the real weight on the scale is not being shown, with the last registered stable weight being shown instead. Measurement unit used to indicate the weight. - Page 3 KEYBOARD & DISPLAY On / Off. Press once to switch the indicator on. Hold the key down for 2 segundos to switch off the indicator. Counting mode Switches between counting mode and weighing mode. When into the settings menu, it works as “escape”...
-
Page 4: Factory Setting
For access the settings menu keep the M/PLU key pressed down for 2 seconds. ¿ validate the current setting / moves to the next digit when editing a numeric value ¿¿ validate a manually input value. ESC Returns to the menu’s previous level without making any change. ß... - Page 5 ¯ ¯ Calibration process ½ ¿ CALIB ¿ ½ ¯ Automatic correction for gravity force effect ½ ¿ G-COr ¿ On • « OFF G-Set ½ ¯ Location code for g force correction ½ ½ ¿ G00 «...
- Page 6 At the SCAlE menu you will find the settings needed to define and adjust the measurement scale of the instrument: Measurement unit, maximal capacity, scale interval (division), decimal point, as well as different options related to the operation of the auto-zero device. Access to these configuration options is reserved for technical personnel and is protected by a keyword to avoid accidental changes that would cause the instrument to malfunction.
- Page 7 TABLE OF GEOGRAPHICAL ADJUSTMENT VALUES Elevation above sea level in metres 1300 1625 1950 2275 2600 2925 3250 Geographical latitude 1300 1625 1950 2275 2600 2925 3250 3575 in the northern or Elevation above sea level in feet southern hemisphere in degrees and 1060 2130...
-
Page 8: Rs-232 Serial Interface
MORE INFORMATION Download the full manual from the following link: https://gram-group.com/wp-content/uploads/2018/04/Manual_K3-V4.00x_ENG-A5_R1_D2.pdf Gram Precision S.L. Travesía Industrial, 11 · 08907 Hospitalet de Llobregat · Barcelona (Spain) Tel. +34 902 208 000 · +34 93 300 33 32 Fax +34 93 300 66 98 gram.es...
