New Classic Furniture D4832-22 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2.Please do not tighten screws or bolts until the assembly is completed.
3. To level the chairs or table, before tightening all the screws, the chair or table must be place on a flat
surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO. COMPONENT
A
CHAIR BACK
CUSHION
B
SEAT
FRONT LEG
C1 (RSF) RIGHT
SIDE FACING
FRONT LEG
C2 (LSF) LEFT
SIDE FACING
SIDE STRETCHER
D1
(RSF) RIGHT
SIDE FACING
SIDE STRETCHER
D2 (LSF) LEFT
SIDE FACING
FRONT
E
STRETCHER
Assembly Instructions
SKETCH QTY.
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
MADE IN VIETNAM
ITEM NO. D4832-22

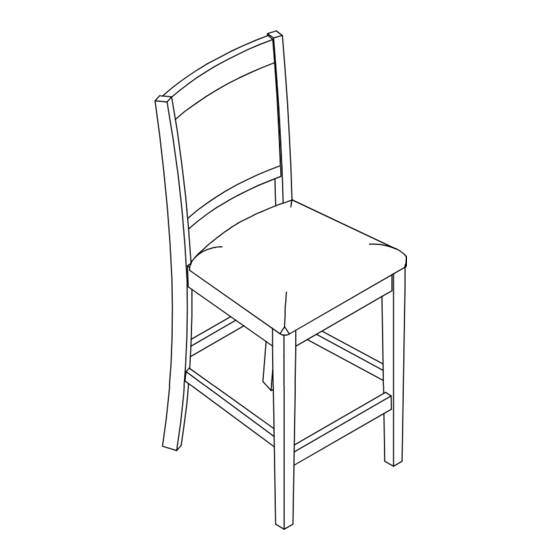

POTOMAC COUNTER CHAIR
(2 PER CARTON)
HARDWARE LIST
NO. COMPONENT
FLAT WASHER
1
5/16" DIA.
SPRING
WASHER
2
5/16" DIA.
NUT
3
5/16" DIA.
ALLEN
4
WRENCH
5/16" DIA.
SHORT BOLT
5
1/4"-20 x 1 9/16"
LONG BOLT
6
1/4"-20 x 3"
WOOD SCREW
7
#8 x 1 1/2"
SKETCH QTY.
22 PCS
22 PCS
8 PCS
1 PC
6 PCS
8 PCS
12 PCS
PAGE: 1 OF
