New Classic Furniture D 4832-40 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not tighten screws or bolts until the assembly is completed.
3. To level the chairs or table, before tightening all the screws, the chair s or table must be placed on a flat
surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.

PARTS LIST

NO. COMPONENT
A
TOP
B CASE
C LEGS
To assemble the bench, please follow the following
steps:

STEP 1: Assemble the legs

C
Assembly Instructions
SKETCHQTY. QTY.
1 PC
1 PC
4 PCS
B
MADE IN VIETNAM

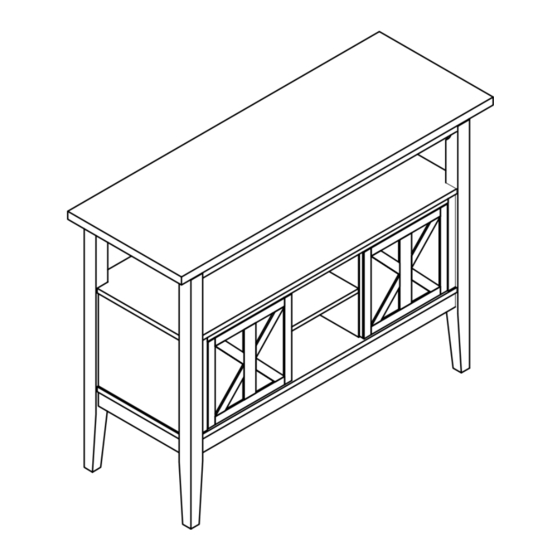

ITEM NO. D 4832-40
POTOMAC SERVER

HARDWARE LIST

NO. COMPONENT
FLAT WASHER
1
5/16 *DIA
LOCK WASHER
2
5/16 *DIA
BOLT
3
5/16 *2-3/8"
ALLEN KEY
4
3/16*2-1/8"
4
3
SKETCHQTY. QTY.
12 PCS
12 PCS
12 PCS
1 PC
2
1
PAGE: 1 OF 2
