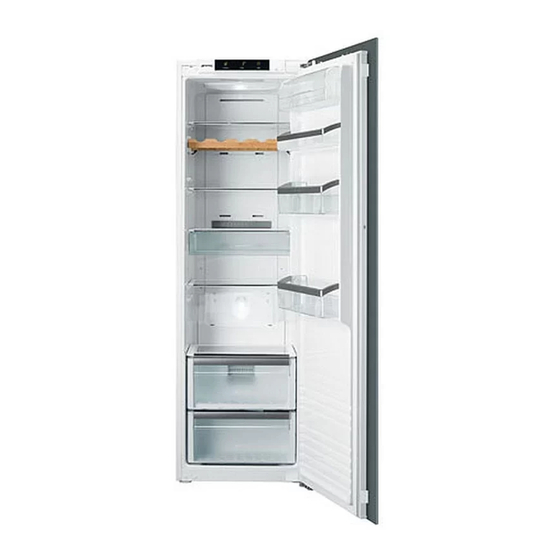

Summary of Contents for Smeg FB30AFNF
- Page 1 Model: LB30AFNF FB30AFNF Frigorifero/congelatore da incasso Manuale di installazione Built-in Fridge/Freezer Installation Manual...
-
Page 3: Table Of Contents
Contents 1. Note before installing ... 21 2. Components to install ... 22 3. Assembly/Disassembly diagram of Built-in refrigerator ... 23 4. Dimension of Built-in refrigerator and furniture ... 24 5. Installing the built-in refrigerator ... 25 6. Procedure to install * The procedure and the method to install for the refrigerator are same to the freezer. -
Page 4: Note Before Installing
1. Note before installing ■ Install the product at the place avoiding the heat from the heater or the boiler or the direct sunlight, with the shade and the good ventilation always. ■ Prepare the furniture possible to circulate air by referring to the size. Install the product for air to smoothly flow via the front intake hole. -
Page 5: Components To Install
2. Components to install ① Top cover of refrigerator ② Hinge holder Qty: 1EA ⑤ Hinge bracket ⑥ Hinge bracket cover Qty: 1EA ⑨ Depth adjusting bracket ⑩Depth adjusting bracket cover Qty: 2EA ⑬ Cap screw ⑭ Front cover of hinge Qty: 2EA ⓐ... -
Page 6: Assembly/Disassembly Diagram Of Built-In Refrigerator
3. Assembly/Disassembly diagram of Built-in refrigerator... - Page 7 4. Dimension of Built-in refrigerator and furniture ※ The entire furniture thickness shown at this figure is based on 15mm. ※ The furniture dimension should comply with the figure. 5 9 5 m 1775 mm 1830mm 1688.5 mm or longer Caution When the furniture thickness is changed, the door size of the furniture is changed.
-
Page 8: Installing The Built-In Refrigerator
5. Installing the built-in refrigerator ■ 1. It should be structured for air to enter from the intake hole and to exit from the discharge hole. 2. The passage ¡ should be secured when the passage ¨ is not secured. 3. -
Page 9: Procedure To Install
6. Procedure to install 1) Preparing before installing the refrigerator 1. Installing the top cover of the refrigerator 1) Fold the top cover of the refrigerator ¨ in advance as shown at the figure. 2) Fix the top cover of the refrigerator ¨ at the place by 45mm from the end of the furniture with the wood screws spots). - Page 10 6. Procedure to install 1) Preparing before installing the refrigerator 2. Insert the hinge base ② into the hinges (two spots). (See Figure 1) (If the thickness of the furniture is 20mm, do not install the hinge base ②.) 3. Tilt backward the refrigerator and loosely fix the height adjusting bracket ③ at the bottom (two spots) of the refrigerator door by using the hinge screws ⓔ...
- Page 11 6. Procedure to install 2) Case related work after placing the refrigerator 6. Adjust the horizontal/vertical level of the refrigerator by turning the level adjusting leg( 1⃞ When the top side is deep The refrigerator is tilted backward, so turn counterclockwise the level adjusting leg to adjust the level.
- Page 12 6. Procedure to install 2) Case related work after placing the refrigerator 7. Make sure that the end of the hinge base ② is aligned with the front right of the furniture. 8. Fix the top hinge and the bottom hinge by the hinge screws ⓕ...
- Page 13 6. Procedure to install 2) Case related work after placing the refrigerator 10. Open the refrigerator door, place the hinge bracket ⑤ at the top left of the refrigerator, and fix them at the furniture and the refrigerator respectively with the wood screw ⓑ...
- Page 14 6. Procedure to install 3) Furniture door related work 12. Place the paper jig ⑦ on the reference line of the paper jig at the rear side of the furniture door. (See Figure 7) ※ ※ Reference - Place the reference line of the paper jig at 1595mm from the floor of the furniture. - If the furniture door is long, place the reference line of the paper jig at 1595mm plus ‘A’...
- Page 15 6. Procedure to install 4) Refrigerator door related work 15. Insert the height adjusting nuts ⓓ (two spots at the bottom) into the height adjusting screw, and then place the top bracket ⑧ of the furniture door at the height adjusting screw of the top of the refrigerator door.
-
Page 16: Dimension Of Built-In Refrigerator And Furniture
6. Procedure to install 4) Refrigerator door related work 17. Loosely fix the top bracket ⑧ with the height adjusting nuts ⓓ (Figure 13), and adjust the depth gap between the furniture door and the front of the furniture to 4mm. At this time, adjust the location of the furniture door for the furniture door not to touch the furniture when opening/closing the door. - Page 17 6. Procedure to install 4) Refrigerator door related work 21. Move the furniture door to the depth direction to adjust the depth gap to 4mm (See Figure 14), and fix the depth adjusting bracket ⑨ to both sides (two spots) of the refrigerator door with the door screw ⓐ.
- Page 18 6. Procedure to install 5) Installation checkup and finishing work 24. Insert the font cover ⑭ of the hinge into the front of the inside. (two spots) 25. Insert the ventilation cover ⑮ into the rectangular floorcloth pan. 26. Attach the gasket ⒃ as shown at the figure.
- Page 19 6. Procedure to install 6) Changing the opening direction of the refrigerator door ※ 1. Loosen the screws ❶ and ❸ at the hinge of the case section, and push the door to the right to disconnect. (See Figure 20) 2.
- Page 20 6. Procedure to install 7) Furniture door gap ※...
- Page 21 CONGELATORE Istruzioni per l'uso Nel ringraziarvi per avere acquistato questo prodotto SMEG, vi raccomandiamo di leggere attentamente le seguenti istruzioni e di conservare questo manuale per eventuali consultazioni future. FREEZER User's Guide Please read this User's Guide carefully before operating and keep it handy for reference at all times.
- Page 23 Table of Contents Registration Introduction Important Safety Instruction Identification of Parts Operation Temperature Control Display Panel For Temperature Control Suggestion On About Ice Food storage How to store food properly Storing Food Care and General Information Maintenance How to disassemble each component Cleaning Trouble Shooting Trouble Shooting...
-
Page 24: Introduction
Introduction Registration The model and serial number are found on the rear of Introduction this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. - Page 25 Important Safety Instruction WARNING To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance. 1. When connecting the power The dedicated outlet should be used.
- Page 26 Introduction Important Safety Instruction Do not extend or modify the length of the power plug. It causes electric shock or fire by the electric damage of the power cord or others. Unplug the power plug when cleaning, handling or replacing the interior lamp of the fridge-freezer. It may cause electric shock or injury.
- Page 27 Important Safety Instruction Make sure of grounding. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded. The incorrect grounding may cause breakdown and electric shock.
- Page 28 Introduction Important Safety Instruction Prevent children from entering the product. It may endanger the life of a child if the child enters the refrigerator. Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.
- Page 29 Introduction Important Safety Instruction Do not store the medicine or the academic materials at the fridge-freezer. When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk. Do not use the combustible spray near the fridge- freezer.
- Page 30 Introduction Important Safety Instruction Use the submerged fridge-freezer after checking it. It may cause electric shock or fire. When gas is leaked, do not touch the fridge-freezer or the outlet and ventilate the room immediately. The explosion by spark may cause •...
- Page 31 Introduction Important Safety Instruction Do not allow any person except the qualified engineer to disassemble, repair or alter the fridge- freezer. It may cause injury, electric shock or fire. Do not use the fridge-freezer for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).
- Page 32 Introduction Important Safety Instruction Install the fridge-freezer on the solid and level floor. Installing it on the unstable place may cause death by falling down the fridge-freezer when opening or closing the door. Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the fridge- freezer, the heatproof grill (exhaust hole) at the backside.
- Page 33 Introduction Important Safety Instruction Do not put bottle in the freezer. It may freeze the contents to break the bottle to cause injury. Do not insert the hands into the bottom of the fridge-freezer. The iron plate of the bottom may cause injury.
- Page 34 Introduction Important Safety Instruction Warning This fridge-freezer must be properly installed and Precaution • located in accordance with the Installation Instruction before it is used. Before you install this fridge-freezer reference to • installation manual. Never unplug your fridge-freezer by pulling on the •...
- Page 35 Important Safety Instruction • • • Do not modify or It will cause electric shock or fire. extend the Power Cord length Accessibility of The supply plug of the refrigerator-freezer should be placed in easy accessible position for quick disconnection Supply Plug in emergency.
- Page 36 Introduction Important Safety Instruction Warning Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit.
- Page 37 Important Safety Instruction Caution If the wall socket is loose, do not insert the power • plug. It may cause electric shock or fire. Never unplug your refrigerator by pulling on the • power cord. Always grip plug firmly and pull it straight out from the outlet.
-
Page 38: Identification Of Parts
Introduction Identification of Parts Freezer Shelf Ice Tray & Bank Freezer Compartment Leveling Screw... -
Page 39: Operation
Operation Temperature Control Your freezer has controls that let you regulate the temperature in the freezer compartments. Display Panel For Temperature Control Adjusting the temperatures and functions Display Panel POWER EXTRA FRZ. FREEZER 3SECS Extra Freezer Power Temperature Adjustment Button for Freezer Compartment... -
Page 40: Power
Operation Power How to adjust the temperature in the freezer compartment Note If you push button more than 3 seconds • you can switch on or off the Freezer. The initial Temperature of the Freezer Compartment is • -23°C and -15°C respectively. You can now adjust the temperature of the compartments as you want. -
Page 41: Extra Freezer
Please select this function for prompt freezer. Extra Freezer • This function is used when you want to freeze the • foods quickly. Press the EXTRA FRZ. (Extra Freezer) button once, and then the quick freeze operation starts with the lamp it. The Extra Freeze operation takes about 3 hours. -
Page 42: Ice Making
Operation Fill water in ice making box of the ice Ice Making • making corner. If water is fully filled the ice will not be separated well and water can be dropped to make ice lumped. Ice will be dropped into the ice •... -
Page 43: About Ice
About Ice 1. Fill water up to the level line of the ice-making bowl. - It is hard to remove ice if water - When you want to freeze ice 2. Twist the ice-making bowl to remove ice. - It is easy to remove ice by - Do not store the not completely frozen ice. -
Page 44: Storing Food
Suggestions on food storage Caution Note Storing Food Do not store food which goes bad easily at low • temperature, such as banana, and melon. Allow hot food to cool prior to storing. Placing hot • food in the freezer could spoil other food, and lead to higher electric bills. -
Page 45: Care And
Power Failure If You Move Anti Condensation Pipe Care and Maintenance General Information 1~2 hour power failure does no harm to the foods • stores. Try to avoid opening and closing the door too frequently. Take out foods from the freezer and firmly fix the loose •... -
Page 46: How To Disassemble Each Component
Care and Maintenance Upper shelf Lower drawer To Reverse the Doors Caution How to disassemble each component It can be possible to disassemble only when the door is opened by 90° or wider. Disassembling should be done by the reverse order of assembling. Fling up the shelf cover, and then slightly lift up and pull out the front of the shelf to remove. -
Page 47: Cleaning
Cleaning Be sure to unplug the power or shutdown the main Before Cleaning switch in your house. Exterior Clean the outside of the freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth. As above. -
Page 48: Trouble Shooting
Trouble Shooting Problem Freezer does not operate Freezer Compartment Temperature too warm Vibration or Rattling or Abnormal Noise Frost or Ice Crystals on frozen Food Moisture forms on Cabinet Surface Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. - Page 49 Problem Moisture collects inside Freezer has odor Door not closing properly Interior light does not work Possible Causes Too frequent or too long door openings. • In humid weather, air carries moisture into freezer • when doors are opened. Foods with strong odors should be tightly covered or •...
- Page 50 Memo...
- Page 51 SMEG IN THE WORLD Headquarters Smeg S.p.A. Via Leonardo da Vinci, 4 42016 Guastalla (RE) Tel. +39 0522 8211 Fax Italia. +39 0522 821452 Fax Export. +39 0522 821455 E-mail. commerciale.incasso@smeg.it www.smeg.it Subsidiaries Belgium N.V. SMEG BELGIUM S.A. Schoonmansveld 12 2870 Puurs Tel.
- Page 52 P/No. : MFL62525402...
