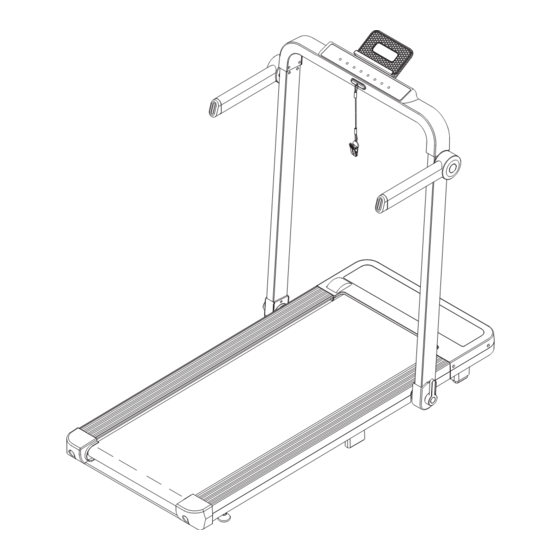

Stamina Tony Little INSTRIDE 45-9850 Owner's Manual
  1. Manuals
  2. Brands
  3. Stamina Manuals
  4. Treadmill
  5. Tony Little INSTRIDE 45-9850
  6. Owner's manual
Stamina Tony Little INSTRIDE 45-9850 Owner's Manual

Stamina Tony Little INSTRIDE 45-9850 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
Product May Vary Slightly From Pictured.
Customer Care
1 (800) 375-7520
Download the müüv app
for a step-by-step assembly video
Owner's
Manual
WARNING
!
E x e r c i s e c a n p r e s e n t
a health risk. Consult
a p h y s i c i a n b e f o r e
beginning any exercise
p r o g r a m w i t h t h i s
equipment. If you feel
faint or dizzy, immediately
discontinue use.
Serious bodily injury can
occur if this equipment is
not assembled and used
in accordance with the
owner's manual.
F o l l o w a l l s a f e t y
i n s t r u c t i o n s i n t h i s
owner's manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 45-9850,
45-9851
S/N: _____________
STAMINA PRODUCTS
MADE IN CHINA
©
2024 Stamina Products, Inc.
2024, 02

Advertisement

Table of Contents
loading

Related Manuals for Stamina Tony Little INSTRIDE 45-9850

Summary of Contents for Stamina Tony Little INSTRIDE 45-9850

  • Page 1 Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N Alliance Ave, Springfield, MO 65803 Customer Care © 2024 Stamina Products, Inc. 1 (800) 375-7520 2024, 02 www.staminaproducts.com...
  • Page 2 Quickstart Guide Download the müüv app to experience personalized fitness coaching for your Tony Little Treadmill! müüv also supports other exercise equipment you own and hundreds of healthy activities like outdoor walking to make moving fun! Go to the App Store on your device or scan the QR Code for quick access.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Instructions ........3 Maintenance ..........16 FCC Statements .......... 4 Conditioning Guidelines ......18 Grounding Instructions ......5 Warm-Up and Cool-Down ......19 Before You Begin ........7 Product Parts Drawing ......20 Equipment Warning, Caution & Notice Labels ... 8 Parts List ............

  • Page 4: Fcc Statements

    SAFETY INSTRUCTIONS Always make sure the Uprights (2, 3) are locked properly by the Fixing Lever (19). Always attach the Safety Key (50) to your clothing while using the inStride Treadmill. Do not step off the inStride Treadmill while it is in motion. Keep hands and fingers away from moving parts and avoid touching the belt during operation. Maintain proper posture and do not lean excessively on the handrails. Start with a slow pace and gradually increase speed and intensity.

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS The müüv Treadmill must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. The müüv Treadmill is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
  • Page 6 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook. Be sure to contact us if you have any questions on your new product.

  • Page 7: Before You Begin

    Treadmill. to make you feel better, look better, and enjoy life Providing you with a quality product is Stamina's to its fullest. top priority. However, sometimes there could be a It's a proven fact that a regular exercise program missing or incorrectly sized part.

  • Page 8: Equipment Warning, Caution & Notice Labels

    This chart is provided to help identify the warning, caution, and notice labels on the inStride Treadmill. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. INTERTEK ETL LABEL(85) Stamina Products, Inc. Model: 45-9850/45-9851 Max. User Weight: 250lbs This device complies with Part 15 of the FCC Rules.

  • Page 9: Operational Instructions

    OPERATIONAL INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. Read each step carefully before beginning. If you are missing a part, please go to staminaproducts.com under the Customer Care section and order the part needed, e-mail us at customer.care@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the U.S.). Our Customer Care Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central Time) Monday through Thursday and 8:00 A.M.
  • Page 10 OPERATIONAL INSTRUCTIONS TREADMILL MODE Follow the illustrated process below to unfold the inStride Treadmill to go into the treadmill mode: 1. Refer to illustration 1. Turn the FIXING LEVERS(19) counterclockwise 4 to 5 turns to loosen the LEFT and RIGHT UPRIGHTS(2, 3). Lift up the UPRIGHTS(2, 3) to the "stop" and lock in position by turning the FIXING LEVERS(19) clockwise.
  • Page 11 OPERATIONAL INSTRUCTIONS müüv CONNECTION OPERATION NOTE: 1. To fully operate your inStride Treadmill you will need to download the free müüv app. 2. You will need to enable bluetooth in your phone settings first. Power on the inStride Treadmill. Open the müüv app and follow the process below to connect the treadmill to the müüv app.
  • Page 12 OPERATIONAL INSTRUCTIONS USING THE FITNESS METER LED Display Control Panel GUIDELINES FOR USE: Plug the POWER CORD(51) into the socket on the front of the BASE FRAME(1), and plug the POWER CORD(51) into an electrical outlet with safety grounding. Turn on the power switch, the LED display will be fully displayed with a prompt sound.
  • Page 13 OPERATIONAL INSTRUCTIONS REMOTE CONTROL FUNCTIONS: Press to start running the treadmill. Press to decrease the SPEED when running the treadmill. START SPEED SPEED+ Press to increase the SPEED when Press to pause the treadmill and all running the treadmill. PAUSE/STOP function values will be kept.
  • Page 14 OPERATIONAL INSTRUCTIONS OPERATION NOTES: When you press the START button to start running the treadmill, the TIME display window will count down the numbers “3 - 2 - 1” with a prompt sound, then start the treadmill from the speed 0.5 miles per hour.
  • Page 15 OPERATIONAL INSTRUCTIONS TREADMILL ADJUSTMENTS When adjusted properly, the inStride Treadmill’s WALKING BELT(10) will roll smoothly around the WALKING BOARD(9) and over the front and rear rollers without catching or rubbing. For the belt to run smoothly, there are a few points that need to be noted.

  • Page 16: Storage

    Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts. Tighten loose nuts and bolts. Verify that the CAUTION LABEL(50) is in place and easy to read. Call Stamina Products immediately at 1-800-375-7520 for a replacement CAUTION LABEL(50) if it is missing or damaged.
  • Page 17 MAINTENANCE HANDRAIL ADJUSTMENT Over time the HANDRAIL(4) may loosen. You can remove the ROUND PLUG(22) from the HANDRAIL COVER(23). Use the ALLEN WRENCH(6mm)(53) to tighten the FLAT SOCKET HEAD BOLT(M10x1.45x30)(74) which is located on the inside of the cover. The HANDRAIL(4) must be able to rotate, do not overtighten the bolt.

  • Page 18: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 19: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 20: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...

  • Page 21: Parts List

    PARTS LIST PART# PART NAME Main Frame Left Upright Right Upright Handrail Crossing Frame Motor (1.0HP, 5A, 746w, brushless motor) Front Roller w/ Flywheel Rear Roller Walking Board Walking Belt Motor Cover Lower Motor Cover Left Side Molding Right Side Molding Rear Cover Left Upright Lower Cover Right Upright Lower Cover...
  • Page 22 PARTS LIST PART# PART NAME V-Ribbed Belt Remote Control Safety Key Power Cord Allen Wrench (6mm) Extension Wire (blue color) Extension Wire (brown color) Magnetic Ring Nylock Nut (M6 x 1) Bolt, Socket Head (M8 x 1.25 x 45mm) Bolt, Socket Head (M8 x 1.25 x 60mm) Bolt, Flat Socket Head (M6 x 1 x 30mm) Screw, Round Head (M4.2 x 13mm) Lock Washer (M10)

  • Page 23: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance Ave, Springfield, Missouri, USA, MO 65803, or email us at customer.care@staminaproducts.com, or call us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return the product or part to us for free repair or replacement at our option.

  • Page 25: Fax/Mail Ordering Form

    TO CONTACT CUSTOMER CARE For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts. com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
