Cooper Lighting Solutions Sure-Lites SEL17 Installation Instructions

IB505003EN

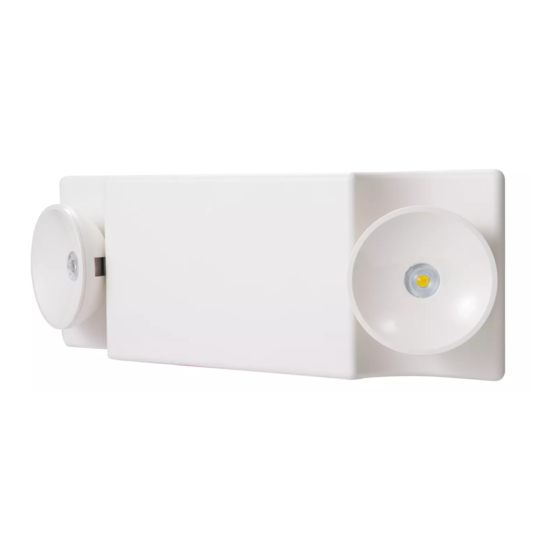

Installation Instructions for the Sure-Lites SEL17 Emergency Light
WARNING
Risk of Fire/Electric Shock
If not qualified, consult an electrician.
Important Safeguards
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE OBSERVED INCLUDING
THE FOLLOWING.
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use outdoors.
3. Do not use in hazardous locations, or near gas or electric
heaters.
4. Do not let power supply cords touch hot surfaces.
5. Use caution when servicing batteries. Battery acid can
cause burns to skin and eyes. If acid is spilled on skin or in
eyes, flush acid with fresh water and contact a physician
immediately.
6. Do not use this equipment for other than the intended use.
7. Installation is to be performed only by qualified personnel.
8. Install in accordance with National Electric Code and local
regulatory agency requirements.
9. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
10. Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
11. SAVE THESE INSTRUCTIONS
049-259
Risk of Electric Shock
Disconnect power at fuse or circuit breaker before
installing or servicing.
INSTALLATION
1. De-energize the circuit at the junction box (J-box) where
2. Open the emergency light by inserting a screwdriver in the
3. To mount to a junction box - Drill out the appropriate
4. To mount to conduit – Cut out the U shaped knockout on
5. Once the backplate is secured, the housing can be held in
6. Connect the incoming wires to the fixture's power supply
7. Connect the battery to the PCB. See schematic for detail.
8. Snap the cover onto the backplate.
9. Energize AC supply. The test button should illuminate, and
10. Adjust the heads as needed.
SURE-LITES
WARNING
the emergency light is to be installed.
two slots at the bottom of the unit, then tipping the cover
up off of the backplate.
mounting pattern and the wire pass hole in the backplate
to fit the J-box being used.
the cover using snips, then attach the 1/2" conduit hub to
the backplate.
place during installation using the EZ Hang feature. (see
Fig. 1)
wires using the wire nuts provided. Connect the white
wire to neutral. If using 120V, connect the black wire to the
hot lead. If using 277V, connect the orange wire to the hot
lead. Cap the unused lead. Secure the emergency light
to the wall and/or junction box using installer supplied
hardware.
LED heads will illuminate briefly when the test button is
pushed.
INS #
