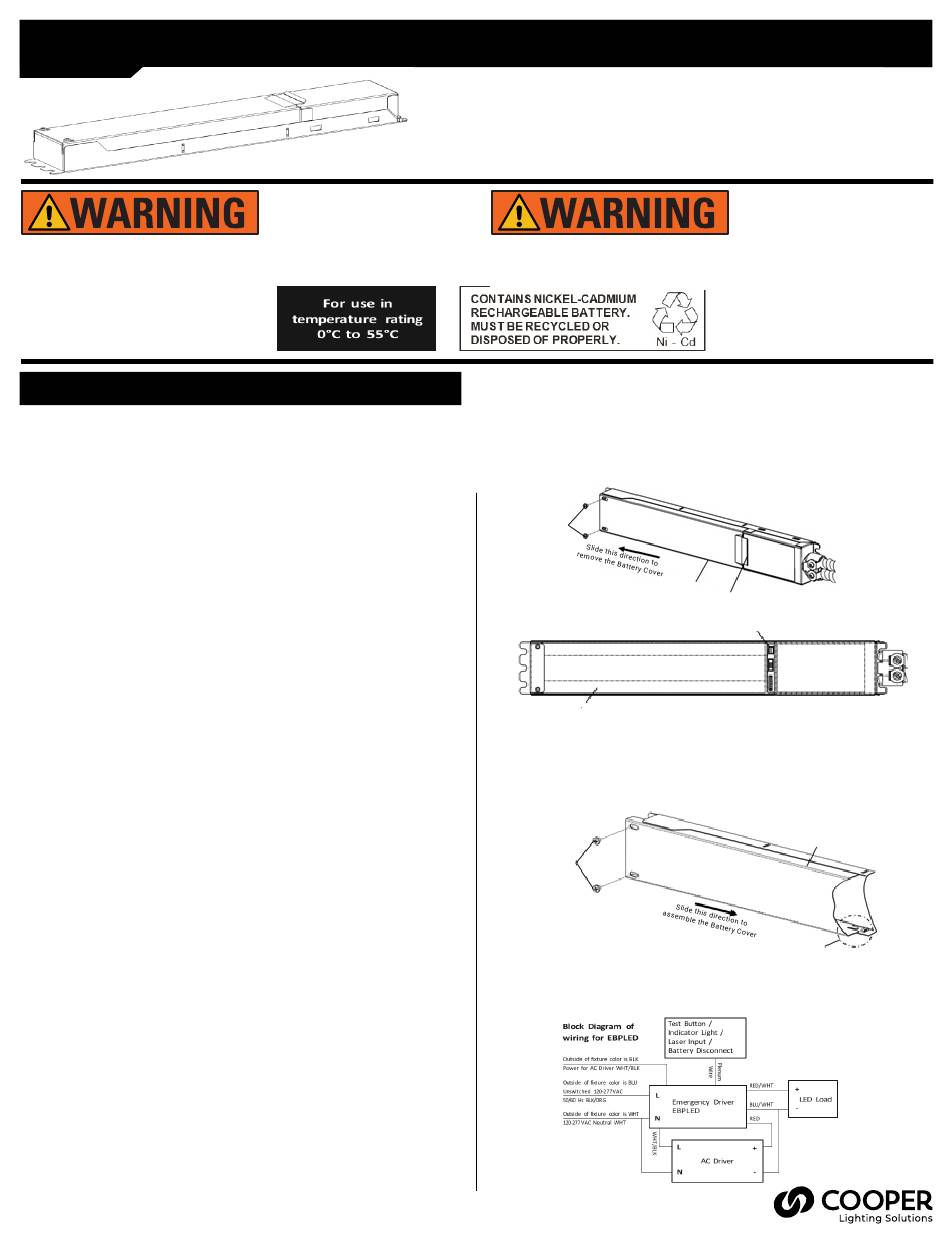

Cooper Lighting Solutions Sure-Lites Instructions

Sure-Lites
Risk of Fire/Electric Shock
If not qualified, consult an electrician.
ENGLISH
Important Safeguards
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD
ALWAYS BE OBSERVED INCLUDING THE FOLLOWING
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use outdoors.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at adequate heights to prevent
tampering by unauthorized personnel.
5. The use of accessory equipment not recommended by Cooper Lighting Solutions
may cause an unsafe condition and will void the warranty.
6. Do not use this equipment for other than its intended purpose.
7. Not for use with sealed and gasketed fixtures.
8. SAVE THESE INSTRUCTIONS.
NOTES:
1. Make sure all the connections are in accordance with the National Electrical Code and
any local regulations.
2. To reduce the risk of electrical shock, disconnect both normal and emergency power
supplies and the test button indicator light (which disconnects the battery) before
servicing. Ensure EZ Key (enclosed) is securely in place to disconnect the existing
battery.
3. This product is for use in indoor fixtures only. Do NOT use near heated air handling
outlets, wet locations or hazardous locations.
4. All maintenance should be performed by qualified service personnel.
5. Included in the content of this package are the replacement battery (QTY 1) and
the EZ Key (QTY 1).
WHEN DOES YOUR EBP REQUIRE BATTERY REPLACEMENT?
It's important to check the battery condition of the Sure-Lites LED Emergency Battery Pack
(EBP) regularly for optimal performance.
When AC power fails, the Sure-Lites EBP maintains illumination of the LED fixture for a
minimum of 90 minutes. If the LED fixture doesn't illuminate for the complete 90 minutes,
then the EBP requires battery replacement.
The EBP can also indicate a battery fault with a two red LED blinks on the test button
indication Light (TBIL).
Instructions to Replace the Battery on the 14W Surelites LED Emergency Battery Packs
Questions? 1-800-334-6871 ConsumerProducts@cooperlighting.com
EBPLEDSD14W
Instruction Manual / Manuel d'instructions/ Instrucciones
Risk of Electric Shock
Disconnect power at fuse or circuit breaker before installing or servicing
Battery Replacement Instructions
1. Switch Off the AC Power Lines to the LED Fixture Assembly which connects to the
Sure-Lites EBP.
2. Insert the EZ Key into the test button to disconnect the battery.
3. Remove the two mounting screws on the battery cover as shown below.
4. Dismount the battery cover by sliding it away from the conduit cables.
Mounting
Screws
5. Unplug the two-pin connector as shown below.
Plug to connect the Two Pin Connector
Battery Battery Cover not Shown for Clarity
6. Replace the old battery and connect to the two-pin connector which comes from the
wire of the new battery to the existing two-pin connector plug.
7. Assemble the battery cover back by sliding it towards the conduit cables to lock its
position though the latch arrangement shown below, mount the two existing mounting
screws back to complete the assembly.
Mounting
Screws
Cut-Section View
(SOME COMPONENTS NOT SHOWN FOR CLAIRTY)
8. Install the EBP back using the necessary hardware.
9. Make sure that the wiring of the EBP, LED load, AC driver and AC Power matches the
below block diagram.
1
Battery Cover
Lever
Battery Cover
Latch
Arrangement
