Cooper Lighting Solutions ephesus LUMAVISION Installation Instructions

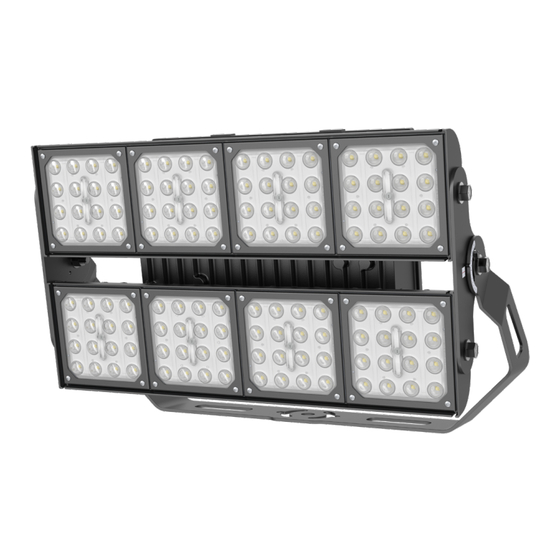

LUMAVISION
Installation Instructions
Before You Begin
Read and understand this entire manual and any additional site-specific installation documents before attempting
to assemble, install, or operate the luminaire. If you have any questions regarding the product or installation, contact
Cooper Lighting Customer Service at 1-800-573-3600.
Safety
Follow all safety items outlined here as well as any local safety procedures.
1. All electrical work must conform to National Electrical Code (NFPA 70), IEEE Emerald book, and all applicable
local codes and ordinances.
2. Verify the capacity and integrity of existing power distribution system and correct branch circuit voltage before
beginning installation.
3. Verify the structural capacity and safety of all facility/venue/pole supports and mounting apparatus before
installation. See fixture specification sheet for weight and wind loading data.
4. In harsh settings where the system is subjected to factors such as extreme temperatures, high corrosion,
hurricanes, or lightning, always follow local codes and additional protocols to ensure the cabling and other
system components can withstand the environmental stress for the life of the system.
5. DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire, internal wiring, or fixture
mounting features. Opening or modifying the luminaire or bracket will void the warranty.
6. Use Personal Protective Equipment including hardhats, safety glasses, reflective vests, electrical safety gloves,
fall protection equipment, and safety toe boots during installation, operation, and maintenance of luminaire.
7. Verify compliance with local standards to prevent access to the area below where installation activities are
occurring to prevent injury from accidental drops of fixtures, tools or hardware.
Storage
Store luminaires in a clean, dry place, protected from dirt, water, and sunlight prior to installation. See Table 1 for
required storage and operating conditions:
Storage Temperature
-40°C to +75°C (-40°F to 167°F)
Operating Temperature
-40°C to +40°C (-40°F to 104°F)
Table 1. Storage and Operating Conditions
1
Humidity
5% to 95% non-condensing
