WARNING: READ ALL INSTRUCTION BEFORE USE. THIS ENCLOSURE IS DESIGNED TO BE

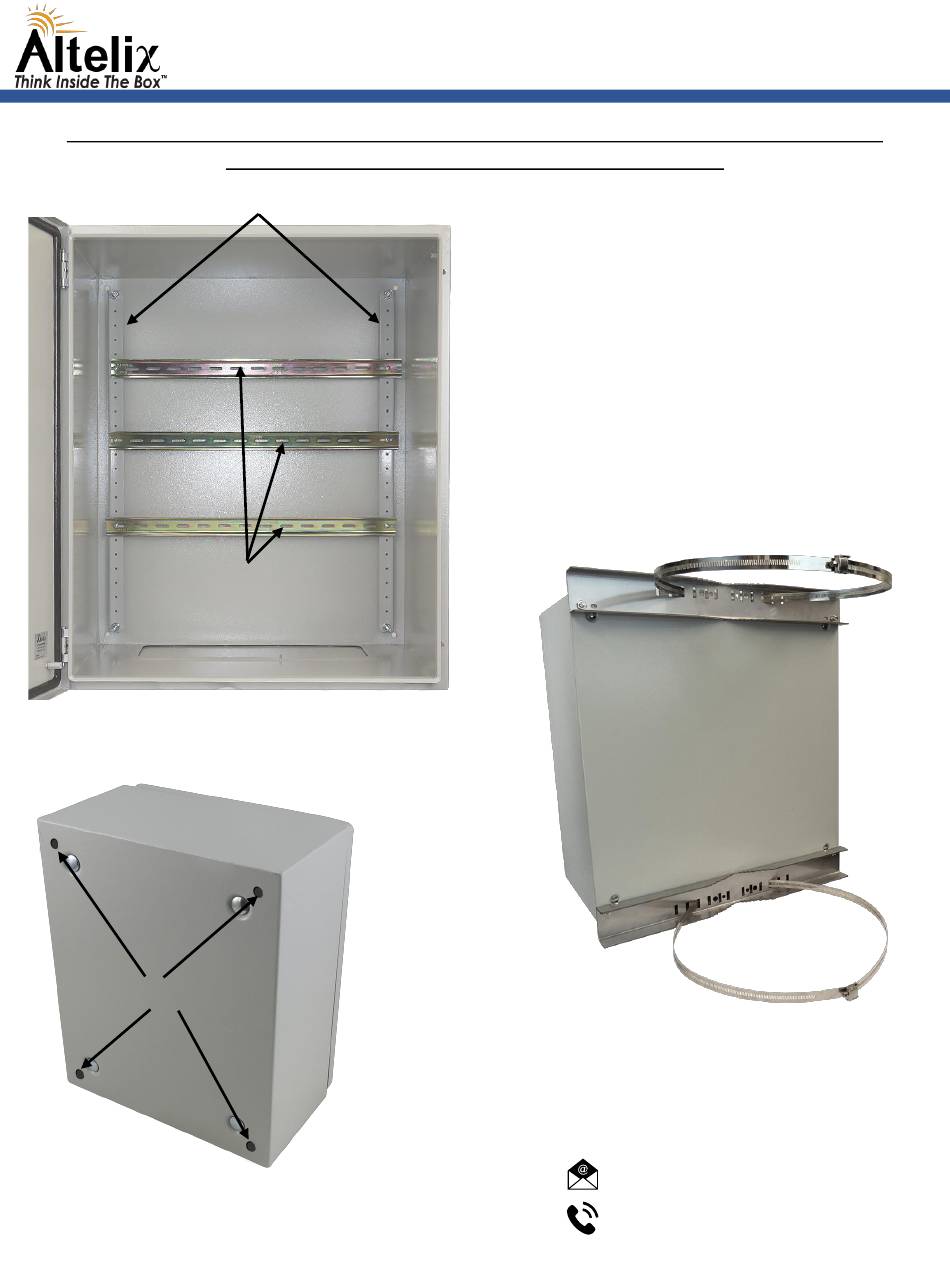

DIN Rail Mounting Brackets
35mm DIN Rails
Enclosure Interior
Mounting:
For wall mounting (4) 5/16" (8mm) diameter holes
are provided on the rear of the enclosure.
Mounting Holes
IS0224 Rev A 04/18/24
INSTALLED BY A TRAINED PROFESSIONAL INSTALLER.
Got Questions?
We are here to help.
Contact us at:
Installation Guide
NS282416-DIN and NS322416-DIN Series
Step 1:
Install the (2) DIN Rail Mounting Brackets onto
the (4) threaded posts as shown. Then secure
using the (4) serrated nuts included in the kit.
Step 2:
The (3) 35mm DIN Rails can now be attached to
any of the locations in the DIN Rail Mounting
Brackets using the supplied screws as shown.
For pole mounting, the optional NMHS & NMHX
Series pole mount kits are available from Altelix.
sales@altelix.com
USA & Canada Customers: 866-660-9434
International Customers: +1 561-660-9434
