Altelix NS121006-DIN Installation Manual

WARNING: READ ALL INSTRUCTION BEFORE USE. THIS ENCLOSURE IS DESIGNED TO BE

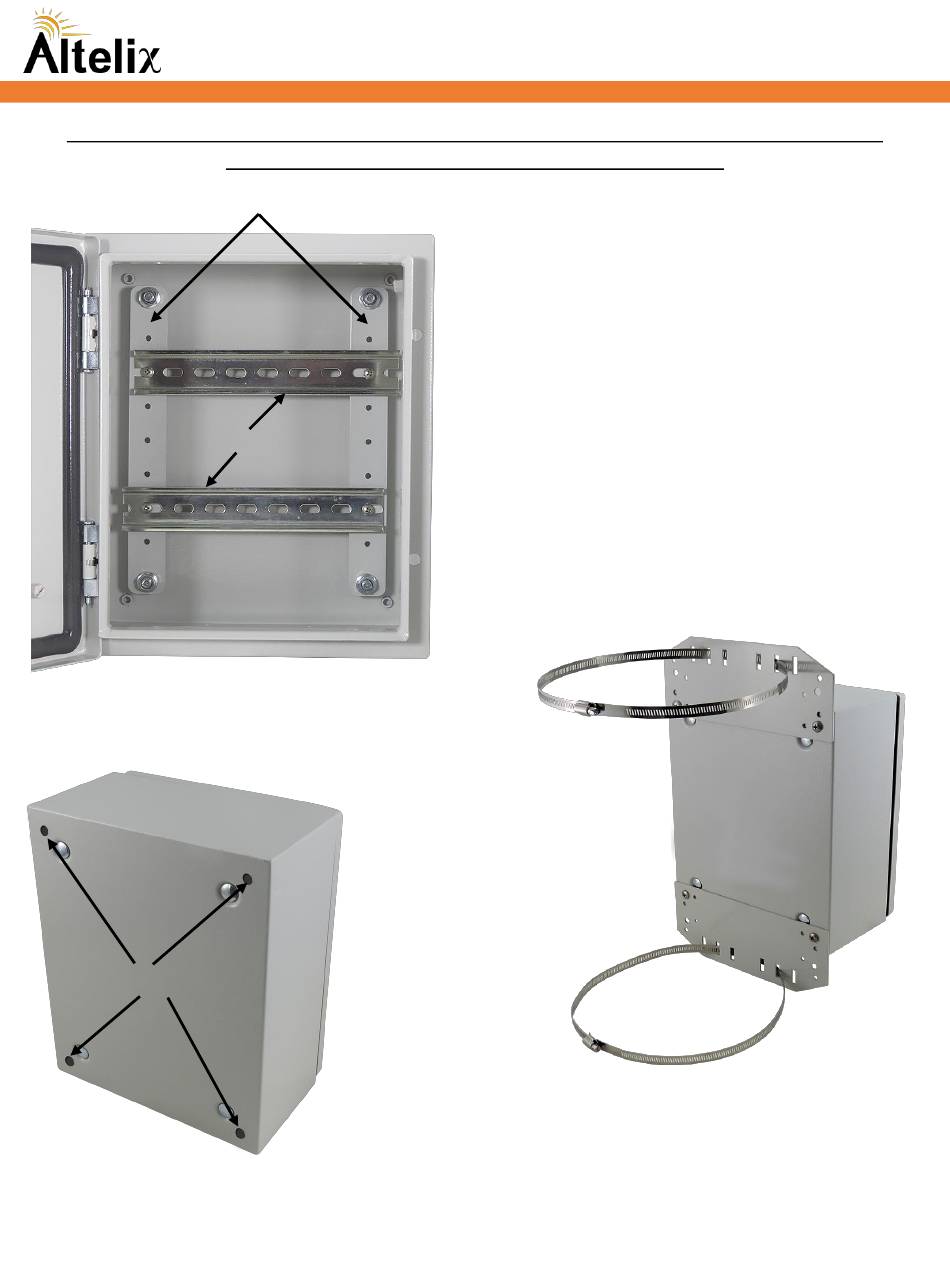

DIN Rail Mounting Brackets

Enclosure Interior

Mounting:
For wall mounting (4) 5/16" (8mm) diameter holes
are provided on the rear of the enclosure.
Mounting Holes
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0111 Rev B 07/08/19
INSTALLED BY A TRAINED PROFESSIONAL INSTALLER.

35mm DIN Rails

Step 1:
Install the (2) DIN Rail Mounting Brackets onto
the (4) threaded posts as shown. Then secure
using the (4) serrated nuts included in the kit.
Step 2:
The (2) 35mm DIN Rails can now be attached to
any of the 7 locations in the DIN Rail Mounting
Brackets using the supplied (4) screws as shown.
For pole mounting, the optional NMKS-S250-08 &
NMKX-S250-08 pole mount kits are available
from Altelix.
NS121006-DIN
Installation Guide
