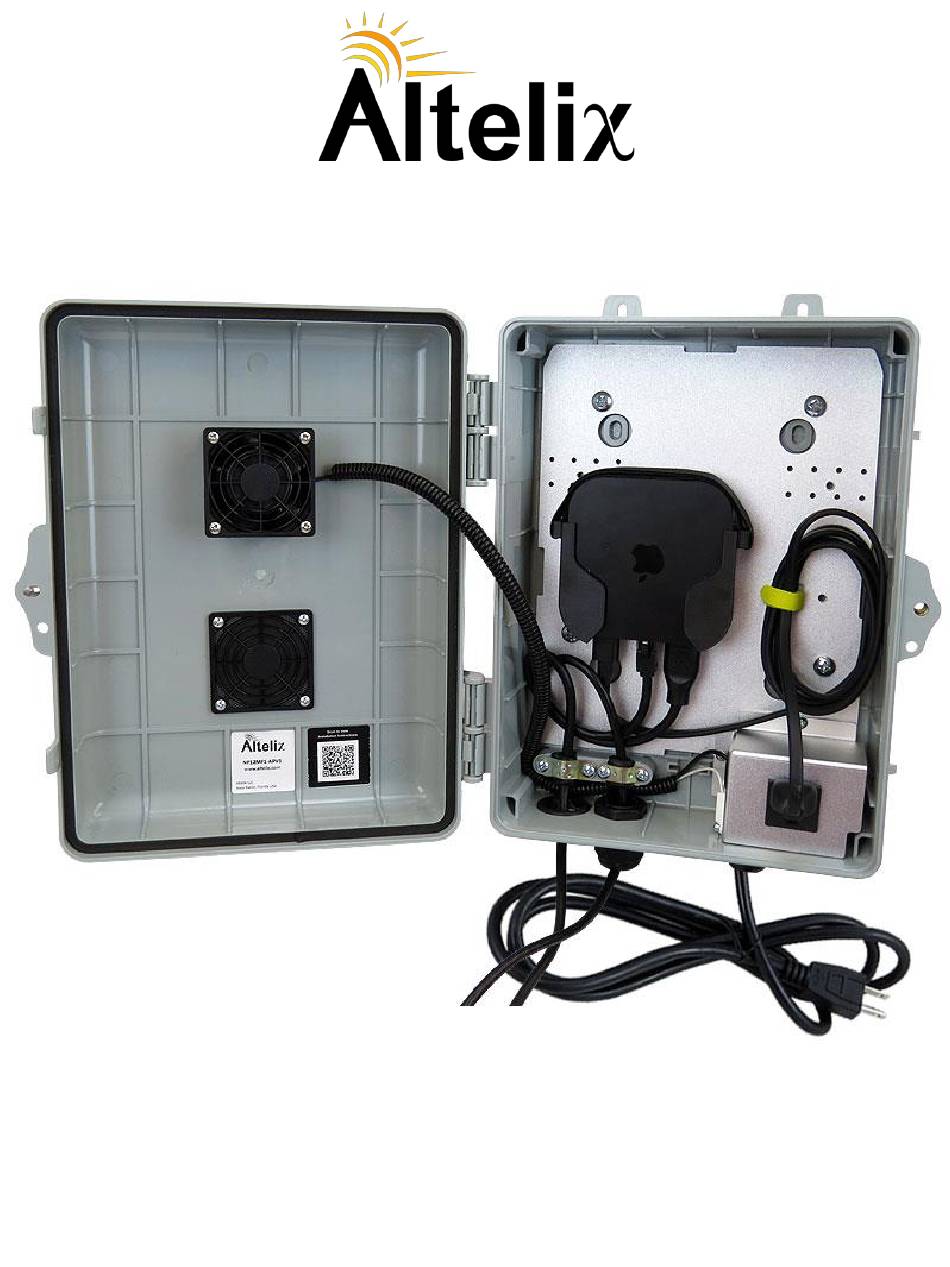

NP12FA1-APV1
Installation Guide
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0197 Rev A 06/12/23
Apple TV® is a trademark or registered trademark of Apple, Inc.
Advertisement
Related Manuals for Altelix NP12FA1-APV1
Summary of Contents for Altelix NP12FA1-APV1
- Page 1 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information IS0197 Rev A 06/12/23 Apple TV®...
- Page 2 NP12FA1-APV1 Installation Guide Page-1 Installing the Apple TV The NP12FA1-APV1 features a cradle type mount specifically designed to secure the Apple TV inside the enclosure. 1. Slide the Apple TV into the mount as shown. Apple TV Mount 2. (Optional Step) For installations subject to vibrations, an optional hook and loop strap is provided to secure the Apple TV in the mounting cradle.
- Page 3 NP12FA1-APV1 Installation Guide Page-2 Connecting the Apple TV A cable grommet and cable gland are provided on the enclosure to allow HDMI and Ethernet cables (not included) to be connected to the Apple TV. Not Use Cable Gland Pre-Wired Enclosure...
- Page 4 NP12FA1-APV1 Installation Guide Page-3 5. Once the HDMI and Ethernet cables are connected to the Apple TV, secure both cables using the cable clamp provided on the enclosure. To prevent damaging cables, do not over-tighten clamp. Cable Management Strap Cable Clamp 6.
- Page 5 NP12FA1-APV1 Installation Guide Page-4 Wall Mounting the NP12FA1-APV1 To wall mount the NP12FA1-APV1 enclosure, (3) external mounting tabs are provided on the rear of the enclosure. For better security, it can also be mounted using the (4) internal mounting feet.
- Page 6 NP12F1-APV1 Installation Guide Page-5 Using Internal Mounting Feet 1. Using a ¼” drill bit, drill (4) holes through the center of the mounting feet in the locations shown. Inside of Enclosure (Equipment plate not shown for clarity) Mounting Feet Drill Locations Mounting the Enclosure 2.
-
Page 7: Mounting Hole Locations
NP12FA1-APV1 Installation Guide Page-6 Mounting Hole Locations IS0197 Rev A 06/12/23... - Page 8 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information...
