Altelix NS241610-DIN Installation Manual

WARNING: READ ALL INSTRUCTION BEFORE USE. THIS ENCLOSURE IS DESIGNED TO BE

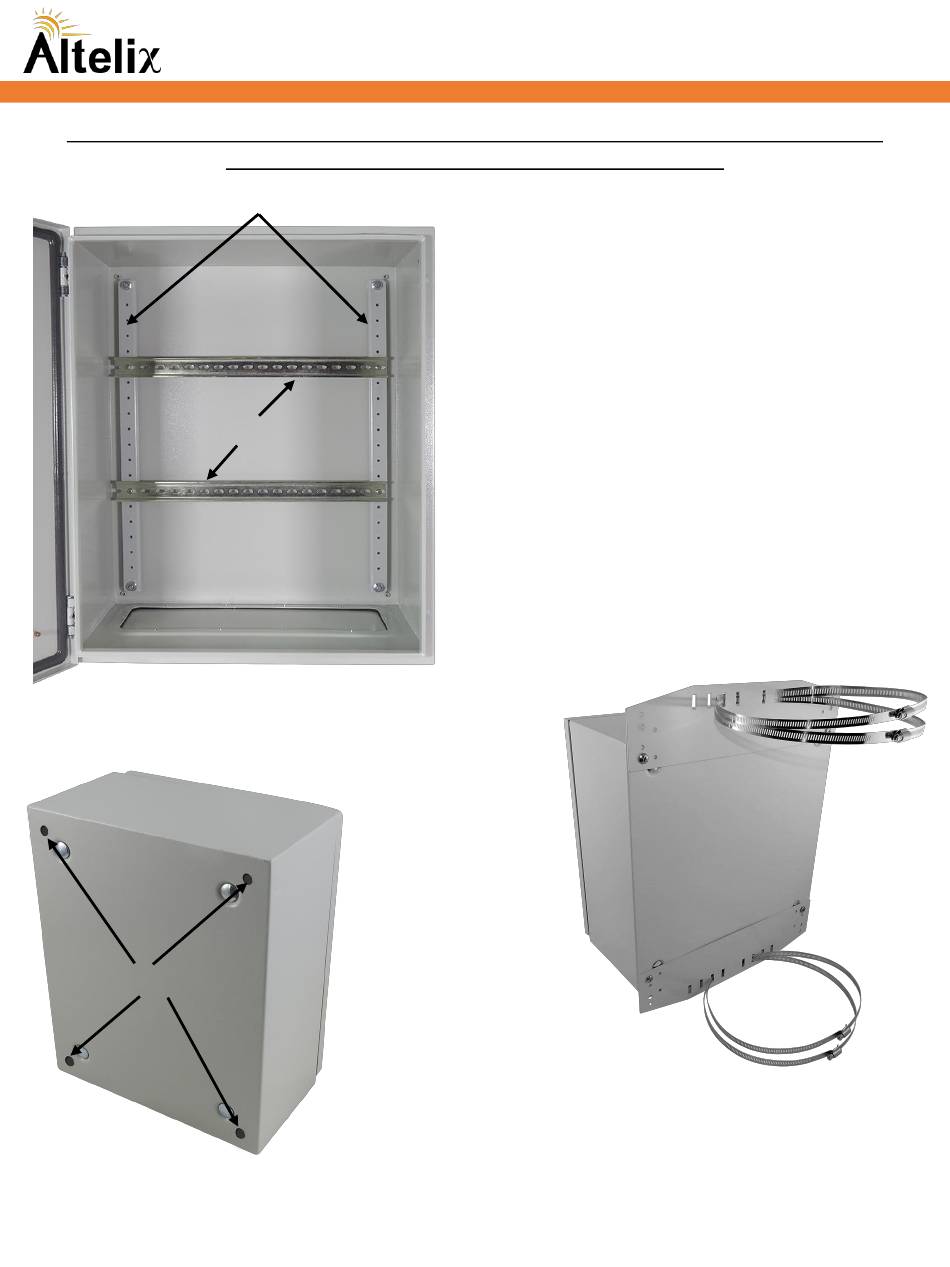

DIN Rail Mounting Brackets

Enclosure Interior

Mounting:

For wall mounting (4) 5/16" (8mm) diameter holes
are provided on the rear of the enclosure.

Mounting Holes

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0137 Rev B 01/22/20
INSTALLED BY A TRAINED PROFESSIONAL INSTALLER.

35mm DIN Rails

Installation Guide
NS241610-DIN, NS242412-DIN & NS242416-DIN
Step 1:
Install the (2) DIN Rail Mounting Brackets onto
the (4) threaded posts as shown. Then secure
using the (4) serrated nuts included in the kit.
Step 2:
The (2) 35mm DIN Rails can now be attached to
any of the 18 locations in the DIN Rail Mounting
Brackets using the supplied (4) screws as shown.
For pole mounting, the optional NMKS & NMKX
Series pole mount kits are available from Altelix.
