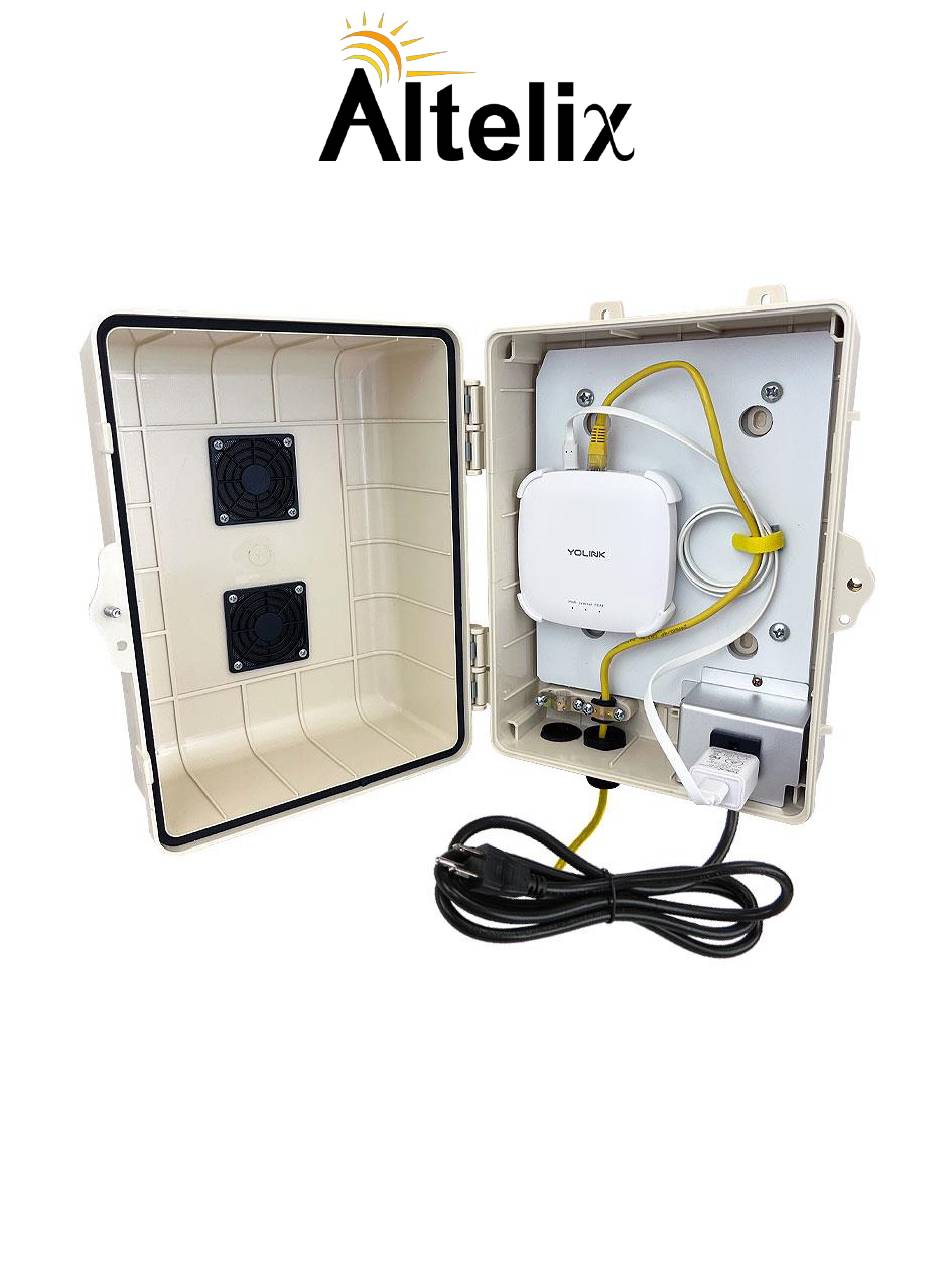

NP12VA1C-YLK1
Installation Guide
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0216 Rev A 08/31/23
YoLink® is a trademark or registered trademark of YoSmart, Inc.
Advertisement
Table of Contents
Related Manuals for Altelix NP12VA1C-YLK1
Summary of Contents for Altelix NP12VA1C-YLK1
- Page 1 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information IS0216 Rev A 08/31/23 YoLink®...
- Page 2 NP12VA1C-YLK1 Installation Guide Page-1 Installing the YoLink Hub The NP12VA1C-YLK1 features a cradle type mount specifically designed to secure the YoLink Hub inside the enclosure. 1. Pop the YoLink Hub into the mount as shown. YoLink Hub Mount IS0216 Rev A 08/31/23...
- Page 3 NP12VA1C-YLK1 Installation Guide Page-2 Connecting the YoLink Hub A cable gland is provided on the enclosure to allow Ethernet cables (not included) to be connected to the YoLink Hub. Not Used Pre-Wired Enclosure Cable Gland Power Cord Used for Ethernet...
- Page 4 NP12VA1C-YLK1 Installation Guide Page-3 3. Once the Ethernet cables are connected to the YoLink Hub, secure cables using the cable clamp provided on the enclosure. To prevent damaging cables, do not over-tighten clamp. Cable Management Strap 4. Connect the YoLink Hub power cord to the internal 120VAC power outlet.
- Page 5 NP12VA1C-YLK1 Installation Guide Page-4 Wall Mounting the NP12VE1-YLK1 To wall mount the NP12FA1-APV1 enclosure, (3) external mounting tabs are provided on the rear of the enclosure. For better security, it can also be mounted using the (4) internal mounting feet.
- Page 6 NP12VA1C-YLK1 Installation Guide Page-5 Using Internal Mounting Feet 1. Using a ¼” drill bit, drill (4) holes through the center of the mounting feet in the locations shown. Inside of Enclosure (Equipment plate not shown for clarity) Mounting Feet Drill Locations Mounting the Enclosure 2.
- Page 7 NP12VA1C-YLK1 Installation Guide Page-6 Mounting Hole Locations IS0216 Rev A 08/31/23...
- Page 8 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information...
