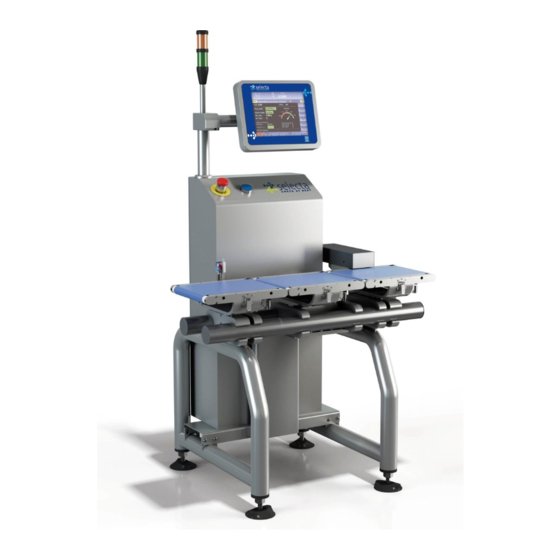

SELECTA
USE AND MAINTENANCE MANUAL
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
CODE N°81320469
VER.1.0 DATE: 27/07/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SELECTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bilanciai SELECTA

Summary of Contents for Bilanciai SELECTA

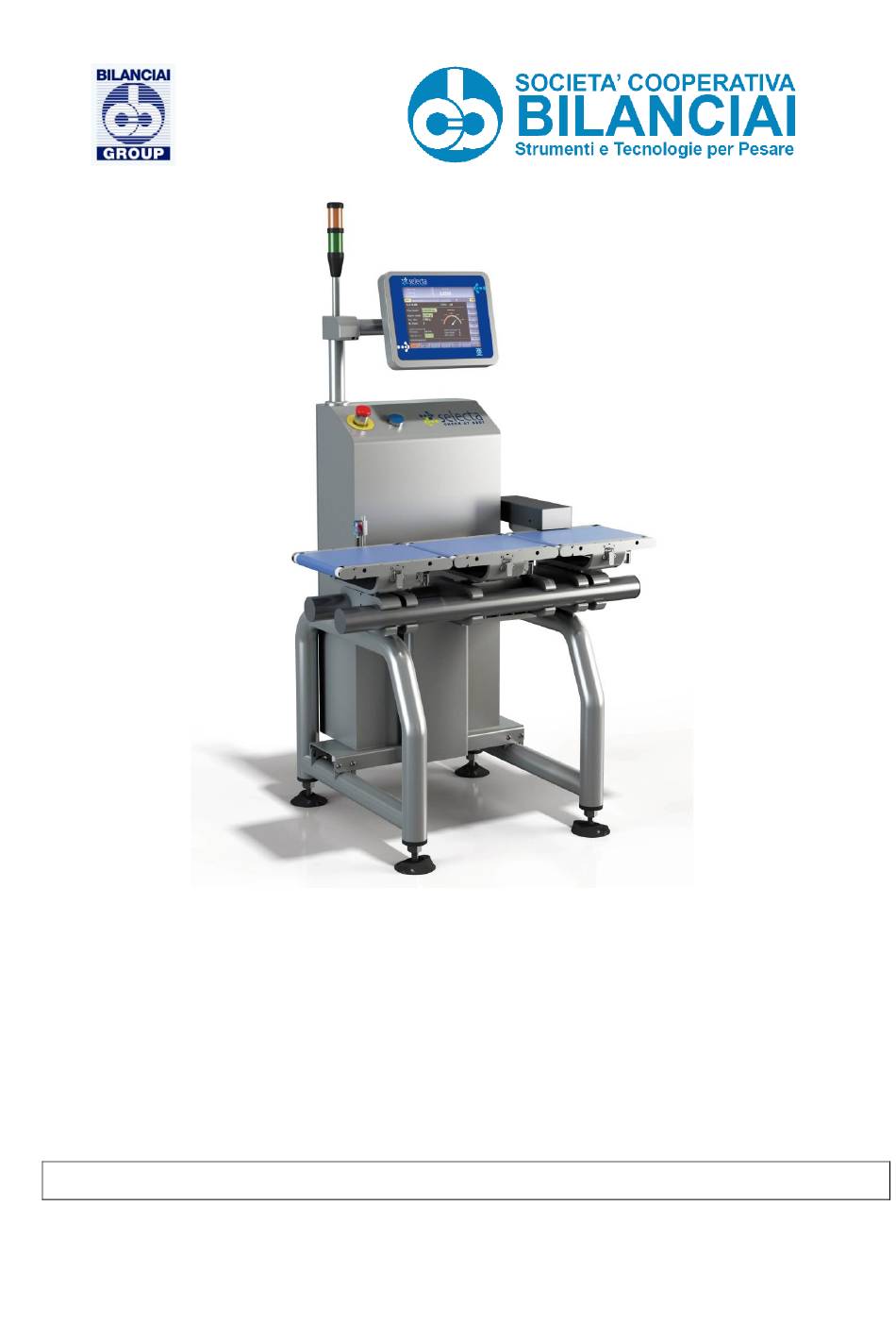

  • Page 1 SELECTA USE AND MAINTENANCE MANUAL TRANSLATION OF THE ORIGINAL INSTRUCTIONS CODE N°81320469 VER.1.0 DATE: 27/07/2023...
