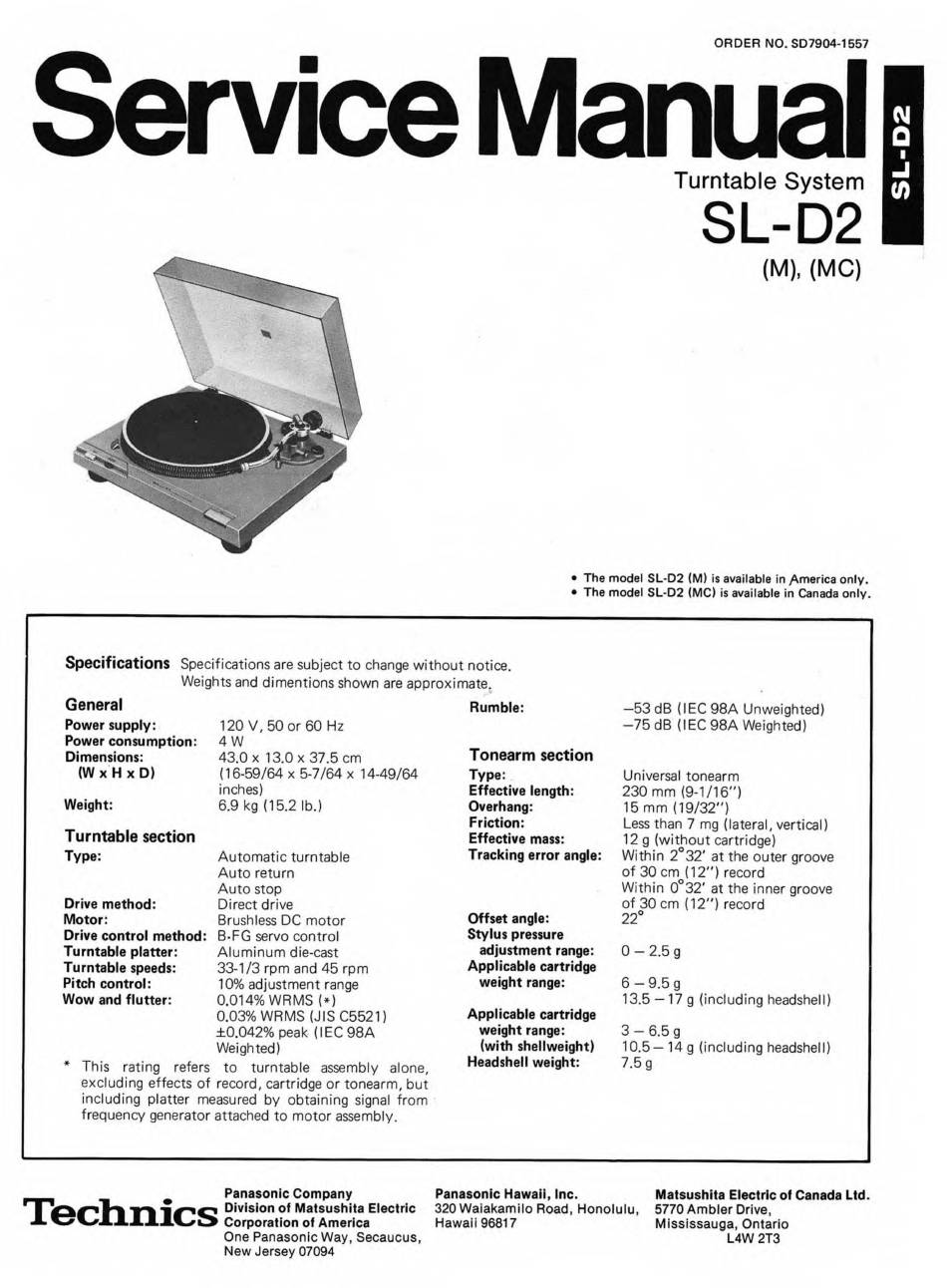

ORDER NO. SD7904-1557

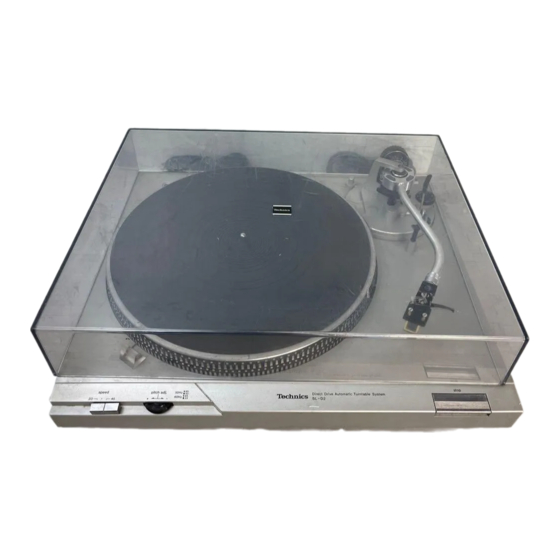

Turntable System
• The model SL-D2 (M) is available in ^America only.
• The model SL-D2 (MC) is available in Canada only.
Specifications
Specifications are subject to change without notice.
Weights and dimentions shown are approximate.
General
Rumble:
—53 dB (IEC 98A Unweighted)
Power supply:
120 V, 50 or 60 Hz
-75 dB (IEC 98A Weighted)
Power consumption:
4 W
Dimensions:
43.0 x 13.0 x 37.5 cm
Tonearm section
(W x H x D)
(16-59/64 x 5-7/64 x 14-49/64
Type:
Universal tonearm
inches)
Effective length:
230 mm (9-1/16")
Weight:
6.9 kg (15.2 lb.)
Overhang:
15 mm (19/32")
Friction:
Less than 7 mg (lateral, vertical)
Turntable section
Effective mass:
12 g (without cartridge)
Type:
Automatic turntable
Tracking error angle:
Within 2°32' at the outer groove
Auto return
of 30 crr>o(12") record
Auto stop
Within 0°32' at the inner groove
Drive method:
Direct drive
of 30 cm (12") record
Motor:
Brushless DC motor
Offset angle:
22°
Drive control method: B-FG servo control
Stylus pressure
Turntable platter:
Aluminum die-cast
adjustment range:
0 — 2.5 g
Turntable speeds:
33-1/3 rpm and 45 rpm
Applicable cartridge
Pitch control:
10% adjustment range
weight range:
6 — 9.5 g
Wow and flutter:
0.014% WRMS (*)
13.5 —17 g (including headshell)
0.03% WRMS (JISC5521)
Applicable cartridge
±0.042% peak (IEC98A
weight range:
3 - 6.5 g
Weighted)
(with shellweight)
10.5 — 14 g (including headshell)
* This rating
refers to turntable assembly alone,
Headshell weight:
7.5 g
excluding effects of record, cartridge or tonearm, but
including platter measured by obtaining signal from
frequency generator attached to motor assembly.
Panasonic Company
Division of Matsushita Electric
Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
Panasonic Hawaii, Inc.
320 Waiakamilo Road, Honolulu,
Hawaii 96817
Matsushita Electric of Canada Ltd.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
