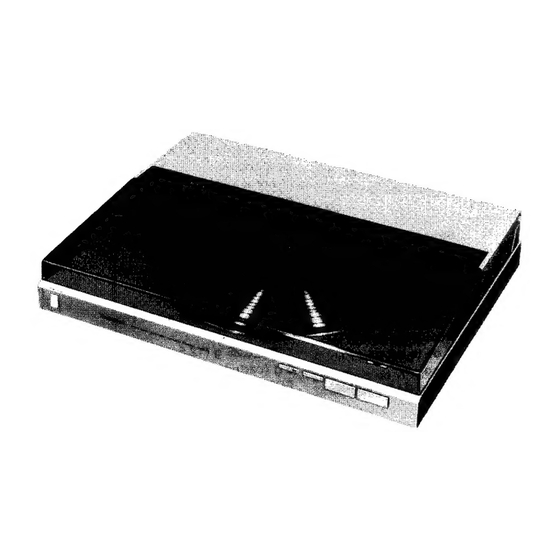

Direct drive automatic turntable system

Advertisement

Quick Links

ORDER
NO. SD82022117C2

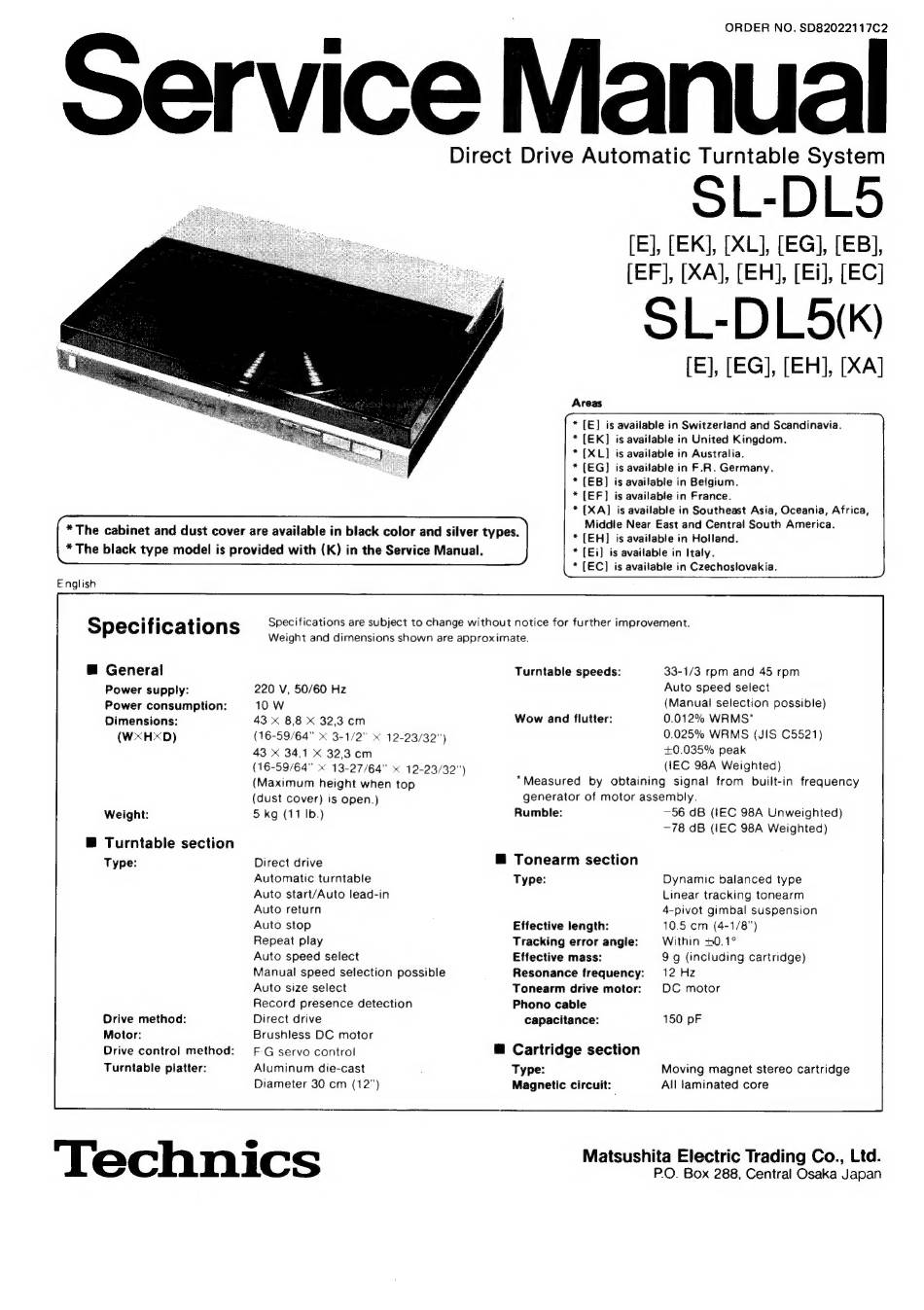

Service Manual
Direct Drive Automatic Turntable System
OL-DLS
ee nee [XL], [EG], i BI,
[EF], [XA], [EH], [Ei], [EC]
SL- DLS (K)
, [EH], [XA]
Areas
(+ [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XL] is available in Australia.
* [EG] is available in F.R. Germany.
* [EB] is available in Belgium.
* [EF] is available in France.
* [XA]
is available in Southeast
Asia, Oceania, Africa,
4
.
F
Middle Near East and Central South America.
*The cabinet and dust cover are available in black color and silver types.
* [EH] is available in Holland.
es [EC] is available in Czechoslovakia.
English
if,
H
Specifications are subject to change without notice for further improvement.
Specifications
°°
oe
ee
:
Weight and dimensions shown are approximate.
@
General
Turntable speeds:
33-1/3 rpm and 45 rpm
Power supply:
220 V, 50/60 Hz
Auto speed select
Power consumption:
10 W
(Manual selection possible)
Dimensions:
43 X 8,8 X 32,3 cm
Wow and flutter:
0.012% WRMS"*
(WXHXD)
(16-59/64""
3-1/2" x 12-23/32")
0.025% WRMS (JIS C5521)
43 X 34,1 X 32,3 cm
+0.035% peak
(16-59/64" * 13-27/64" « 12-23/32")
(IEC 98A Weighted)
(Maximum
height when top
*Measured
by obtaining
signal
from
built-in
frequency
(dust cover) is open.)
generator of motor assembly.
Weight:
5 kg (11 Ib.)
Rumble:
—56 dB (IEC 98A Unweighted)
—78 dB (IEC 98A Weighted)
Turntable section
Type:
Direct drive
Tonearm section
Automatic turntable
Type:
Dynamic balanced type
Auto start/Auto lead-in
Linear tracking tonearm
Auto return
4-pivot gimbal suspension
Auto stop
Effective length:
10.5 cm (4-1/8)
Repeat play
Tracking error angle:
Within +40.1°
Auto speed select
Effective mass:
9 g (including cartridge)
Manual speed selection possible
Resonance frequency:
12 Hz
Auto size select
Tonearm drive motor:
DC motor
Record presence detection
Phono cable
Drive method:
Direct drive
capacitance:
150 pF
Motor:
Brushless DC motor
Drive control method: — F-G servo control
Cartridge section
Turntable platter:
Aluminum
die-cast
Type:
Moving magnet stereo cartridge
Diameter 30 cm (12")
Magnetic circuit:
All laminated core
