MXL051/UPGRADE
Installation & User Instructions
UK contact:
Helpline:
+44 (0)1553 811000
Email:
support@maxview.co.uk
Web:
www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111444 Iss 3
Maxview Roam X Powered by
Roam X Upgrade Kit
Maxview Address:
Maxview Ltd, Garage Lane, Setchey, King's Lynn, Norfolk. PE33 0AT. UK
We have partnered up with one of the largest
suppliers of Wi-Fi products worldwide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXVIEW MXL051/UPGRADE and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika MAXVIEW MXL051/UPGRADE

Summary of Contents for Teltonika MAXVIEW MXL051/UPGRADE

  • Page 1 Roam X Upgrade Kit MXL051/UPGRADE Installation & User Instructions UK contact: Maxview Address: Helpline: +44 (0)1553 811000 Maxview Ltd, Garage Lane, Setchey, King’s Lynn, Norfolk. PE33 0AT. UK Email: support@maxview.co.uk Web: www.maxview.co.uk Maxview reserve the right to change specifications without prior notice 9111444 Iss 3 We have partnered up with one of the largest Maxview Roam X Powered by...

  • Page 2: Table Of Contents

    Introduction Thank you for purchasing this product, should you have any difficulty using your Roam X Upgrade Kit please contact our friendly Customer Helpline on +44 (0)1553 811000 or email support@maxview.co.uk. Contents Record your Purchase Router - Changing the Primary Internet Source Product Contents from 3G/4G to Wi-Fi Installation Instructions...

  • Page 3: Product Contents

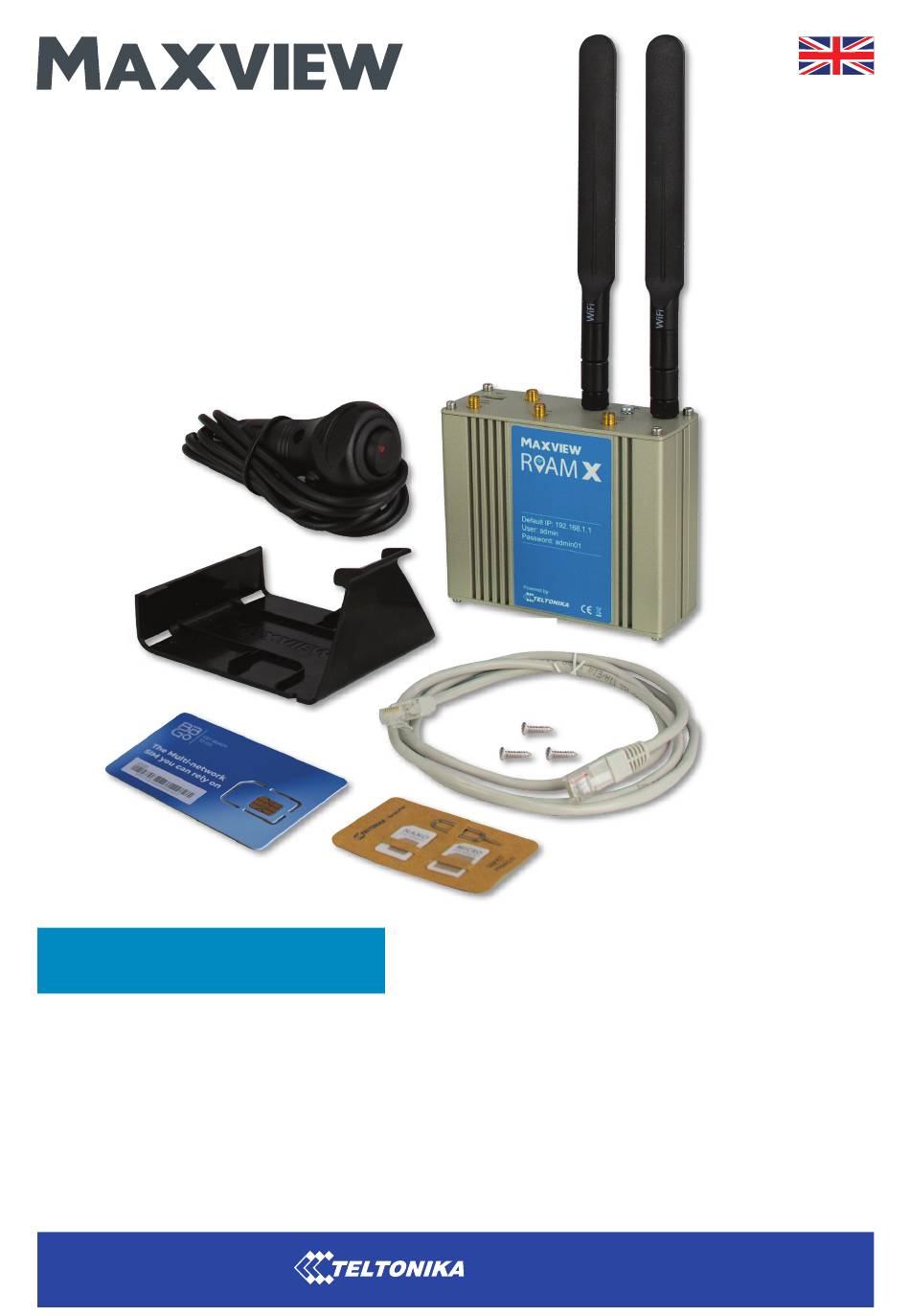

    Product Contents 3G/4G Wi-Fi Router 12V Vehicle Power Supply Router Mounting Bracket and Fixing Kit 1.5m Ethernet Cable Internal Wi-Fi Antennas SIM Adaptors No. 6 Screws x 2 Broadband Go SIM Card Choosing a Service Provider To use the Maxview Roam X, you will need a suitable data SIM card (sold separately) The Maxview Roam X is unlocked, so you can use any service provider.

  • Page 4: Inserting Sim Card

    Inserting Sim Card Remove the supplied pin located at the bottom of Use this pin to firmly press on SIM eject button. the router. This is located next to the SIM slot. It is not necessary to apply force to the SIM tray itself. This may damage the router.

  • Page 5: Router Installation

    Router Installation Position router bracket and mark hole positions. Attach the antenna coaxial cables to the bottom 2 Depending on material, drill a pilot hole or use a connectors. These are marked ‘mobile’. Note the order bradawl. Mount the router mounting bracket to the of the cables does not matter.

  • Page 6: Get To Know Your Router

    Get to know your Router Mobile signal strength Mobile network Front View indication LEDs type LEDs WAN type LEDs Holders SIM needle Power Socket LAN Ethernet Wan Ethernet Power Reset Button Ports Port Back View Mobile AUX Mobile MAIN GNSS Attenna Antenna Connection Antenna Connection Connector...

  • Page 7: Getting Online

    Getting Online Now your Roam X is installed and you have inserted the SIM card, it’s time to get connected. To do this, you will need to be using a device which can connect to a Wi-Fi network such as a smart phone, Smart TV, tablet or laptop.
  • Page 8 Option B: QR Code If your device is able to read QR codes (Android 9 or newer and IOS 11 or newer), simply point your device camera at the QR code on the back on the router. When prompted, select ‘join’. Your device will automatically connect to the Roam X Router.

  • Page 9: Factory Reset

    Connecting to a device using an Ethernet Cable If your device does not support Wi-Fi or you would like to maximise the reliability of your connection, you can access the Roam X internet connection by connecting the Ethernet Cable between the LAN ports on the router and your device.
  • Page 10 Router Advanced Functions and Changing Router Settings For most users changing these settings is not necessary. We only recommend accessing and changing settings in the Web User Interface if necessary and we do not recommend changing settings which have not been outlined in this booklet.

  • Page 11: Connecting To The Web User Interface

    Advanced Functions and Changing Router Settings All of the settings and functionality of the Roam X Router are changed using the Web User Interface. This can be accessed using a browser when your device is connected to the Roam Wi-Fi network. The Roam X Router is very powerful and there are many settings in here which can be adjusted to suit your requirements.
  • Page 12 When accessing the Web User Interface for the first time, you will be offered the chance to use the Set Up Wizard. This can be used to set up the router’s most relevant parameters, such as changing the hotspot username and password. Competent users can navigate through other settings, however we recommend skipping the Set Up Wizard as it is not strictly necessary to change any of these settings.

  • Page 13: Logging Out Of The Web User Interface

    Logging out of the Web User Interface Once you have finished using the Web User Interface, you should log out. We recommend doing this every time you have finished using the Web User Interface. Select ‘Log Out’ in the top right hand corner and Once you have logged out you can now close the confirm you wish to log out.
  • Page 14 Router Changing the Primary Internet Source from 3G/4G to Wi-Fi Did you know? The functions in this section can be completed easier and faster using the Maxview Roam X App. See the Roam X App instruction manual for more information.
  • Page 15 Changing the Primary Internet Source from 3G/4G to Wi-Fi In some instances during your travels, you will be in a location where there will be a usable Wi-Fi connection which can be used as a source, instead of 3G/4G. This means you can access the internet using the same Roam X hotspot, however the source of the connection will be from another Wi-Fi hotspot.
  • Page 16 Next the wireless connection you wish to connect to click ‘Join Network” Enter the password for the network and network name if you choose to do so. Then click ‘Submit’ Hit the enable button to turn on.
  • Page 17 Your router will now connect to your chosen wifi network. However the connection your router uses for to connect to the internet will depend on your WAN configuration setting, To change connection priority drag and drop each connection in the order desired. Then save and apply.

  • Page 18: Changing The Routers Lan Ip Address

    Changing the Routers LAN IP Address In some cases, the LAN IP Address of the Roam X Router will be the same as the source Wi-Fi IP address. If this is the case, using Wi-Fi as the internet source will not work. To fix this, we must change the LAN IP Address of the Roam X Router.
  • Page 19 Router Other Functions Did you know? The functions in this section can be completed easier and faster using the Maxview Roam X App. See the Roam X App instruction manual for more information.

  • Page 20: Managing And Removing Wi-Fi Connections

    Managing and Removing Wi-Fi Connections Navigate to ‘Network’ and then ‘Wireless’. From here, you can then view and manage the most recent Wi-Fi connection listed under the Wireless Station Mode heading. This includes updating the password or removing it completely if it is no longer uses The Router will store the details of the most recently used Wi-Fi connection only.
  • Page 21 You will then see a list of the Wireless Access Points (hotspots) the router is creating. As standard, this will be for 2.4GHz and one for 5GHz. Select ‘pencil icon’ on the RUT240_XXXX access point. You will now be transferred to the ‘Interface Configuration’ tab under the ‘General Set Up’ tab. In the ESSID box, input a new name (ESSID) for your router.

  • Page 22: Entering Sim Pin

    When the changes are complete, you will see You can now navigate to your device’s Wi-Fi a web browser error page and your device will no settings and view available Wi-Fi networks. The Roam longer be connected to the router. Because the Wi-Fi router hotspot will be displayed as your chosen name.
  • Page 23 To bring you the Roam X Router, we have partnered with Teltonika. Teltonika have a vast amount of information available for all function of the router and Web UI on their Wiki Support Site. This can be accessed at: https://wiki.teltonika.lt/view/RUT240...

  • Page 24: Router Firmware Update

    A list of the latest firmware changes and the associated features can be found at https://wiki.teltonika-networks.com/view/RUT240_Firmware_Downloads As long as the router has a reliable internet connection, the firmware update can be done from the Teltonika Web User Interface. The time it takes will depend on your connection speed, so we recommend using a fast connection to minimise the time required.

  • Page 25: Additional Information

    Additional Information General Safety Warnings Read these instructions carefully and become familiar with your Maxview product. Understand the application, limitations and any hazards involved with the installation and operation. Failure to follow all instructions may result in damage to your vehicle and/or serious injury. Maxview declines all responsibility in the event of incident or accident if they are due to a non observation of the installation instructions or the way the product is used.

  • Page 26: Maintenance

    Maintenance The Roam X has been designed to be maintenance and trouble free. For optimum signal strength, keep the cover clean from dirt, bugs, and other debris. Periodic washing of the top cover with mild soap and water is recommended. 1.

  • Page 27: Troubleshooting & Faq's

    8. Is there an easier way to change the settings for my router? Most router functionality can be controlled using the Teltonika App. 9. Does the Roam X work on 5G? The benefits of 5G to our customers are still limited due to the limited number of (mostly urban) areas where the technology is available.
  • Page 28 IOS 14 or newer highlight this with the ‘weak security’ message. In reality, this protocol remains secure and is the standard used by most routers in the marketplace today. The newer gold standard protocol is WPA3. Maxview are working with Teltonika to ensure this protocol is introduced when available.
  • Page 29 17. What are the lights on the side of the Roam X Router telling me? Basic use and diagnosis using the LED’s has been outlined below. Visit wiki.teltonika-networks.com/view/RUTX11_LEDs for a full list of the LED configurations and what these mean.

  • Page 30: Specifications

    19. What does the Maxview Roam X App do? The Maxview Roam X App is available free of charge to all customers who have purchased a Maxview Roam X. It is available to download from the Android Google Play and Apple App Stores. The Roam X App is designed to simplify some of the key functions of the Maxview Roam X including set up, changing the Roam X hotspot Wi-Fi name/password as well as switching between 3G/4G and Wi-Fi source.

  • Page 31: Certification And Environment

    Regulations 2023. The statement of compliance is prepared by the manufacturer. The full Statement of Compliance can be found at: www.maxview.co.uk/certifications. The Maxview Roam system uses a TELTONIKA NETWORKS UAB RUTX11 LTE router. Used Frequency Range of Built-In RF Module:...
  • Page 32 • Bluetooth LE: 9.62 dBm (EIRP) Standards Applied: TELTONIKA NETWORKS UAB have declared that the above product is in conformity with the relevant Community harmonisation: European Directive 2014/53/EU (RED). The conformity with the essential requirements has been demonstrated against the following harmonised standards: Test Report No.
