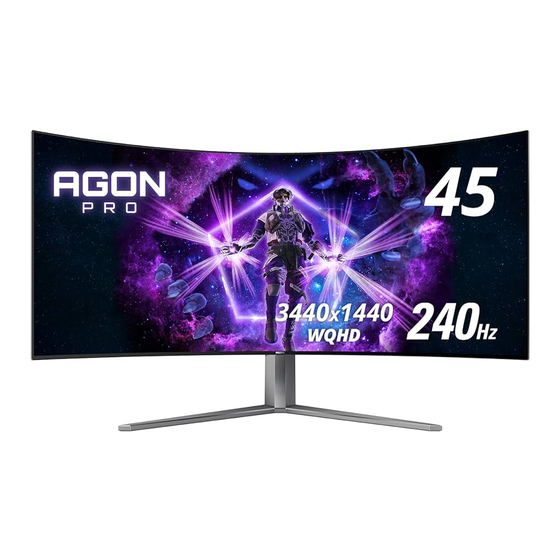

- Page 1 Based on the characteristics of the OLED product, OLED Monitor screen maintenance according to the requirements of the user instructions is recommended, so as to reduce the risk of generating image retention. User Manual AG456UCZD www.aoc.com ® 2023 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe national conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the OLED monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Bracket iron screws Screws Power Cable DP Cable HDMI Cable USB A-B Cable USB C Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove: Specification for base screw: M8*35 mm (effective thread 10 mm) -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 15°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor: 1. Power Switch 2. Power 3. HDMI1 4. HDMI2 5. DP 6. USB C 7. Earphone 8. USB3.2 Gen1 upstream 9. USB3.2 Gen1 downstream + fast chargingx1 USB3.2 Gen1 downstream x1 10. -
Page 12: Wall Mounting
H=2.0±0.1 - 0.5 Dk=8.0±0.2 Note: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Always contact manufacturer for wall-mount installation. 0° 90° -5° Display design may differ from those illustrated. - Page 13 1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. 2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
-
Page 14: Amd Freesync Premium Function
AMD Freesync Premium function 1. AMD Freesync Premium function is working with DP/HDMI/USB C. 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon RX Vega series • Radeon RX 500 series •... -
Page 15: G-Sync Compatible Function
G-SYNC Compatible function 1. G-SYNC Compatible function is working with DP 2. To enjoy the perfect gaming experience with G-SYNC, you need to purchase a Separate NVIDIA GPU card that supports G-SYNC. G-sync system requirements Desktop computer connected to G-SYNC monitor: Graphics cards supported: G-SYNC features require NVIDIA GeForce®... -
Page 16: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 17: Kvm Function
What is KVM? With KVM function, you can show two PCs, or two notebooks, or one PC and one notebook on one AOC monitor and control the two devices with one set of keyboard and mouse. Switch your control over your PC or notebook devices by choosing input signal source on “Input Select”... - Page 18 Extra Input Select Auto USB Selection Auto Orbit Resolution: 3840(H)x2160(V) SDR H.Frequency: 67 KHz V.Frequency: 30 Hz Exit Enter Select USB Selection Function Description Auto Auto selects USB C or USB Up depending on the input source. USB C Provides USB Hub function through Type-C cable. USB Up Provides USB Hub function through USB B cable.
-
Page 19: Screen Maintenance
Screen Maintenance To reduce the risk of image retention on the screen, regularly conduct the following maintenance. Not following these ins- tructions may void your warranty. • Avoid displaying a still image for extended periods. A still image refers to an image that does not change over time, such as a photograph. A still image may result in permanent damage to the OLED screen, causing the image to continue to appear when no longer actively being shown. - Page 20 nation functions regularly for best display performance. Maintenance cycle (EU only) You may run this function in one of the following ways: 1). From the OSD menu, manually turn on the image residue elimination function, and select “Yes” from the menu. During the maintenance cycle the screen will automatically turn off, and the power indicator will flash.
- Page 21 Maintenance cycle (NON EU) You may run this function in one of the following ways: 1). From the OSD menu, manually turn on the image residue elimination function, and select “Yes” from the menu. During the maintenance cycle the screen will automatically turn off, and the power indicator will flash.
-
Page 22: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 23: Description Of The Remote Control Buttons
Description of the remote control buttons Press to switch power on and off。 Change the signal input source. Mute。 Access the OSD menu。 Adjust the OSD options upwards。. Return to previous OSD level。 Confirm the OSD adjustment/ Access the OSD menu。 Access the OSD menu. -
Page 24: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 25 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 26: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Se�ng Color Setup PIP Se�ng Audio Light FX Extra Audio Light FX OSD Setup Enter Move Exit Enter Move Exit 1). Press the Menu-button to activate the OSD window. 2). -
Page 27: Game Setting
Game Setting Game Setting Game Mode Shadow Control Shadow Boost Game Color Sniper Scope AMD FreeSync Low Input Lag Frame Counter Exit Enter Select No optimization by Game Mode. For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). - Page 28 Shutting down the frame buffer can reduce input delay. Note: Low input delay is disabled by default and unadjust- able when the field frequency is less than 120 Hz; and it is Low Input lag On / Off enabled by default and unadjustable when the field frequen- cy is equal to 120 Hz and in the AMD FreeSync Premium/ G-SYNC state.
-
Page 29: Luminance
Luminance Luminance Contrast Brightness UniformBrightness ECO Mode Standard Gamma Gamma1 Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Turn on Uniform Brightness, which equalizes the peak UniformBrightness On/Off brightness in SDR mode, even when the white-screen window size changes. - Page 30 Note: When “HDR Mode” under “Luminance” is set to non-off, “Contrast”, “Eco Mode” and “Gamma” can’t be adjusted. When “HDR” under “Luminance” is set to non-off, all items under “Luminance” can’t be adjusted. When the Color Space under Color Settings is set to sRGB or DCI-P3, the Contrast, Brightness Scenario Mode, Gamma, and HDR/HDR Mode items are not adjustable.
-
Page 31: Pip Setting
PIP Setting Disable or Enable PIP or Off / PIP / PBP PBP. Main Source Select main screen source. Sub Source Select sub screen source. Size Small / Middle / Large Select screen size. Right-up Right-down Position Set the screen location. Left-up Left-down Disable or Enable Audio... -
Page 32: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. -
Page 33: Audio
Audio Audio Volume Exit Enter Select Volume 0-100 Adjust volume setting... -
Page 34: Light Fx
Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static / Dark Point Sweep /... -
Page 35: Extra
Extra Extra Extra Extra Input Select Auto Auto Warning DDC/CI USB Selection Auto Pixel Refresh Reset Off Timer Pixel Orbiting Image Ratio Wide Time after Pixel Refresh Time after Pixel Refresh Resolution: 3840(H)x2160(V) SDR H.Frequency: 67 KHz Pixel Refresh Counts Pixel Refresh Counts V.Frequency: 30 Hz Exit... - Page 36 It is used to enable and run the Pixel Refresh function to eliminate image retention which has been generated. After startup, select “Yes” according to menu Pixel Refresh prompts, and then the display will automatically (Elimination of On/ Off shut down the screen. Keep power on, and image retention) do not operate any keys.
-
Page 37: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2/DP1.4 support AMD FreeSync DP Capability 1.1/1.2/1.4 Premium/G-SYNC function H. -
Page 38: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange Pixel Refresh under White indicator flashes (on a second and off a process second alternatively) Panel Refresh under White indicator flashes (on for 3 seconds and process off for 3 seconds alternatively) Orange indicator flashes (on a second and off OLED panel malfunction a second alternatively) -
Page 39: Troubleshoot
User Instructions in the official website. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 40: Specification
Specification General Specification Model Name AG456UCZD Driving System OLED Panel Viewable Image Size 113cm Diagonal Pixel Pitch 0.303mm(H) x 0.303mm(V) Display Color 1.07B 30k-185kHz(HDMI) Horizontal Scan Range 30k~385kHz(DP/USB C) Horizontal scan Size(Maximum) 1042.66 48~120Hz (HDMI) Vertical Scan Range 48~240Hz(DP/USB C) Vertical Scan Size(Maximum) 436.46mm Optimal Preset Resolution... - Page 41 Note: 1)The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards): USB C USB C USB C USB C @USB @USB...
-
Page 42: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.000 640x480@100Hz 51.080 99.769 640x480@120Hz 60.938 119.720 800x600@56Hz 35.156 56.250 800×600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 75.000 800x600@100Hz 62.760 99.778 800x600@120Hz 76.302... - Page 43 Note: According to the VESA standard, different operating systems and graphics cards may have certain errors (+/-1Hz) on resoution.Actual please refer to the actual product.
-
Page 44: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 45: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
