Summary of Contents for AOC AGON AG405UXC

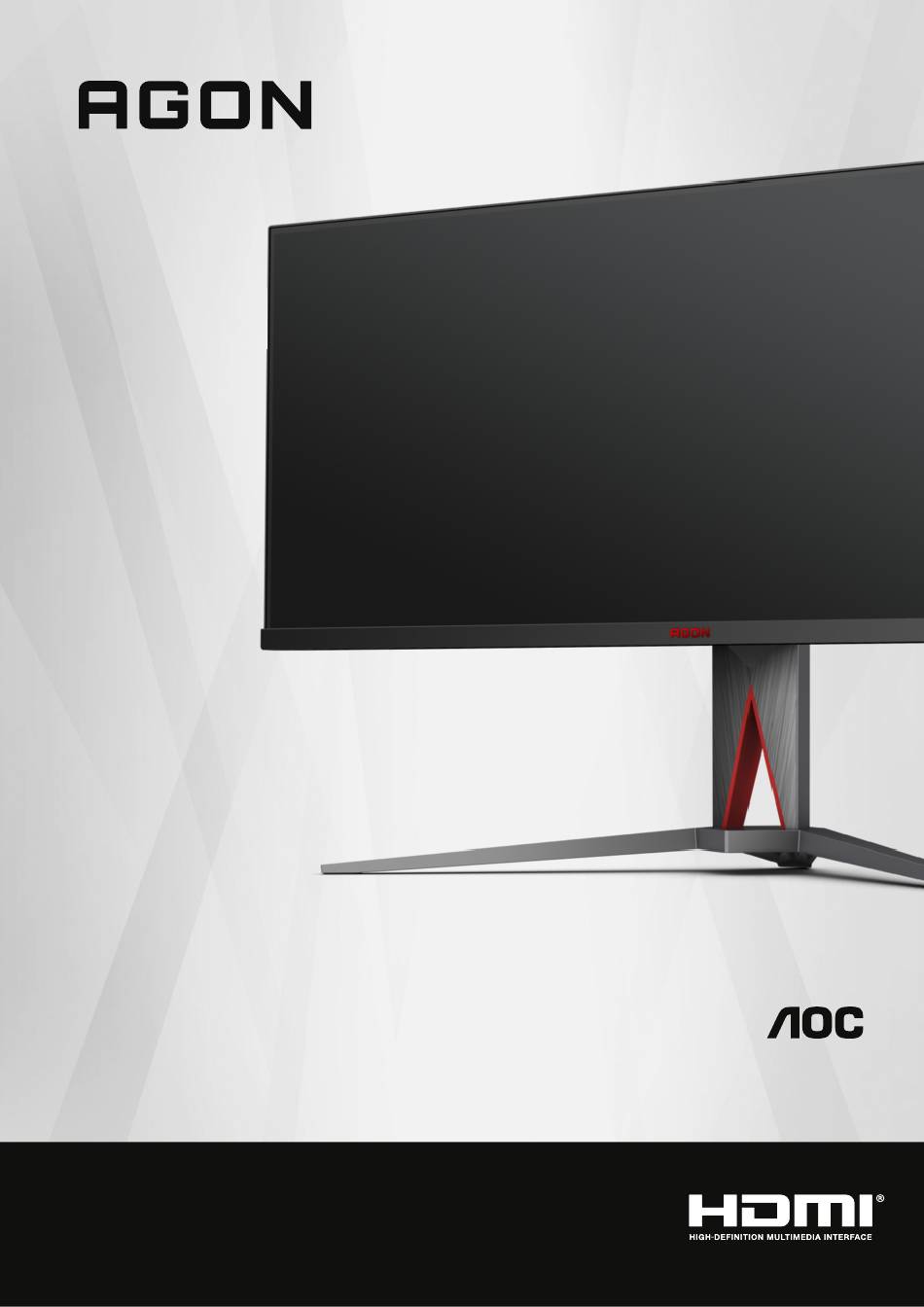

- Page 1 LCD Monitor User Manual AG405UXC ® www.aoc.com ©2022 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 AMD FreeSync Premium function ........................... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Stand Screws Remote control Batteries Power Cable DP Cable HDMI Cable USB upstream Cable USB C-C Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 150mm 30°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 3 4 5 6 7 8 9 10 11 1. Power Switch 2. Power 3. HDMI 1 4. HDMI 2 5. DP 6. USB C 7. Earphone 8. USB upstream 9. -
Page 12: Amd Freesync Premium Function
AMD FreeSync Premium function 1. AMD FreeSync Premium function is working with DP/HDMI/USB C 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • RadeonTM RX Vega series • RadeonTM RX 500 series •... -
Page 13: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 14: Kvm Function
What is KVM? With KVM function, you can show two PCs, or two notebooks, or one PC and one notebook on one AOC monitor and control the two devices with one set of keyboard and mouse. Switch your control over your PC or notebook devices by choosing input signal source on “Input Select”... - Page 15 Extra Input Select Auto Volume USB Selection Auto Off Timer Resolution: 1920(H)x1080(V) SDR H.Frequency: 68 KHz V.Frequency: 60 Hz Exit Enter Select USB Selection Function Description Auto Auto selects USB C or USB Up depending on the input source. USB C Provides USB Hub function through Type-C cable.
-
Page 16: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Shadow Control /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. - Page 17 Shadow Control/Right When there is no OSD, Press Shadow Control button to Press to switch power on and active Shadow Control adjustment bar, Press “ Right” off. to adjust contrast for clear picture. Change the signal input source. Source/Up Access the OSD menu. When the OSD is closed, press Source/Up button will be Adjust the OSD options upwards.
-
Page 18: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 19 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 20: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Setting OSD Setup Extras Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). Follow Key Guide to move or select (adjust) OSD settings 3). OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down–button for 10s while OSD function is not active. -
Page 21: Game Setting
Game Setting Game Setting Game Mode Shadow Control Game Color AMD FreeSync Overdrive Low Input Lag Frame Counter Exit Enter Select Turn off game mode. For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality. - Page 22 Adjust the response time. Note: 1. If the user adjusts OverDrive to “Strong” the displayed image may be blurred. Users can adjust the Weak OverDrive level or turn it off according to their preferences. 2. The “Boost” function is optional when AMD FreeSync Overdrive Medium Premium is turned off, the low input delay is turned on, and...
-
Page 23: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 HDR Mode Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco mode Movie Movie Mode Sports Sports Mode Reading... -
Page 24: Pip Setting
Note: 1. When “HDR Mode” under “Luminance” is set to non-off, “Contrast”, “Eco Mode” and “Gamma” can’t be adjusted. 2. When “HDR” under “Luminance” is set to non-off, all items under “Luminance” can’t be adjusted. PIP Setting PIP Setting Main Source HDMI1 Sub Source HDMI2... - Page 25 Main source PIP/PBP HDMI2 HDMI1 TYPE C HDMI1 HDMI2 Sub -source TYPE C *PxP color-related adjustments can only be operated by main, and sub is not supported. So Main & sub will have different colors...
-
Page 26: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. R e c a l l N o r m a l C o l o r Te m p e r a t u r e f r o m Normal EEPROM. -
Page 27: Extra
Extra Extra Extra Input Select Auto Volume Image Ratio Wide DDC/CI USB Selection Auto Reset Off Timer Resolution: 1920(H)x1080(V) SDR Resolution: 1920(H)x1080(V) SDR H.Frequency: 68 KHz H.Frequency: 68 KHz V.Frequency: 60 Hz V.Frequency: 60 Hz Exit Enter Select Exit Enter Select Auto / HDMI1 / HDMI2 /DP Input Select... - Page 28 *: The device needs to support USB C interface video transmission (DP Alt). The USB C (DP Alt) function is turned off by default when it is used for the first time or after the OSD menu reset operation, and it can be turned on again by any of the following methods: 1).
-
Page 29: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout please be noted that only DP1.2/DP1.4 support AMD FreeSync DP Capability 1.1/1.2/1.4 Premium Compatible function H. -
Page 30: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode White (blinking) -
Page 31: Troubleshoot
Press hot-key (AUTO) to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 32: Specification
Specification General Specification Model name AG405UXC Driving system TFT Color LCD Viewable Image Size 100.4 cm diagonal（39.5”） Panel Pixel pitch 0.26925mm(H) x 0.26925mm(V) Video HDMI /DP/USB C Display Color 16.7M Colors 30k-160kHz (HDMI) Horizontal scan range 30k-220kHz (DP/USB C) Horizontal scan Size(Maximum) 926.22mm 48-120Hz (HDMI) Vertical scan range... -
Page 33: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640 x 480@100Hz 50.313 99.826 800x600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 800x600@100Hz 62.76 99.778 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029... -
Page 34: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 35: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
