Linear Technology DC2253A Demo Manual page 5

Ltc3789egn 300w 2-phase interleaved synchronous buck-boost converter
Hide thumbs Also See for DC2253A:

Advertisement

DEMO MANUAL DC2253A
Quick start proceDure

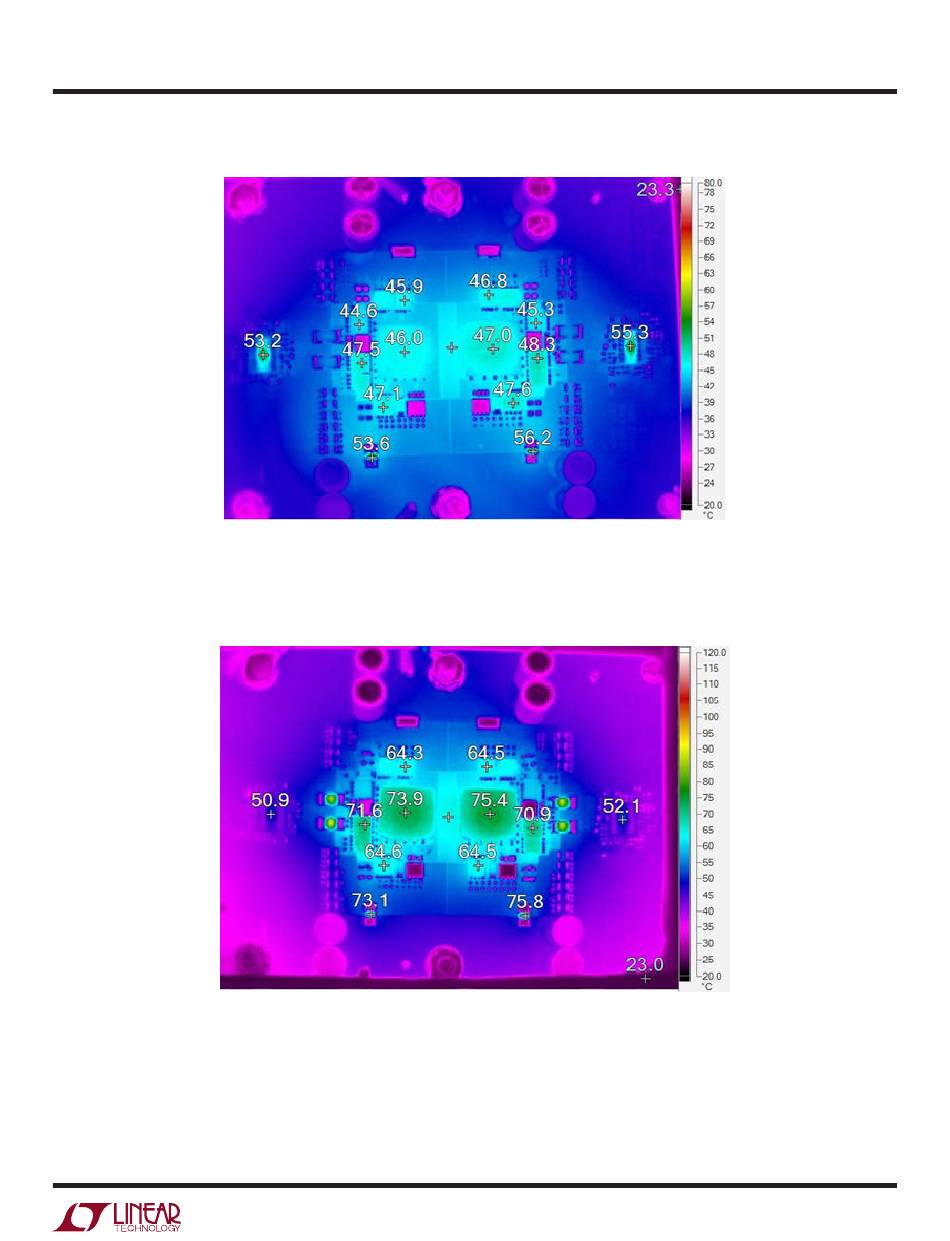

Figure 7. Thermal Performance (V
= 12V, V
= 12V, 25A Load, No Air Flow)
IN
OUT
Figure 8. Thermal Performance (V
= 6V, V
= 12V, 25A Load, 200LFM)
IN
OUT
dc2253af
5
