Happymodel Mobula6 1S Manual

AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
Super light 1S 65mm Brushless whoop only 17.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
FX17-B 1/3 CMOS 800TVL Camera awesome footage
Smooth and powerful
Compatible for 1S Lipo/LIHV
2.4G Serial ELRS receiver could flash single ELRS firmware
Brand Name: Happymodel

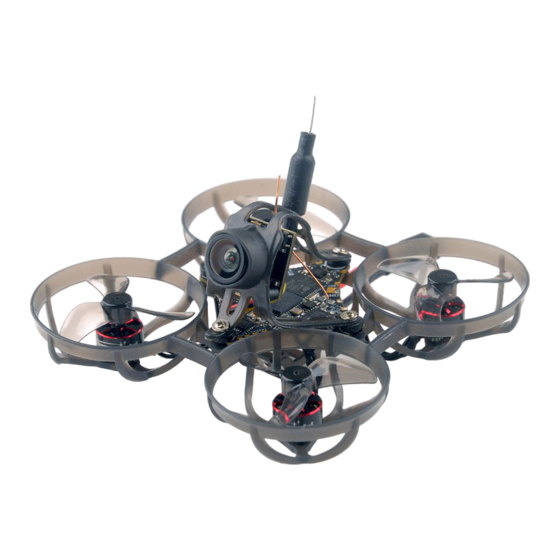

Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm
Weight: 17.7g
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
SuperX ELRS AIO 5-IN-1 Flight controller
SE0702 KV28000 brushless motor
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
FX17-B 1/3 CMOS 800TVL camera NTSC 4:3
Onboard 5.8G 25mw~400mw VTX
Spare canopy
Propeller disassemble tool
Screw driver
Bind procedure video for your refrence
1) Supply power to the flight controller by plug USB, then immediately unplug
USB when the RGB LED turned on, and then repeat one time again. When the FC
is powered on for the third time, the RGB LED light will start to double-flash,
which means that the onboard uart receiver enters into the binding mode
2) Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to
ExpressLRS.lua from "TOOLS" menu of your radio transmitter. Then hit [Bind]
to binding with the onboard ExpressLRS receiver. The RGB LED should blinking
slowly first then turn to solid, that means binding was successfully.
3)"Telemetry" from receiver tab must enable for this flight controller
1)Turn on your radio transmitter and connect the battery to the
Then place Mobula6 2024 1S horizontally on the ground.
2)Prepare your goggles, and match the channel with the VTX_table
:https://bit.ly/3UwEbed
Mobula6 2024 1S
3)The default ARM/DISARM switch was set to "AUX1", usually it's Channel5 of
your radio. You can customized a switch for AUX1(Channel5). Then Toggle Aux1
switch to arm the motors, The green LED on the top side of the flight controller
would get solid once armed ,happy flying .
Qty
1
1
4
1
4)Please make sure the MIXES of your radio settings is match the Channel Map
1
of betaflight settings,otherwise it won't be able to armed. The default channel
1
map is "TAER1234", you can also set it to "AETR1234" if necessary.
1
1
1
.
*RX2/TX2/+5V/GND pads could be used for External Serial Based equipment.
AUX1
