Happymodel Mobula7 HD PNP Manual

Specifications

Brand Name: Happymodel

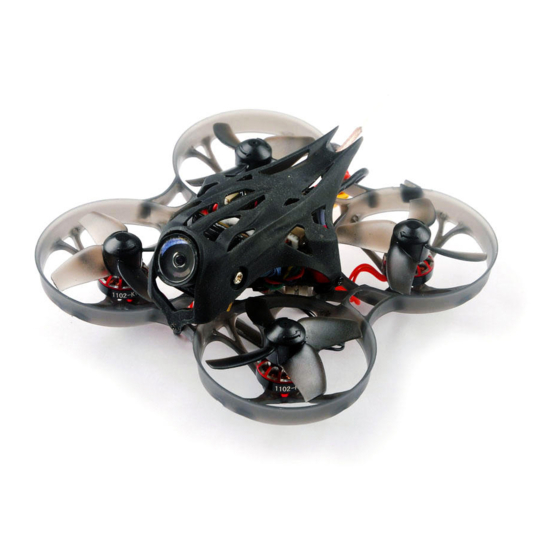

Item Name: Mobula7 HD 2-3S 75mm Brushless whoop drone
Wheelbase: 75mm
Size: 98mm*98mm* 45 mm
Weight: 72g(with Original 3s 300mah Lipo batter y )

Package includes:

Item Name
Mobula7 V3 Frame
Option1: Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
Option2: Crazybee F4FS V3.0 PRO FC built-in Flysky RX
Option3: CrazybeeF4 PRO V3.0 with external DSM2/X receiver
Option4: Crazybee F4 V3.0 PRO FC no RX verion
EX1102 KV9000 Motor
40mm propeller(4cw+4ccw)
Caddx Turtle v2+1080p 60fps DVR
Whoop_vtx 5.8G 40ch 25mw-200mw VTX
3S 11.4v 300mah 30C/60C batter y
Propeller disassemble tool
Screwdriver

Flight controller connection diagram

Receiver configuration

1. Connect your Serial-based receiver to the Crazybee F4 PRO flight controller according to the
bellowing connection diagram table
XM/XM+ /FHSS/FD800 RX
Crazybee F4 PRO
R1(RX1
No inverter)
IR1(RX1
SBUS
With inverter)
+5V +5V
GND GND
TX1
Smart audio control
TX2
(VTX support)
RX2
2. Enable Serial RX for UART1 Sbus/IBUS/DSM2/DSMX receiver
crossfire Nano receiver) , then choose the correct serial Receiver provider based on the
protocol of your receiver
Qty
1
1
4
1
1
1
1
1
1
BUZ+
+5V output
GND
IRX1
Video_out
TX2
TX1
Fli10/Flit14/Fli14+/SP09X RX TBS Crossfire Nano
IBUS/DSM2/DSMX
+5V +5V
GND GND
Smart audio control
(VTX support)
Smart audio control
RX
(VTX support)
TX
or Serial RX for UART2(TBS
Mobula7 HD brushless whoop Racing Drone PNP version
SBUS signal connect to IR1 pad and enable Serial_RX for UART1
IBUS/DSM2/DSMX signal connect to R1 pad and enable Serial_RX for UART1
TBS CRSF NANO connect CH1(TX) to RX2 and CH2(RX) TO TX2 (Make sure telemetr y in the
configure is enable)
DSM2
DSMX
XM/XM+/FD800 SBUS/ FHSS
Fli10/Flit10/Fli14/RX2A PRO/FS82
TBS CRSF NANO
Arm/Disarm the Motor Use frsky x9d as an example
1. The Default Arm/Disarm switch for Mobula7 HD is AUX1(Channel 5),and you can also customize it
with Betaflight Configurator.
2.Turn on the Frsky transmitter (Use X9D+ as an example) and move to the MIXER interface,
Set "SA" or "SB" switch etc. for Ch5 to ARM/DISARM the motor.
3.The default channel map for Mobula7 HD PNP version is TAER1234, please make sure your
transmitter is matched, otherwise it will can't be armed. Toggle the AUX1 Switch ,the Green
LED on the flight controller will getting to be solid, this indicates the motor was armed . And
also you can found "Armed" displayed on your FPV Goggles or the FPV Monitor. Please make
sure keep the Mobula7 HD level before arming .Be careful and enjoy your flight now !
Toggle the AUX1 Switch, the Green LED on Toggle the AUX1 Switch, the Green LED on
the Flight controller will getting to be solid the Flight controller will getting to be solid
