Happymodel Mobula7 Quick Start Manual

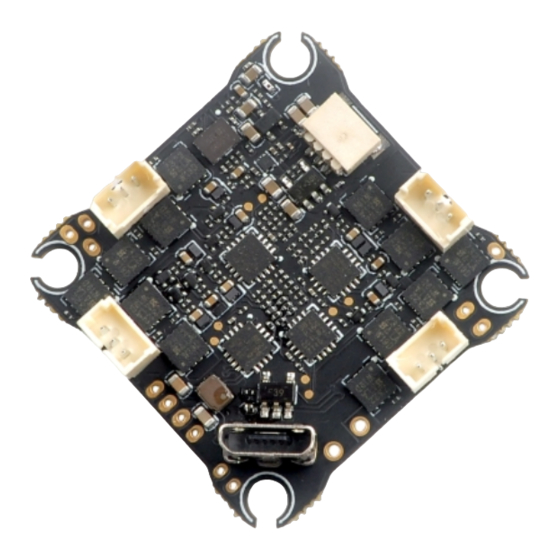

X12 V1.0 PNP AIO 4-IN-1 12A 1-2S flight controller
VTX Power up to 400mw
Compatible with Serial Based receiver
NEW RS0802 KV20000 motors
Runcam Nano3 or Runcam Split3-lite with 1080P DVR
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)
Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm
Mobula7 1S 24g Mobula7HD 1S 32g
Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver
Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver
Option3: X12 PNP V1.0 flight controller without onboard receiver
Option4: X12 PNP V1.0 flight controller with External TBS Nano RX
RS0802 KV20000 brushless motor
Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
Runcam Nano3 or Runcam Split3-Lite(HD version)
Onboard 5.8G Openvtx 0mw~400mw VTX
Series Balance Charging Board
Propeller disassemble tool
Extra camera canopy
GND
RX2
+5V
BAT+
GND
BUZ-
BUZ+
GND
+5V
LED_Strip
TX1
+5V
RX1
IR1
GND
Mobula7HD 1S PNP version
VIN
Mobula7 1S PNP version
BOOT
+5V
GND
VIN
+5V
GND
*RX1/TX1/+5V/GND pads could be used for External Serial Based RX like ELRS
Receiver ,TBS Tracer or CRSF Nano
*IR1/+5V/GND pads could be used for External SBUS receiver like
XM/XM+/AC900/RXSR
*Need to enable Serial RX for UART1 and select correct receiver protocol
1
1
4
1
1
1
1
1
1
RX
TX
RX1
+5V
TX1
+5V
GND
GND
CH2(RX)
CH1(TX)
RX1
+5V
TX1
+5V
GND
GND
CH2(RX)
CH1(TX)
RX1
TX1 +5V
+5V
GND
GND
IR1
SBUS
+5V
+5V
GND
GND
RX1
+5V
GND
+5V
GND
IBUS
