Happymodel Mobula8 2S Manual

X12 ELRS Pro v1.1 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and OPENVTX
VTX Power up to 400mw
ELRS V3.0 (Default), could flash elrs firmware for the receiver by wifi
EX1103 KV110000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)
Brand Name: Happymodel

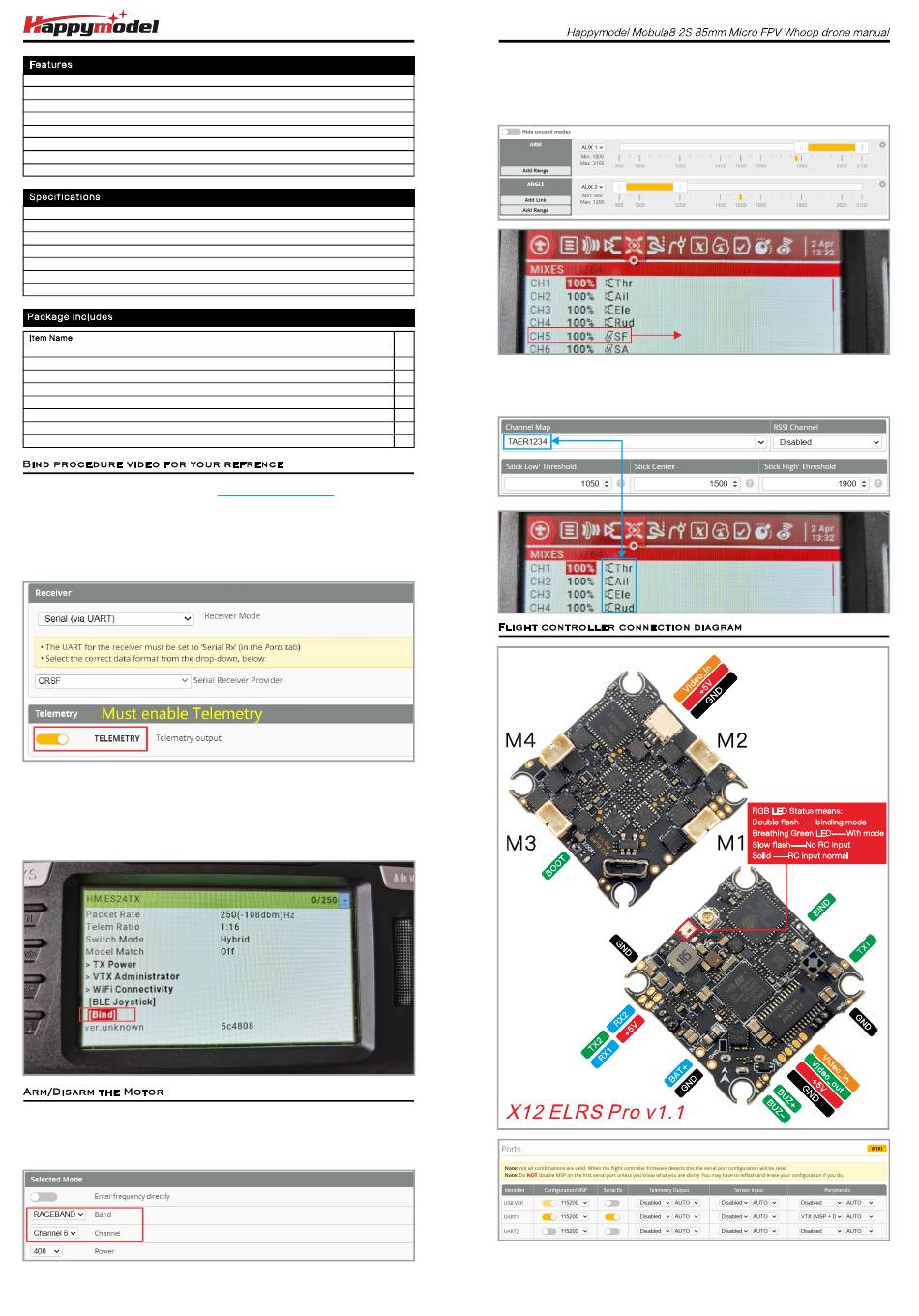

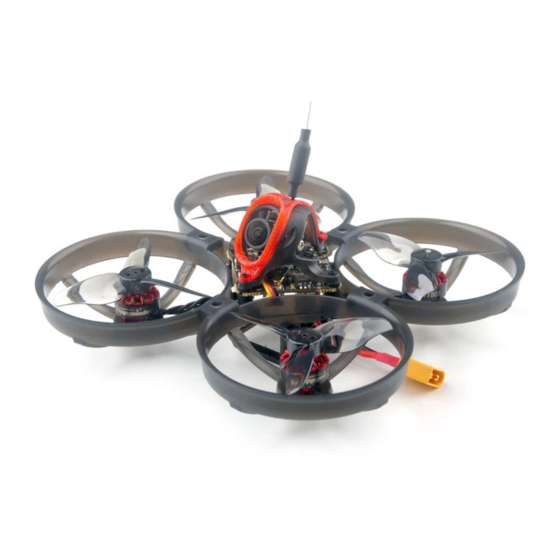

Item Name: Mobula8 UART ELRS 2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm
Weight: 43g
Receiver option:
2.4GHz UART EXPRESLRS
Mobula8 Frame
X12 ELRS pro V1.1 AIO flight controller
EX1103 KV11000 brushless motor
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)
Caddx ANT 1200TVL Camera
Onboard 5.8G Openvtx 0mw~400mw VTX
Canopy for 14mmx14mm camera
Screw driver
Bind procedure video for your refrence
1) Supply power to the flight controller by plug USB, then immediately unplug
USB when the RGB LED turned on, and then repeat one time again. When the FC
is powered on for the third time, the RGB LED light will start to double-flash,
which means that the onboard uart receiver enters into the binding mode
2) Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to
ExpressLRS.lua from "TOOLS" menu of your radio transmitter. Then hit [Bind]
to binding with the onboard ExpressLRS receiver. The RGB LED should blinking
slowly first then turn to solid, that means binding was successfully.
3)"Telemetry" from receiver tab must enable for this flight controller
1)Turn on your radio transmitter and connect the battery to the Mobula8 2S . Then
place Mobula8 2S horizontally on the ground.
2)Prepare your goggles, and match the channel with the VTX_table
:https://bit.ly/47qGOBu
3)The default ARM/DISARM switch was set to "AUX1", usually it's Channel5 of
your radio. You can customized a switch for AUX1(Channel5). Then Toggle Aux1
switch to arm the motors, the Red LED at the bottom of the flight controller
would get solid once armed, happy flying.
Qty
1
1
4)Please make sure the MIXES of your radio settings is match the Channel Map
4
of betaflight settings,otherwise it won't be able to armed. The default channel
1
1 map is "TAER1234", you can also set it to "AETR1234" if necessary.
1
1
1
*RX2/TX2/+5V/GND pads could be used for External Serial Based equipment.
AUX1
