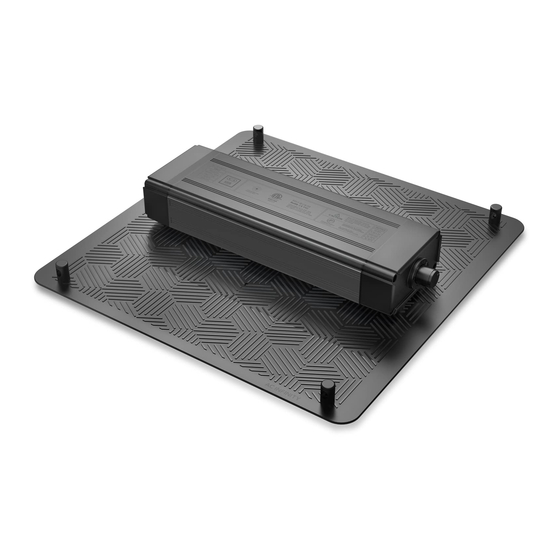

- Page 1 IONBOARD SERIES GROW LIGHT SYSTEM USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE IB2306X1 PRODUCT MODEL UPC-A IONBOARD S22 AC-IBS22 819137022515 IONBOARD S24 AC-IBS24 819137022522 IONBOARD S33 AC-IBS33 819137022539 IONBOARD S44 AC-IBS44 819137022546...
-
Page 5: Manual Index
..................Page 9 Power and Setup ................Page 12 Starter Guide ................... Page 13 Page 14 UIS™ Platform ................Page 15 Adding More Lights ................. Page 17 Programming ................... Page 18 Other AC Infinity Products ............... Page 19 Warranty .................. -
Page 6: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 7: Key Features
KEY FEATURES EVEN COVERAGE SAMSUNG DIODES DIMMABLE LED DRIVER Algorithmically spaced diodes Built with genuine Samsung Convenient dimmer knob achieve wider light spread for LM301H full spectrum adapts light intensity to your optimized use in all grow stages LEDs for high efficiency and plant's grow cycle stage: while eliminating hot spots. -
Page 8: Product Contents
PRODUCT CONTENTS GROW ROPE STAINLESS STEEL LIGHT DRIVER CLIP HANGING HOOK (x2) (x2) (x1) (x1) UIS M-M HOOK AND WIRE CORD LOOP TIE SET TIE SET (x1) (x4) (x1) IONBOARD S22 (AC-IBS22) shown... -
Page 9: Installation
INSTALLATION IONBOARD S22 / S24 STEP 1 Hang the steel hooks over your grow tent's support beams. STEP 2 While supporting your grow light, bend the steel hooks to insert the ends into the slotted holes of the end caps. Repeat this step on the other side of your grow light. - Page 10 INSTALLATION IONBOARD S33 / S44 STEP 1 Insert the steel hooks into your grow light's slotted holes of the end caps. STEP 2 Position your grow tent's pole under the steel hooks. Install the pole onto your grow tent's frame. *Two people are recommended for this installation.
- Page 11 INSTALLATION ROPE CLIP HANGING STEP 1 Insert the steel hooks into your grow light's slotted holes of the end caps. STEP 2 Loop the rope clip hangers around your grow tent's support beams. Hook the carabiners into the steel hooks.
- Page 12 POWERING AND SETUP STEP 1 Plug the power cord into an AC power outlet to power your grow light. STEP 2 You may connect an external controller to set smart programming. Plug one end of the extension cord into the LED driver, and the other end into your chosen controller.
- Page 13 STARTER GUIDE The charts below offer suggested mounting heights and light intensities for each stage in the growing process of your preferred method. These factors will vary based on the plant you are growing. In dynamic placement, "height" refers to distance from the canopy (tip of the plant). STATIC Seedling Vegetative...
- Page 14 By creating this fully integrated system, you can power and program all your devices together or separately for optimized grow tent management. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data.
- Page 15 ADDING MORE LIGHTS AC Infinity smart controllers are equipped with multiple ports to add more grow lights and share the same programming. Refer to the diagram below to learn how to connect additional units. Smart grow light controllers can program light intensity levels and scheduled activations of all grow lights plugged into its UIS ports.
- Page 16 ADDING MORE LIGHTS EXTENDING THE CHAIN Plug the male end of the splitter* into your UIS controller. Connect a UIS device or power adapter to the first port of each tier to power your controller and the hub. Ports 2-4 can connect to additional splitters or UIS devices.
- Page 17 PROGRAMMING OFF / UIS MODE Turning the knob to UIS switches the grow light off, or passes control over to your smart controller if one is connected. INTENSITY LEVEL Turning the knob from UIS will establish a set light intensity level in 20% increments, up to 100%.
- Page 18 150 lb. weight capacity. Includes a mounting plate to install your AC Infinity controller onto. Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects.
-
Page 19: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 20 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
- Page 24 www.acinfinity.com...
