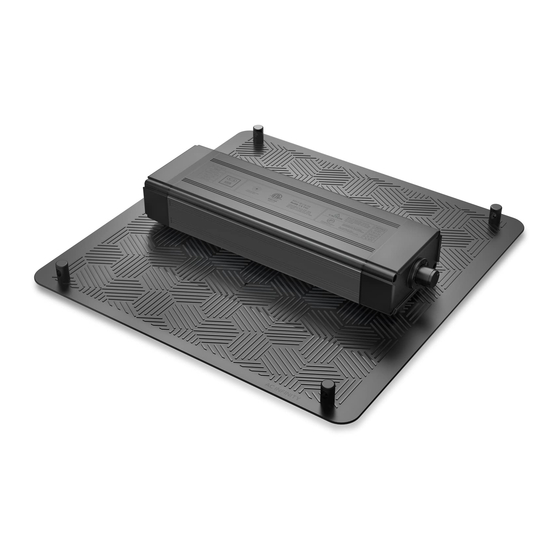

AC Infinity IONBOARD Series User Manual

Grow light system
Hide thumbs Also See for IONBOARD Series:
Table of Contents

Advertisement

Quick Links

IONBOARD SERIES
GROW LIGHT SYSTEM
USER MANUAL
1

Advertisement

Table of Contents
loading

Related Manuals for AC Infinity IONBOARD Series

Summary of Contents for AC Infinity IONBOARD Series

  • Page 1 IONBOARD SERIES GROW LIGHT SYSTEM USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 MANUAL CODE IG2108X1 PRODUCT MODEL UPC-A IONBOARD S22 AC-IBS22 819137022515 IONBOARD S24 AC-IBS24 819137022522 IONBOARD S33 AC-IBS33 819137022539 IONBOARD S44 AC-IBS44 819137022546...

  • Page 5: Manual Index

    Installation ..................Page 11 Power and Setup ................Starter Guide ................... Page 12 Adding More Lights ................. Page 13 Universal Infinity System ..............Page 14 Page 15 Programming ................... Page 16 Other AC Infinity Products ............... Warranty ..................Page 17...

  • Page 6: Key Features

    KEY FEATURES SAMSUNG LED DIODES EVEN COVERAGE DIMMABLE LED DRIVER Built with genuine Samsung Algorithmically spaced diodes Convenient dimmer knob LM301B full spectrum LEDs achieve wider light spread for adapts light intensity to your running at 100W & 2.6 μmol/j optimized use in all grow stages plant's grow cycle stage: for high efficiency lighting.

  • Page 7: Product Contents

    PRODUCT CONTENTS IONBOARD S-Series GROW LIGHT DRIVER (x1) (x1) STAINLESS STEEL ROPE VELCRO UIS M-M CLIP HANGING HOOK TIE SET CORD (x2) (x2) (x4) (x1)

  • Page 8: Installation

    INSTALLATION IONBOARD S22 / S24 STEP 1 Hang the steel hooks over your grow tent's support beams. STEP 2 While supporting your grow light, bend the steel hooks to insert the ends into the slotted holes of the end caps. Repeat this step on the other side of your grow light.
  • Page 9 INSTALLATION IONBOARD S33 / S44 STEP 1 Insert the steel hooks into your grow light's slotted holes of the end caps. STEP 2 Position your grow tent's pole under the steel hooks. Install the pole onto your grow tent's frame. *Two people is recommended for this installation.
  • Page 10 INSTALLATION ROPE CLIP HANGING STEP 1 Insert the steel hooks into your grow light's slotted holes of the end caps. STEP 2 Loop the rope clip hangers around your grow tent's support beams. Hook the carabiners into the steel hooks.
  • Page 11 POWERING AND SETUP STEP 1 Plug the power cord into an AC power outlet to power your grow light. STEP 2 You may connect an external controller to set smart programming. Plug one end of the extension cord into the LED driver, and the other end into your chosen controller.

  • Page 12: Height Adjustment

    STARTER GUIDE The charts below offer suggested mounting heights and light intensities for each stage in the growing process of your preferred method. These factors will vary based on the plant you are growing. Height refers to distance from the canopy (tip of the plant). HEIGHT Seedling Vegetative...
  • Page 13 The expansion dongle will allow you to connect 2 or 4 more devices and can be daisy-chained to create more expansion ports (up to 64 units supported with the use of 20 dongles). Intended for exclusive use with AC Infinity controllers built with UIS ports. *Smart Controller and dongle are sold separately.
  • Page 14 Create independent timers and schedules for customized activation in your desired timeframe. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data.

  • Page 15: Intensity Level

    PROGRAMMING OFF/UIS MODE Turning the knob to UIS switches the grow light off, or passes control over to your smart controller if one is connected. INTENSITY LEVEL Turning the knob from UIS will establish a set light intensity level in 20% increments, up to 100%.
  • Page 16 150 lb. weight capacity. Includes a mounting plate to install your AC Infinity controller onto. Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects.

  • Page 17: Warranty

    WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 18 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
  • Page 20 www.acinfinity.com...
