NETGEAR GS305PPv3 Installation Manual

Installation Guide
5-Port PoE+ Gigabit Ethernet SOHO
Unmanaged Switch (83W)
Model GS305PPv3
Package contents
• Switch model GS305PPv3
• DC power adapter
• Detachable power cable (varies by region)
• Wall-mount kit screws
• Four rubber footpads
• Installation guide
NOTE: We recommend that you use a Category 5e (Cat 5e) cable or a higher rated cable
for Gigabit Ethernet connections.
1. Register the switch
We recommend that you register your switch
1. From a computer or mobile device that is connected to the Internet, visit
my.netgear.com.
2. Log in to your NETGEAR account.
NOTE: If you don't have a free NETGEAR account, you can create one.
The My Products page displays.
From the menu on the left, select Register a Product.
3.
4. In the Serial Number field, type the serial number of your switch.
The serial number is 13 digits long. It is printed on the switch label.
5. From the Date of Purchase menu, select the date that you purchased the switch.
6. Click the REGISTER button.
Your switch is registered to your NETGEAR account.
A confirmation email is sent to your NETGEAR account email address.
2. Connect the switch
GS305PPv3
Access point
Security cameras
Sample connections
This switch is designed for indoor use only. If you want to connect it to a device located
outdoors, the outdoor device must be properly grounded and surge protected, and you
must install an Ethernet surge protector inline between the switch and the outdoor device.
Failure to do so can damage the switch.
Before connecting this switch to outdoor cables or devices, see
kb.netgear.com/000057103 for safety and warranty information.
3. Connect to power and check the LEDs
When you connect the power adapter to the switch and plug the power cable into an
electrical outlet, the LEDs indicate the status.

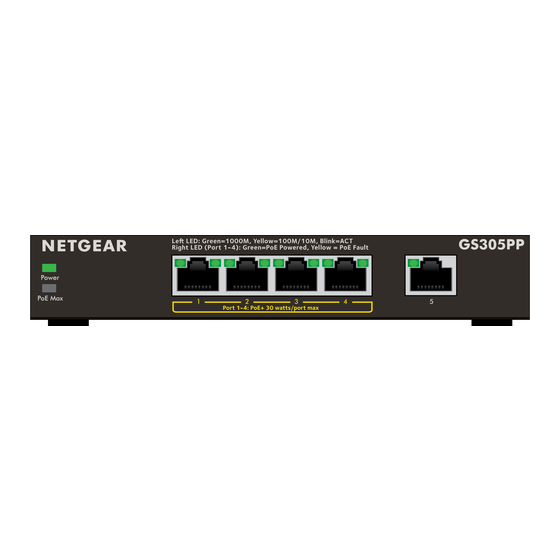

Model GS305PPv3 provides PoE+ or PoE power on ports 1–4 up to 30W PoE to each port,
with a PoE power budget of 83W across all active PoE ports.
LED
Power LED
Ports 1–5
left LED
Internet
PoE+
Ports 1–4
right LED
Router Internet
PoE Max LED
VoIP phone
Description
On. The switch is receiving power.
Off. The switch is not receiving power.
On.1000 Mbps link on this port.
On. 100 Mbps or 10 Mbps link on this port.
Blinking. 1000 Mbps activity on this port.
Blinking. 100 Mbps or 10 Mbps activity on this port.
Off. No link is detected on this port.
On. PoE is in use.
On. PoE fault.
Off. PoE is not in use on this port.
The PoE Max LED indicates the status of the PoE budget on the switch:
Off. Sufficient. More than 7W of PoE power is available.
On. Less than 7W of PoE power is available.
Blinking. At least once during the previous two minutes, less
than 7W of PoE power was available.
