Summary of Contents for Asko HIHD854MF

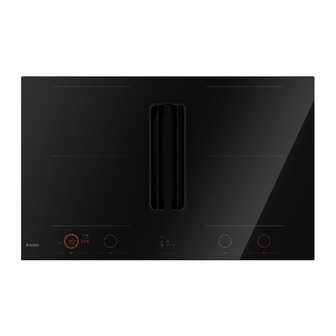

- Page 1 INSTRUCTIONS FOR USE HIHD854MF Induction hob with integrated extractor HIHD854GF HIHD854MM...
-
Page 2: Table Of Contents
Contents Pictograms used ........Child lock ............. Safety ............Timer functions ..........Safe use ............Operating the extraction module ....Open window’ function ....... ConnectLife and Wi-Fi ....... Power management ........ConnectLife-app and Wi-Fi connection ..Your hob with integrated extractor ..Firmware Update ......... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire... -
Page 4: Safety
Safety READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental... - Page 5 Safety NEVER try to extinguish a fire with water. Instead, switch the appliance off and then cover the flames with, for example, a lid or a fire blanket. WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the appliance manufacturer in the instructions for use as suitable or hob guards incorporated in the appliance.
- Page 6 Safety the plug socket. Take the appliance to your municipality’s waste disposal site. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Ceramic glass plate broke • Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.
- Page 7 Safety Never use the appliance to extract air while using a cooker that consumes air from the room unless the room is sufficiently ventilated. Cooking appliances that consume air in the room (such as equipment that heats using gas, oil, wood or coal, geysers, and hot water appliances) draw the combustion air out of the room and carry these gasses outside via the outlet (e.g.
-
Page 8: Safe Use
Safety Grease deposits in the metal grease filters can cause a fire. Never flambé on a cooking zone with the extractor switched on. The high flames can cause a fire. Always use the appliance with the metal grease filter. Clean the grease filter regularly. Overheated fat or oil can start a fire. -
Page 9: Open Window' Function
Safety Setting The cooking zone switches off automatically after: 1 and 2 9 hours 3, 4 and 5 6 hours 6, 7 and 8 4 hours 3 hours 2 hours 11 and 12 1 hour The cooking-time limiter switches the cooking zones off if the time in the table has elapsed. Setting The cooking zone switches automatically to setting 12 after:... - Page 10 Safety • Intervention by the smart power management system is more likely when the current limiter is set to a lower level. • The current limiter setting must be set according to your connection and circuit breakers by a registered and qualified installer (see 'Installation' for the details on currents and electrical installation).
-
Page 11: Your Hob With Integrated Extractor
Your hob with integrated extractor Dear customer! Welcome to our growing ASKO family! We are proud of our appliances. We hope that this appliance will be an appreciated and dependable aid for many years to come. Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and the best way to take care of your appliance. -
Page 12: Chapter Page
Your hob with integrated extractor Table continued from last page Chapter Page Purpose Settings You can fully customise this induction hob to your cooking style! Several settings can be adjusted. This chapter also contains settings for the installer. Maintenance Provides information on cleaning and maintaining your device. Troubleshooting If the appliance does not work correctly or displays unclear messages, please refer to this section. -
Page 13: Description
Your hob with integrated extractor Description Since the appliances for which these instructions were drawn up may have different equipment, some functions or equipment may be described in the manual that may not be present in your appliance. 1. Bridge Induction Cooking zone 18 x 22 cm / max. 2.3 kW / max. 3.7 kW (boost) to be operated with 'a' 2. -
Page 14: Control Panel
Your hob with integrated extractor Control panel 1. Wi-Fi/connectivity touch key 2. Pause touch key 3. On/Off and Child lock touch key 4. - (minus) touch key for less extraction 5. Extraction on/off indication 6. + (plus) touch key for more extraction 7. - Page 15 Your hob with integrated extractor Explanation of the touch keys function Touch key/slider Description (see chapter 'Operation') Switching the hob on/off The appliance can be switched on and off with the on/off key. Depending on the 'Synchro Stop' setting, only the hob part or also the On/Off extraction module is switched off.
- Page 16 This function is exclusively for Bridge Induction cooking zones, that are linked to create one larger cooking zone. PLUS Grilling is optimized for ASKO induction accessories grill plate and (Automatic teppanyaki. But it will also work with different cookware, but perhaps cooking programs) less accurate.
-
Page 17: Indications On The Display
Your hob with integrated extractor Indications on the display In display Status Power level 0’ for a cooking zone. Power level that is set for a cooking zone; 1 = low / 12 = high. Boost function active. boost The locking function is activated; the control panel is locked. Residual heat indicator: The hob has a residual heat indicator for each cooking zone to show which cooking zones are hot after the cooking zone is turned off. -
Page 18: Use
Induction cooking Induction cooking is fast To start with, you will be surprised by the speed of induction cooking. Especially at higher settings, foods and liquids will come to a boil very rapidly. It is best not to leave pans unattended to avoid them boiling over or boiling dry. - Page 19 How induction works The coil (1) in the hob (2) generates a magnetic field (3). By placing a pan with an iron base (4) on the coil, a current is induced in the base of the pan. Easy The electronic controls are accurate and easy to set. On the lowest setting, you can melt chocolate directly in the pan, for example, or cook ingredients that you would normally heat in au bain-marie.
-
Page 20: Induction Sounds
Induction sounds • Ticking sound This sound can be caused at lower power level settings or by the automatic pot detection. • Pan makes sounds Pans can make some noise during cooking. This is caused by the energy flowing from the hob to the pan. - Page 21 WARNING! Be careful with enamelled sheet-steel pans: • the enamel may chip (the enamel comes loose from the steel) if you switch the hob on at a high setting when the pan is (too) dry; • the base of the pan may warp - for example: Due to overheating; •...
-
Page 22: Cooking Settings
Cooking settings Because the settings depend on the quantity and composition of the pan and its contents, the table below is intended as a guideline only. Level Purpose • simmer bouillon, Use settings 1 - 5 to: • stew meats, •... -
Page 23: Using The Extraction Module
Using the extraction module The extraction module is equipped with a movable tower. Using the tower in the raised position, the extraction module will catch vapour more effectively, especially when using tall pans. • The tower has two positions; lowered and raised. The position can be changed by touching the tower up/down key. - Page 24 Placing pans and lids We recommend placing pans as close to the tower as possible, within the dimensions of the cooking zones. If a lid is used, place it at an angle on the pan with the opening towards the tower. This ensures optimal extraction.
- Page 25 Clean grease filter indicator The extraction module has a filter indicator. This indicator flashes when the grease filters need to be cleaned. Three use intensities can be set, which determine the cleaning interval of the grease filters. By selecting the correct intensity of use based on cooking habits, the filters will not need to be cleaned more than necessary.
-
Page 26: Operation
Operation Start Preparing Three cooking modes are available: 1. Standard cooking with power levels. 2. Cooking with the PLUS menu. 3. Cooking with Celsius°Cooking™ by measuring cookware temperature (available depending on the model) Standard cooking 1. Place a pan on a cooking zone. 2. - Page 27 Operation 4. Set a higher or lower setting by sliding over the slide control with your finger or by tapping on the slide control. • The cooking zones have 12 settings. There is also a boost’ setting. 5. Remove the pan or touch the slider for 3 seconds to switch the cooking zone off. NOTE! When no cooking zone is active for 60 seconds, the cooking hob will power off.
-
Page 28: Cooking With The Plus Menu
Operation Cooking with the PLUS menu The PLUS menu allows cooking with semi-automatic programs, enabling temperature cooking for all kinds of cookware that fit the program's purpose. 1. Touch the PLUS menu key to display the program line: keeping warm/heating up, frying/wok, and grill. - Page 29 This function is exclusively for connected Bridge Induction cooking zones that are combined to form a larger cooking zone. Grilling is optimized for ASKO induction accessories: the grill plate and the teppanyaki. It will also work with different cookware, but perhaps less accurate.
-
Page 30: Cooking With Celsius°Cooking
Additional accessories are included with some models. This equipment lets you unlock the full power of Celsius°Cooking™, reading and communicating exact information about the temperature of your ingredients, giving perfect results. The equipment Probe Frying pan Chef's pot Find out more at www.celsiuscooking.com, www.asko.com. -
Page 31: Cooking With Celsius°Cooking™ Cookware And Programs
Operation Cooking with Celsius°Cooking™ cookware and programs This option involves cooking using either the Celsius°Cooking™ cookware (frying pan or pot’s) that continuously measures the temperature inside the cookware or the Celsius°Cooking™ temperature probe. All use Bluetooth connections to send information about the temperature to the cooking hob. Preparing the system Before you start cooking, please make sure you complete all the preparation steps. - Page 32 Operation 1. Slide the suspension bracket over the pan edge. 2. Insert the probe into the suspension bracket from above. NOTE! • Leave a minimum distance of 1 cm between the pan base and the measuring point of the probe! •...
- Page 33 Operation Assigning the cookware to the cooking zone Switch on the hob and wait until the end of the start-up animation. Place the Celsius°Cooking™ cookware or a regular pan fitted with the Celsius°Cooking™ probe on the desired cooking zone. After it has been detected, quickly tap twice with your fingertip on the sensor in the end cap or the probe housing to activate it.
- Page 34 Operation Heating up and frying This program is to reach high temperatures rapidly. High pan bottom temperatures can be reached. Always add oil or butter before starting it. For healthy cooking don’t exceed the smoke point of the used oil. Boiling or cooking with water With this program, the water gets to boil quickly.
-
Page 35: Step-By-Step Cooking Guide On Celsiuscooking.com
Operation Step-by-Step cooking guide on CelsiusCooking.com The best-tasting food is prepared at the right temperature and for the right length of time. The ability to set temperature instead of power levels supported by how-to (video) guidance lets you create chef-like meals cooked to perfection. -
Page 36: Pause
Operation Connecting Bridge Induction zones 1. Place a large pan on both cooking zones so that both zones are well covered. • If the brd (auto-connecting) function is active, the zones are linked automatically (consult chapter 'Settings'). 2. Touch the sliders of both left or both right cooking zones. •... -
Page 37: Child Lock
Operation Switching off the pause Touch the pause key again within 10 minutes. • The hob continues to operate with the same settings. Child lock The cooking zones can be locked to prevent them from being switched on inadvertently. 1. Touch the on/off key to switch on the hob. 2. - Page 38 Operation 2. Set the desired cooking time with + (plus) and - (minus) touch keys. • Touch the - (minus) key to increase the time in hours. Touch the + (plus) key to increase the time in minutes. Then, if desired, touch the - (minus) key to decrease the time in minutes. •...
-
Page 39: Operating The Extraction Module
Operation Operating the extraction module The extraction module is set to Synchro Control by default (see Automatic Extraction’ in the 'Use' chapter). In Synchro Control, the extraction module keys/indicators are dimmed. The suction is adjusted according to the use of the cooking zones. Setting 5 (boost) is a temporary setting in Synchro Control too. - Page 40 Operation Raising or lowering the tower manually: Touch the tower up/down key. • The tower rises. • Touching the up/down key again while the tower moves up/down reverses the direction of movement. If something stops the tower while it is moving up, the tower will move down again. Air-Dry function The Air-Dry function is automatically activated as soon as the extraction module is switched off.
-
Page 41: Connectlife And Wi-Fi
ConnectLife and Wi-Fi ConnectLife-app and Wi-Fi connection The hob is equipped with a Wi-Fi module that allows the appliance to connect to the internet via your home network and to use it with the ConnectLife-app, installed on a mobile device like a smartphone or tablet. - Page 42 ConnectLife and Wi-Fi Activate Wi-Fi 1. Switch off the hob. 2. Touch the on/off key for 5 seconds. • A short beep will be emitted. The Wi-Fi key will appear. Wi-Fi menu Activate Wi-Fi to enable the Wi-Fi menu. The hob must be switched on. 1.
-
Page 43: Firmware Update
ConnectLife and Wi-Fi Firmware Update The cooking hob is equipped with a Wi-Fi module that you could use to receive updates of the appliance firmware (for example, improved function updates or safety-relevant updates). This requires that the cooking hob is connected to the cloud and paired with a registered user account on the ConnectLife-app. -
Page 44: Settings
Settings You can tailor the behaviour of this induction hob to suit your cooking style! There are various settings available for adjustment. While there are no pans on any zone, touch any slider with two fingers and keep it touched for 3 seconds. - Page 45 Settings NOTE! To prevent unintentional adjustment of the 'Con - connected power', Con setting must be confirmed when changed by touching the slider for 3 seconds. A change without confirmation will not be implemented! 3 sec. 3 sec. 3 sec. To exit the menu, touch with two fingers anywhere the slider for 3 seconds.
- Page 46 Settings Table continued from last page hSt - Synchro Start This setting allows the induction hob to automatically activate the suction of the extraction module every time the induction hob is turned (Synchro Start Level on. Depending on the value you set, the suction will automatically start at that speed level when any cooking zone is activated.
- Page 47 Settings Table continued from last page FoA - Firmware update over To receive firmware updates for the cooking hob, you need to be the air paired to the cooking hob via the mobile app. You will receive a notification, or you can check available firmware updates on the Firmware update via Wi-Fi mobile app menu for updates.
-
Page 48: Maintenance
Maintenance Cleaning glass top TIP! Activate the child lock before cleaning the hob. Daily cleaning • Although food spills cannot burn into the glass, we nevertheless recommend you clean the hob immediately after use. • For daily cleaning, a damp cloth with a mild cleaning agent is best. •... - Page 49 Maintenance Cleaning the tower Remove the tower. Rinse the tower daily under the tap with warm water. Clean the tower weekly with water and a little washing-up liquid. The tower can also be cleaned in the dishwasher. The glass trim is not resistant to falls or bumps. WARNING! Replace the tower if the tower's glass trim is damaged.
- Page 50 Maintenance When indicated by the filter indicator, the metal filters must be cleaned by hand or in the dishwasher at low temperatures with a short program. Never put the plastic frames in the dishwasher separately, without metal grease filters. See chapter 'Settings' for filter cleaning settings. NOTE! It is important that the grease filters are thoroughly dried before they are fitted again.
-
Page 51: Filter Indication
Maintenance Filter indication Saturation of grease filter and recirculation filter If only the filter indicator is flashing, the grease filters need to be cleaned. If both the filter indicator and the letter r’ flash in the display, replace the recirculation filter. Grease filter After 10, 20, or 40 hours of operation, the grease filter indicator lights up (depending on the intensity of use). -
Page 52: Troubleshooting
Troubleshooting General NOTE! If you notice a crack in the glass top (however small), switch off the hob immediately and disconnect the power supply (remove the plug from the socket). Then contact the Service Department. Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. - Page 53 Troubleshooting Table continued from last page Symptom Possible cause Solution Zone stops unintended and Zone is overheated. After the hob has cooled down, residual heat indicator is shown. cooking can be continued. A fuse blows as soon as the hob The appliance is incorrectly Check the electrical is switched on.
- Page 54 Troubleshooting Table continued from last page Error code Symptom Possible cause Solution U400 U 400 appears on display Voltage of the mains is too Connect the appliance in with continuous sound high. accordance to rating plate tone. and instructions. E7 appears on display Failed to connect to Wi-Fi Try to connect the device after setting up the Wi-Fi...
- Page 55 Troubleshooting Table continued from last page Symptom Possible cause Solution Home network is not displayed The home network is not on Please check the network during the connection setup 2.4 GHz, the network is hidden, settings. Ensure a 2.4 GHz and process.
-
Page 56: Technical Data
Technical data Information according to regulation (EU) 66/2014 Measurements according EN60350-2 / EN 30-2-1 HIHD854GF / HIHD854MM Model identification ASKO Trademark Induction hob with integrated extractor Type of hob Number of electric cooking zones and/or areas Induction cooking zones and cooking... -
Page 57: Eu Product Fiche
17.7 dBm EIRP average (calculated) Maximum antenna gain 2.7 dBi ASKO, with this, declares that the induction hob with integrated extractor including radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:... -
Page 58: Environmental Aspects
Environmental aspects Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. -
Page 59: Installation
Installation Safety Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 60: Preparations For Installation
Installation Preparations for installation Free space around the appliance min. 550 mm min. 40 mm min. 35 mm Appliance dimensions Cut-out in the worktop Flush-mount Appliances without decorative frames are suitable for flush mounting. - Page 61 Installation Kitchen cabinet dimensions for recirculation box return flow opening for flow opening for plasma filter recirculation mode NOTE! • * For optimal hob performance, a ventilation gap of ≥6 mm is advised. • Minimum cabinet width: 800 mm. • For installation and service, the back panel must be dismountable.
- Page 62 Installation • The voltage, frequency, power and the country for which the appliance has been designed are shown on the appliance rating plate. • For class I appliances, check that your home’s electrical system provides proper earthing. • The wall plug socket and plug should always be accessible. •...
- Page 63 Installation NOTE! The power cord connection is located at the front of the appliance. At least 900 mm length of the power cord is required to lead it to the socket designated location behind the appliance. Determining the existing electrical connection NOTE! Check the voltage.
- Page 64 Installation WARNING! Current limiter setting must be set according to your connection and circuit breakers by a registered and qualified installer. Please read the safety regulations and the installation instructions carefully. NOTE! Setting a lower value of the Current limiter parameter will cause a reduced performance of the induction hob.
- Page 65 Installation 1. Unscrew and remove the cover of the MCU enclosure. 2. Remove the jumper of the sensor connection. 3. Connect the wires of the cord to the sensor connection. 4. Use the available strain relief clamp to secure the cord. 5.
-
Page 66: Built-In
Installation WARNING! The service department shall only be responsible for repairing and servicing the cooking hob. Consult your specialized kitchen equipment dealer regarding re-installing the flush-mount cooking hob. Built-in This unit can be connected to various discharge systems: To an exhaust duct (outlet) To a recirculation filter After filtration through grease filters, the extracted After filtration through grease filters and the odour... - Page 67 Installation Preparation 2-3 mm 1. Hook the Y-duct into the lower edge of both motor housings and tilt the Y-duct up. 2. Attach the Y-duct to the motor housings with the two screws. 3. Remove the drawers and the back panel from the kitchen cabinet. 4.
- Page 68 Installation Connecting to a recirculation filter 1. Place the appliance in the cut-out in the worktop. 2. Mark the centre of the cabinet bottom with a strip of masking tape. 3. Mark the corners of the cut-out using the template provided. 4.
- Page 69 Installation 12. Remove the cover of the box and screw the box in place from the inside. 13. Fix the position of the coupling with a screw from the top. Do not forget to pre-drill a hole for the screw. 14.
- Page 70 Your notes...
- Page 71 Your notes...
- Page 72 The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 926051 -a11 We reserve the right to make changes.
