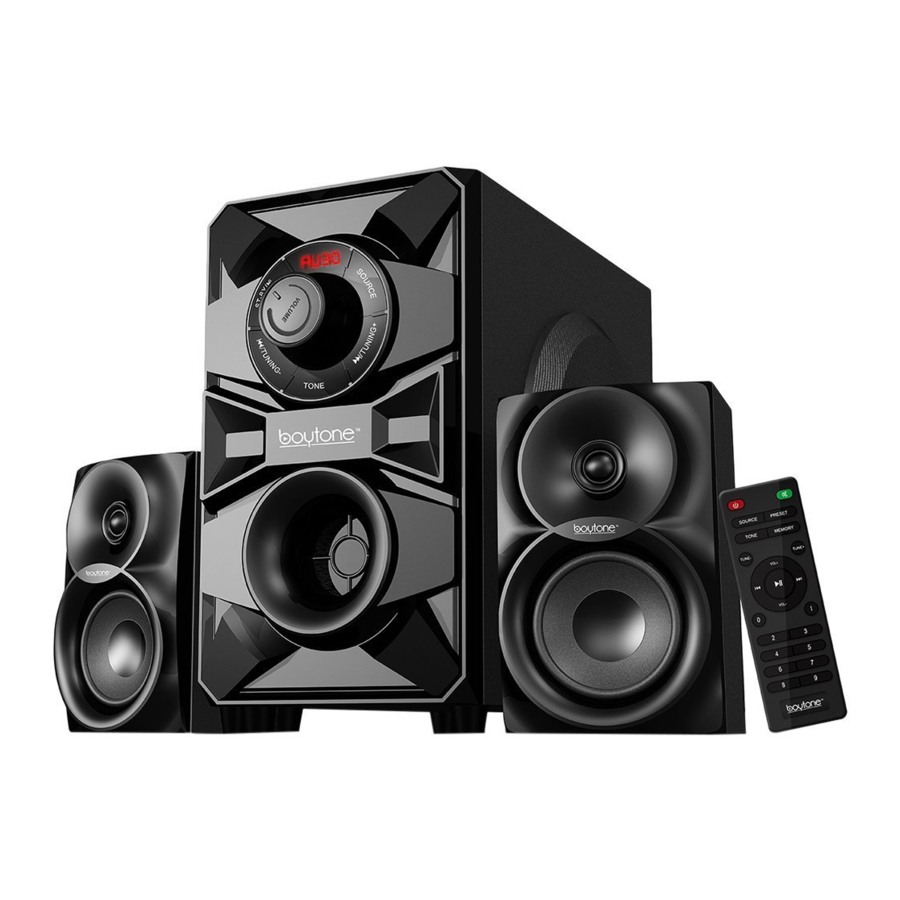

boytone BT-328F - Speaker System Manual

Operation explanation

SPECIFICATIONS
Output Power: 20W+10Wx2(RMS)
Drive Units: 3" x2 full range magnetically shielded + 5.25" subwoofer
Frequency Response:
Satellites: 120Hz-20KHz
Subwoofer: 20Hz-170Hz
Separation: 40 dB
S/N: 60dB
Distortion: 0.5%(1K, 1W)
Power Supply: ~120V/60Hz
Dimensions:
Subwoofer: W186xH312xD354(mm)
Satellite: W105xH170xD94(mm)

Features:

• ŸQuality 2.1 speaker system with built-in amplifier
• ŸFull audio spectrum performances, ideal for your favourite entertainment from Mp3, Mp4, CD/DVD movies and digital playbacks
• ŸSpecially designed woofer cabinet for bass and resolution
• ŸComes with remote control and 3.5mm stereo connection

Package contents:

Front panel

ST-BY/PLAY/PAUSE-----Press to turn on speaker, long press into stand-by. PLAY/PAUSE on the USB/SD/BT mode.
SOURCE-----Change the input mode.
VOLUME-/+ -----Volume down/up.
TONE ----- Press TONE key to select the TREBLE and BASS. And use the volume knob to adjust the TREBLE -6~+6, BASS 00~30.
TUNING+/NEXT -----Press once to increase the FM frequency 0.1M, long press to the semi-automatic search for radio. In USB/SD/BT mode, press " NEXT " play next song.
TUNING-/PREVIOUS -----Press once to reduce the FM frequency 0.1M, long press to the semi-automatic search for radio. In USB/SD/BT mode, press " PREVIOUS " play previous song.

Using the Remote Control

1. STAND-BY
2. MUTE
3. SOURCE
4. TONE
5. MEMORY
6. 0~9
7. VOL+/
8. TUNE+/
9. PRESET
10. PREV/|<<
11. NEXT/>>|
12. PLAY/PAUSE

1. "ST-BY" - standby mode
2. "MUTE" - activates or deactivates mute.
3. "SOURCE" - select the AUX, DVD,USB/SD,FM,BL input modes and the LED display will show "Au18" for AUX mode, "Du18" for DVD mode, "87.5" for FM mode and "BL" for Bluetooth mode.
4. "TONE" to adjust "TREBLE" and "BASS" Use "VOL+/-" to increase or decrease "TREBLE" or "BASS" levels.
5. When in FM Radio mode, press"MEMORY" and the station displayed will flash/blink. The machine is in station memorization mode. You can change the station by pressing "NEXT"or "PREV" and pressing "PLAY/PAUSE" will save that station for that station number. Automatic seek and save can be done by pressing "MEMORY" for 3-5 seconds
   (Note: Previous saved channels will be deleted when you press "MEMORY"for 3-5 seconds.

6. When in USB/SD mode. "NEXT/>>" for next song; "PREV/<<" for previous song; "PLAY/>/PAUSE/||" for play/pause; pressing "0-9" on the remote will play the corresponding song.
7. VOL+/- to increase or decrease volume.
8. "TUNING-/TUNING+ to adjust FM Radio frequency. Long press to fast scroll through frequencies without pause.
9. "PRESET" - Preset selection

11. "NEXT" for next song in USB/SD mode.
12. "Play/Pause" to play and pause...but you definitely knew tha

CONNECTING YOUR BLUETOOTH DEVICE:

1. Press "SOURCE" until you are in "bL" mode. You will hear beeping.
2. Activate Bluetoothe and search for "BT Speaker" on your transmitting device (phone, tablet, pc, etc.)

Rear panel

1. ANTENNA
2. AUX/DVD INPUT:
   Connet to sound sources such as computer, CD Player, MP3,etc.
3. Output: Connet the satellite speakers.
4. AC IN: AC Power cord

System Connection Diagram

SPEAKER TERMINALS
Connect the left & right channel satellite to 2.1 speaker output terminals.

NOTE

• Do not leave objects generating magnetism near the speakers

Please pay attention to the following items

* if the remote control doesn't function, it is probably the battery of remote control being dead. Change 'em.
