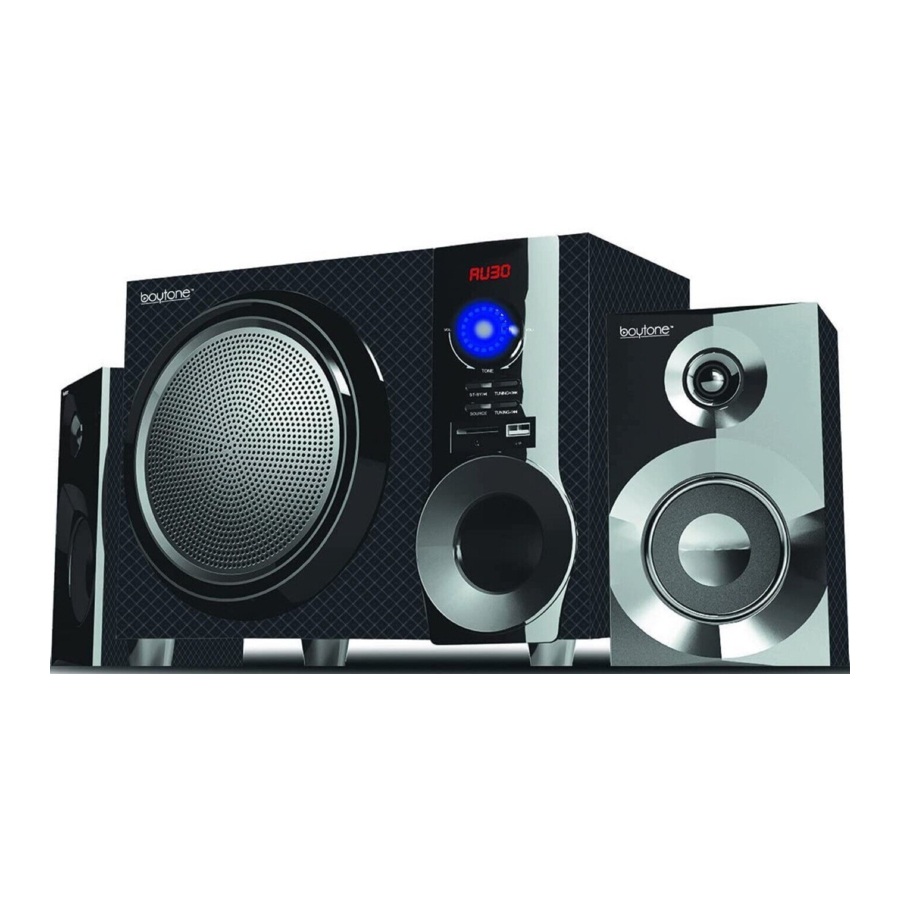

boytone BT-210F - Speaker System Quick Start Guide

Table of Contents

Contents

1 FEATURES
2 Overview
3 Remote Control
4 BLUETOOTH SETUP
5 FN TUNER SETUP
6 SPECIFICATIONS
7 Documents / Resources
- 7.1 Download manual

FEATURES

2500W PMPO
Analog audio input.
MP3 playback on USB or SD/MMC.
Stereo FM radio.
Buillt-in multi channel power amplifier.
Connect via Analog to your PC, DVD, TV etc.
Specially designed woofer cabinet for bass and resolution
Remote Control

Overview

Volume adjustment +/-
Play/Pause/Stand-by
Input/Source
Volume adjustment +/-
Tone: adjust bass/treble
Tuning+/Next>>
Tuning-/Previous<<

Remote Control

STANDBY: turn unit on or off
0~9
Source/Input
INPUT: cycle selection between input USB/SD/FM/AUX/BT.
VOLUME+
PREV: skip to the previous track
TUNING+
MUTE
PRESET
MEMORY
PLAY/PAUSE: begin play or pause the USB or SD/MMC. Hold down to scan radio stations.
NEXT
VOLUME-
TUNING+

BLUETOOTH SETUP

SELECT BLUETOOTH MODE USING THE "INPUT" BUTTON ON THE UNIT (5) OR ON THE REMOTE (11).
YOU WILL SEE "BT" FLASHING ON THE DISPLAY.
SEARCH FOR DEVICES FROM YOUR PHONE/TABLET/PC/LAPTOP
LOOK FOR "BLUETOOTH SPEAKER" IN YOUR SEARCHED DEVICES.
CONNECT AND PAIR. VOILA!

FN TUNER SETUP

GO TO FM MODE WITH "INPUT/SOURCE" BUTTON AND TUNE TO DESIRED STATION.
PRESS "MEMORY" BUTTON AND "CHx" WILL BLINK. CLICK NEXT OR PREVIOUS TO SELECT DESIRED CHANNEL.
CLICK "PLAY/PAUSE" TO SAVE CHANNEL.
NOTE: TO SCAN, HOLD DOWN "MEMORY" BUTTON

SPECIFICATIONS

Output Power: 35W+15Wx2(RMS)
Frequency response:
Satellites: 120Hz-20KHz
Subwoofer: 20Hz-170Hz
Distortion: < 0.5% (1K, 1W)
S/N: >70dB
Power Supply: ~120V 60Hz
