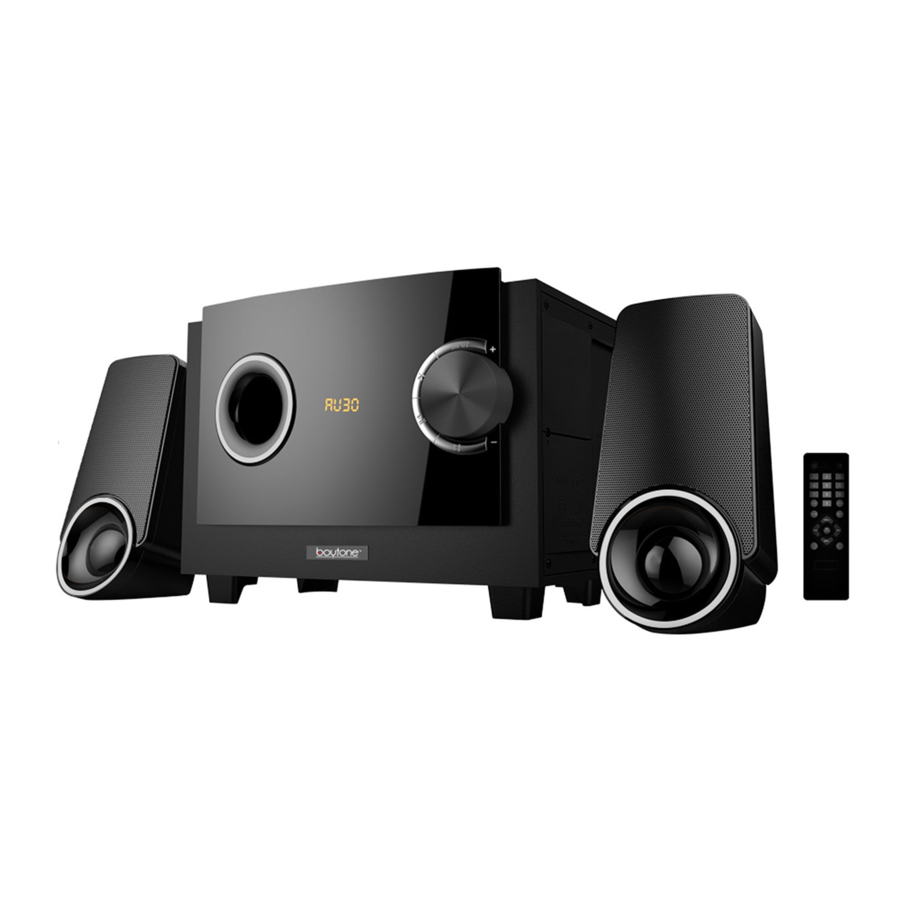

boytone BT-3129F - Sound System Quick Start Guide
FEATURES
- 2200 W PMPO
- Analog audio input.
- MP3 playback on USB or SD/MMC.
- Stereo FM radio.
- Buillt-in 3 channel power amplifier.
- Connect via Analog to your PC, DVD, TV etc.
- Remote Control
OVERVIEW
- Input
- Previous
- Volume+/- adjustment
- Next
- Play/pause
- USB card reader
- SD card reader
REMOTE CONTROL
- STANDBY: turn unit on or off
- 1-0: enter radio station or track number
- EQ MODE: choose audio output sound field effect 4.INPUT: cycle selection between input USB/SD/FM/AUX/BT.
- VOLUME+,-: increase volume or reduce the volume
- PREV: skip to the previous track
- MUTE: mute the sound 8.100+: select music track after 100
- RPT: repeat an audio track
- NEXT: skip to the next track
- PLAY/PAUSE: begin play or pause the USB or SD/MMC. Hold down to scan radio stations.
BLUETOOTH SETUP
- SELECT BLUETOOTH MODE USING THE "INPUT" BUTTON ON THE UNIT (5) OR ON THE REMOTE (11).
- YOU WILL SEE "BT" FLASHING ON THE DISPLAY.
- SEARCH FOR DEVICES FROM YOUR PHONE/TABLET/PC/LAPTOP
- LOOK FOR "BLUETOOTH SPEAKER" IN YOUR SEARCHED DEVICES.
- CONNECT AND PAIR. VOILA!
FM TUNER SETUP
- SELECT RADIO MODE USING THE "INPUT" BUTTON.
- TO SCAN - HOLD DOWN THE PLAY/PAUSE BUTTON ON THE UNIT OR REMOTE.
- THE UNIT WILL AUTO SCAN AND SET YOUR STATIONS IN ORDER AND DESIGNATE AS "CH1, CH2, ETC."
BROWSE USING PREVIOUS/NEXT
SPECS
Output Power: 116W+6Wx2
Frequency response: 40Hz-20KHz
Impedance:
Subwoofer 4 Ohm.
Satellite 8 Ohm
SIN Ratio: > 80dB
Isolation sensitivity: > 45dB
Distortion: < 0.3% at 1W output @1KHz
Subwoofer speaker 4 "system
Satellite speaker 3 "system
Power. AC110·120V 50/60Hz
