boytone BT-424F User Manual

注：A4大小，105g铜版纸黑色双面印刷，根据虚线对折，封面在前.C8601KBU-HC1A(BT-424F)--F38-18600-036--刘东兴

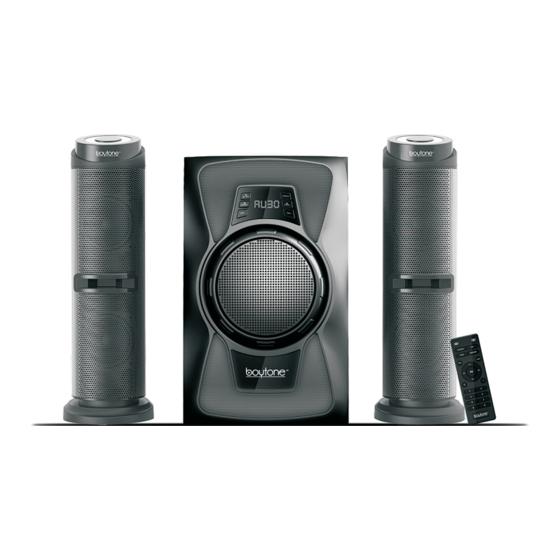

2.1CH MULTIMEDIA SPEAKER SYSTEM
BT-424F
DEAR CUSTOMER:
Thank you to buy the product !
Prior to first use, please read the manual carefully.
1. /ST-BY
2. /TUNING-
3. VOL-
4. VOL+
5. /TUNING+
6. SOURCE
ST-BY/PLAY/PAUSE-----Press to turn on speaker, long press
PLAY/PAUSE on the USB/SD/BT mode.
SOURCE-----Change the input mode.
VOLUME-/+ -----Volume down/up.
TUNING+/NEXT -----Press once to increase the FM frequency 0.1M,
long press to the semi-automatic search for radio.
In USB/SD/BT mode, press " NEXT " play next song.
TUNING-/PREVIOUS -----Press once to reduce the FM frequency 0.1M,
long press to the semi-automatic search for
radio. In USB/SD/BT mode, press " PREVIOUS "
play previous song.
(1)
(2)
(3)
into stand-by.
NO.2

Operation explanation:

22W+14Wx2(RMS)
2 5.25" subwoofer
~120V/ 60Hz

Features:

Ÿ
Quality 2.1 speaker system with built-in amplifier
Ÿ
Full audio spectrum performances, ideal for your favourite entertainment
from Mp3, Mp4, CD/DVD movies and digital playbacks
Ÿ
Specially designed woofer cabinet for bass and resolution
Ÿ
Comes with wired remote control and 3.5 stereo connection
Package contents:
subwoofer cabinet
satellite speakers
remote control
User manual
Audio input cord

How to use the remote control

How to use the remote control
(9)
(1)
(6)
(5) (10)
(2)
SOURCE LED
(4)
(11)
(3)
TONE MEMORY
(12)
(4)
TUNE- TUNE+
(5)
VOL+
(13)
(14)
(6)
(7)
VOL-
(8)
1. Press "ST-BY" LED showing "AU18", it is AUX mode playing state.
2."MUTE" means to activate or deactivate mute.
3."SOURCE" means you can choose AUX, DVD, USB/SD, FM, BT input mode,
at the same time, the LED will show "Au18" means AUX mode, "Du18" means
DVD mode. "87.5" means FM mode, "BT18" means BT mode.
4."TONE" means you can choose "TREBLE" and "BASS" "VOL+/-" means
you can increase or decrease volume of " TREBLE " or "BASS".
5. When enter into FM mode, press "MEMORY" the number on the LED will
Blink. this means the machine is under save channel state. You can change the
blinking number by pressing "NEXT" or "PREV", press "PLAY/PAUSE" you can
save the channel into same number. it will enter into automatic search channel
and automatic save channel when pressing "MEMORY" for 3-5 seconds
(noted: the channel which you saved before will be deleted when you press
"MEMORY" for 3-5 seconds.
W200xH330xD366(mm)
Ф116xH366(mm)
1 pc
2 pcs
1 pc
1 pc
1 pc
NO.1
1. ST-BY
2. SOURCE
3. TONE
4. TUNING-
5. VOL+
6. PREVIOUS
7. VOL-
8. 0~9
9. MUTE
10. LED effect
11. MEMORY
12.TUNING+
13. PLAY/PAUSE
14. NEXT
NO.3
