boytone BT-328F Manual

www.boytone.com

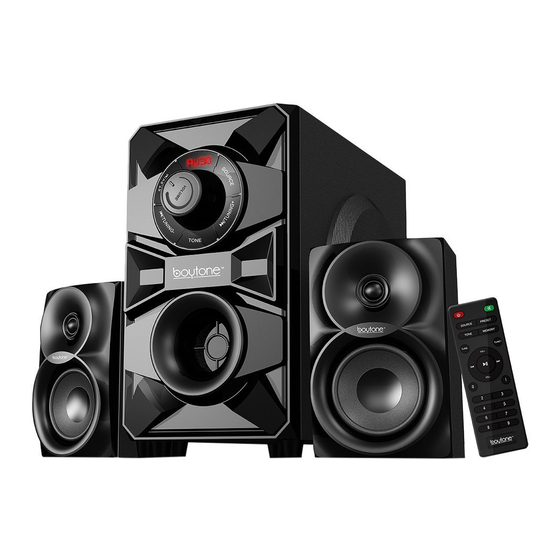

2.1CH MULTIMEDIA SPEAKER SYSTEM
BT-328F
Thank you for your purchase of an authenic
BOYTONE® product. Prior to first use, please read
this manual carefully.
Front panel
1. ST-BY/
2. SOURCE
(1)
3. VOLUME+/-
(6)
4. TONE
(4)
5. TUNING+/
6. TUNING-/
ST-BY/PLAY/PAUSE-----Press to turn on speaker, long press
PLAY/PAUSE on the USB/SD/BT mode.
SOURCE-----Change the input mode.
VOLUME-/+ -----Volume down/up.
TONE ----- Press TONE key to select the TREBLE and BASS. And use the
volume knob to adjust the TREBLE -6~+6, BASS 00~30.
TUNING+/NEXT -----Press once to increase the FM frequency 0.1M, long
press to the semi-automatic search for radio.
In USB/SD/BT mode, press " NEXT " play next song.
TUNING-/PREVIOUS -----Press once to reduce the FM frequency 0.1M, long
press to the semi-automatic search for radio.
In USB/SD/BT mode, press " PREVIOUS " play
previous song.
into stand-by.
NO.2
Operation explanation:
20W+10Wx2(RMS)
3" x2
6
~120V/60Hz
Features:
Ÿ
Quality 2.1 speaker system with built-in amplifier
Full audio spectrum performances, ideal for your favourite entertainment
Ÿ
from Mp3, Mp4, CD/DVD movies and digital playbacks
Ÿ Specially designed woofer cabinet for bass and resolution
Ÿ Comes with remote control and 3.5mm stereo connection
Package contents:
subwoofer cabinet
satellite speakers
remote control
User manual
Audio input cord
FM ANT
Using the Remote Control
(1)
(2)
(3) PRESET
SOURCE
(3)
(4)
TONE MEMORY
(5)
(8)
TUNE- TUNE+
(7)
VOL+
(10)
(7)
VOL-
(6)
1. "ST-BY" - standby mode
2."MUTE" - activates or deactivates mute.
3."SOURCE" - select the AUX , DVD ,USB/SD,FM,BL input modes and the LED
display will show "Au18" for AUX mode, "Du18" for DVD mode, "87.5" for FM
mode and "BL" for Bluetooth mode.
4."TONE" to adjust "TREBLE" and "BASS" Use "VOL+/-" to increase or
decrease "TREBLE" or "BASS" levels.
5. When in FM Radio mode, press"MEMORY" and the station displayed will
flash/blink. The machine is in station memorization mode. You can change
the station by pressing "NEXT"or "PREV" and pressing "PLAY/PAUSE" will
save that station for that station number. Automatic seek and save can be
done by pressing "MEMORY" for 3-5 seconds
(Note: Previous saved channels will be deleted when you press
"MEMORY"for 3-5 seconds.
5.25" subwoofer
W186xH312xD354(mm)
W105xH170xD94(mm)
1 pc
2 pcs
1 pc
1 pc
1 pc
1 pc
NO.1
1. STAND-BY
(2)
2. MUTE
(9)
3. SOURCE
(5)
4. TONE
(8)
5. MEMORY
(12)
6. 0~9
(11)
7. VOL+/-
8. TUNE+/-
9. PRESET
10. PREV/|<<
11. NEXT/>>|
12.PLAY/PAUSE
NO.3
