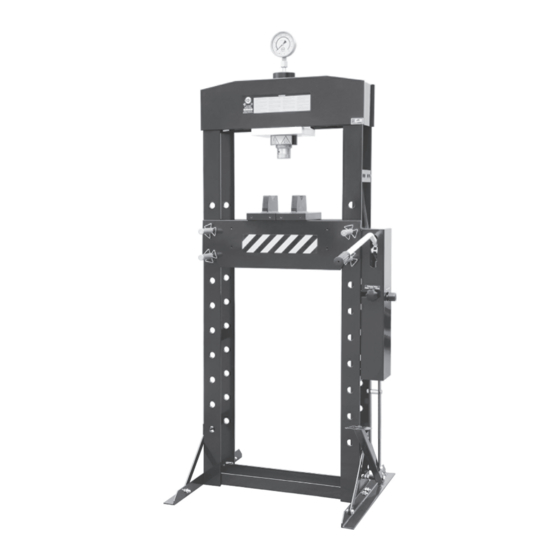

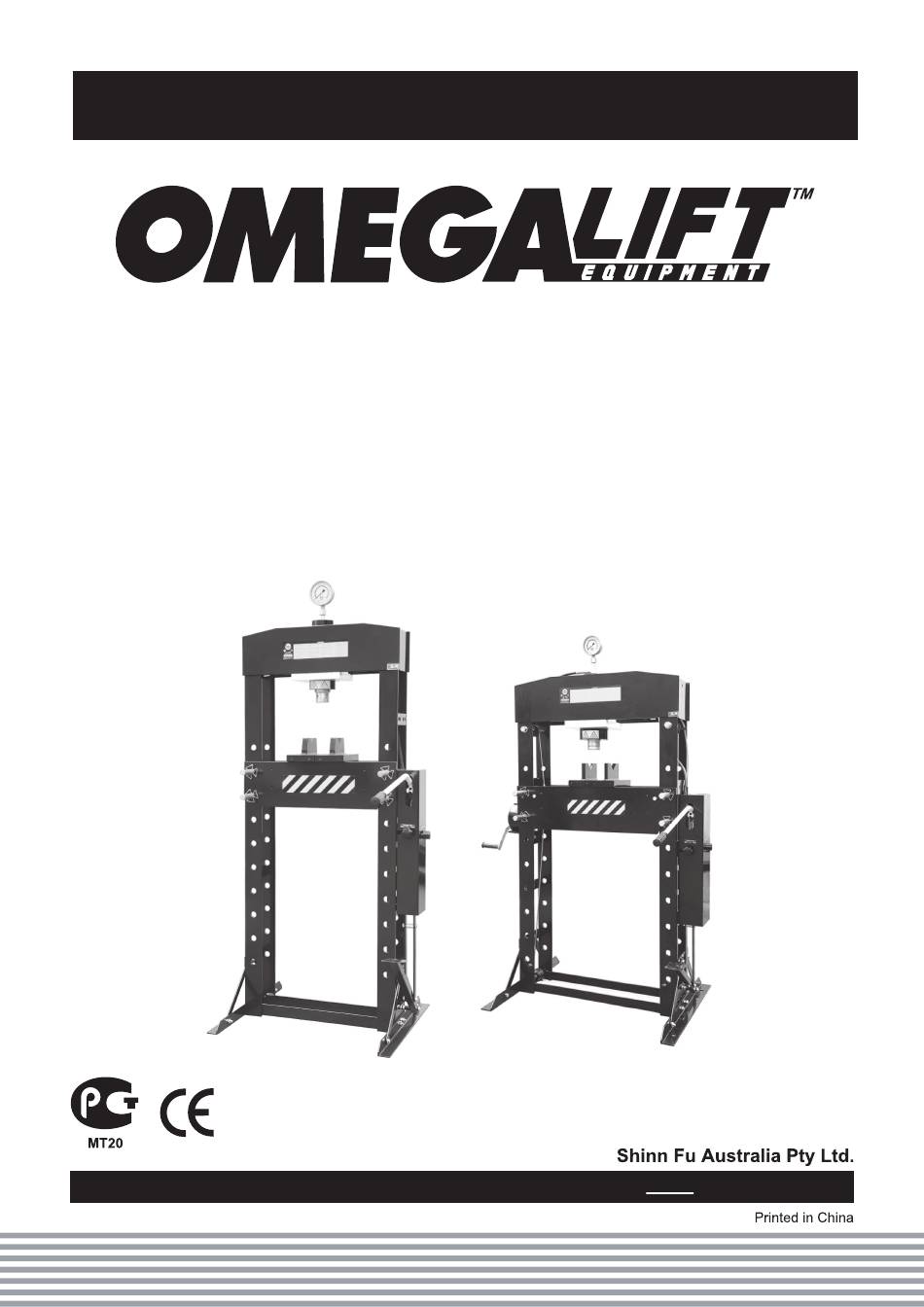

- Page 1 Operating Instructions & Parts Manual Shop Press Model Capacity 61154 15 TON 61204 20 TON 61304 30 TON 61504 50 TON Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
-
Page 2: Safety And General Information
Use qualified personnel to maintain the press in good condition. Keep it clean for the best and safest performance. Maximum load (61154 : 15 Ton, 61204 : 20 Ton, 61304 : 30 Ton, 61504 : 50 Ton). DO NOT exceed this rated capac- ity. -
Page 3: Before First Use
3. ASSEMBLY Use the exploded drawing as your guide to assemble the press. Lay all parts and assemblies out in front of you before starting with assembly. The following procedure is recommended : Open the package and place all the parts and assemblies in front of you Disconnect the pump (1) from the frame (2) and remove it from the box Place the press bed pins (3) into the holes (4) under the press bed (5) before removing the frame (2) from the box (only with 50 Ton version). - Page 4 WARNING Failure to comply with the Study, understand, and follow ALWAYS wear protective gear CRUSH HAZARD. Keep hands and feet away from the cylinder, following warnings may result all instructions provided with when operating hydraulic loading area and work piece during operation. NEVER work on, in personal injury as well as and on this device before use.
-
Page 5: Maintenance
5. OPERATING INSTRUCTIONS WARNING ! Ensure that you read, understand and apply the safety instructions and warnings before use. Ensure that you have familiarized yourself thoroughly with the product and the hazards associated with its improper use. 5.A Place the delta plates (12) on the press bed (5), then place the workpiece on the delta plates. 5.B Turn the valve on the side (14) counterclockwise to set the plunger on low speed mode for safety. -
Page 6: Spare Parts
61154 SPARE PARTS 26200 27100 33100 18120 41200 50200 18110 31420 41 42 43 42 16 12 41 56 31410 16 12 12 13 04100... - Page 7 61204 SPARE PARTS 26200 27100 18120 41200 33100 18110 50200 39 40 31420 31410 12 13 12 1314 04100...
- Page 8 61304 SPARE PARTS 26200 27100 33100 18120 41200 18110 50200 31410 31420 04100...
- Page 9 61504 SPARE PARTS 26200 27100 P24 P25 P26 P27 50200 18120 41200 33100 34/35/36 18110 64/23 35/36/37 31410 31420 35/36/37 35/36/37 04100...
-
Page 10: Specifications
61154/61204/61304/61504 SPECIFICATIONS Working Bed Width Side Stroke Product Size (mm) Capacity Stroke Range (mm) (mm) (mm) Model (Ton) (mm) F1-F2 61154 1730 1980 141 - 1185 61204 1719 1990 138.5 - 1128.5 61304 1773 2009 151 - 1031 61504 1030... -
Page 11: Spare Parts List
61154/61204/61304/61504 SPARE PARTS LIST SPP# Description 61154 61204 61304 61504 04100 Handle 18110 Hose - Pump (with o-ring) 18120 Hose - Cylinder (with o-ring) 26200 Cylinder unit ... -
Page 12: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY 1. This product is covered by an express warranty for 12 months from the date of purchase by the original purchaser. Subject to the conditions of this warranty Shinn Fu Australia Pty Ltd or its authorised repair agents will replace the product or perform necessary service on the product without charge for parts or labour if the product is found to be faulty within the warranty period.
