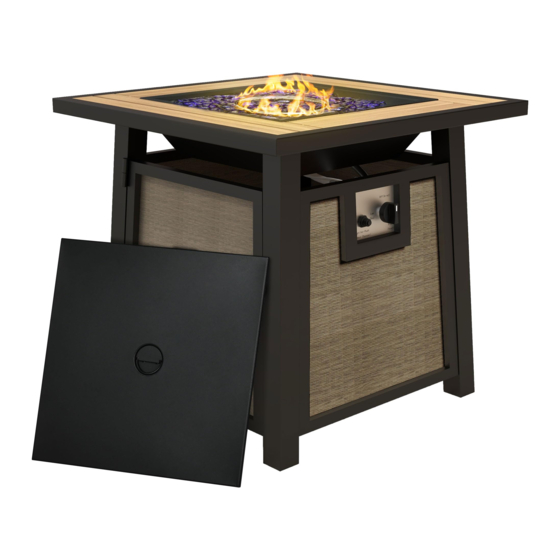

- Page 1 IN231100155V01_UK 842-338V70 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTIONS...
- Page 5 +1(spare) M6x14 mm Bolt +1(spare) M6x25 mm Bolt M5x10 mm Bolt +1(spare)
- Page 6 * Connect four legs(A,B,C,D) to the table top (E) by using eight M6x10 mm bolts (AA). Please don't tighten hardware at this time. Assembling the Side Panel with Window * Connect the Side Panel with Window(M) to the Front Leg(A) and Back Leg (B) by using four M6x10 mm bolts(AA).
- Page 7 Assembling the Side Panels *Connectthe Knob(J)to the Door Panel(I) * Connect two Side Panels(H) to by using one M6x25mm bolt(CC). the Back Leg (B,C) and Front Leg(D) by using eight M6x10 mm bolts(AA) *Then place the Door Panel(I) on the Front Leg(D) as shown in the picture on the right glass beads * Attach the Gas Tank Support(K) to the four legs(A,B,C,...
- Page 8 *Put the cylinder into the Gas Tank Support (K), and secure the cylinder by tightening the screw in the gas tank support. Connect the hose and regulator to cylinder. *Open the igniter and place the AAA battery (NOT INCLUDED) into the igniter. Then tighten clockwise. Note: The Cover(L) must be removed when the burner is in operation.
