PARTS LIST
Part
Qty
A
1
Stretcher
B
2
Table Leg Assembly
C
4
1/4-20 x 1/2 Button Head Cap Screw
D
1
Table Top Surface
E
8
#10-10 X 1.075 Tapping Screw
F
4
Table Glide
TOOLS NEEDED
#2 Phillips
5/32"
Allen
Screw
Wrench
Driver
G I B B O N S T A B L E
Description
Hand
1/8"
Drill
Drill Bit

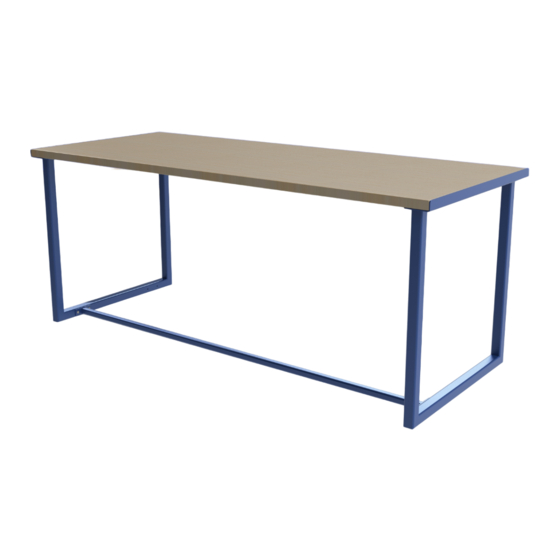

GIBBONS TABLE
hellomontisa.com
REV 1 3.18.24
Advertisement
Related Manuals for MONTISA GIBBONS
Summary of Contents for MONTISA GIBBONS
- Page 1 GIBBONS TABLE REV 1 3.18.24 PARTS LIST G I B B O N S T A B L E Part Description Image Stretcher Table Leg Assembly 1/4-20 x 1/2 Button Head Cap Screw Table Top Surface #10-10 X 1.075 Tapping Screw...
- Page 2 GIBBONS TABLE ASSEMBLY INSTRUCTIONS Place the Table Top (D) upside down. Center the Position the Stretcher (A) onto one of the sets assembled Stretcher/Table Leg Assembly (A-B) of holes on the bottom of the Table Leg onto the Table Top (D). Mark Leg Assembly (A-B) Assembly.
