PARTS LIST
Part
Qty
A
4
1/4-20 X .50 HEX WASH HD WHIZ-LOCK SCREWS
B
4
1/4-20 KEPS NUTS
C
4
#14 x 1 TORX DRIVE WOOD SCREWS
D
1
DOOR/DRAWER LOCK ASSEMBLY WITH KEYS
TOOLS NEEDED
7/16"
3/8"
Wrench
Socket
Wrench
4 1 3 5 C A B I N E T
Description
Hand
5/32"
Drill
Drill Bit

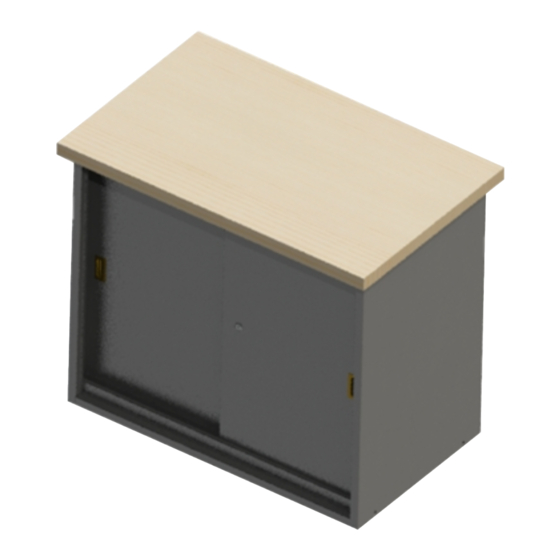

CABINET ASSEMBLY
T-30
Torx Bit
4135
REV 1 4.6.2023
hellomontisa.com
Advertisement
Related Manuals for MONTISA 4135
Summary of Contents for MONTISA 4135
- Page 1 4135 CABINET ASSEMBLY REV 1 4.6.2023 PARTS LIST 4 1 3 5 C A B I N E T Part Description Image 1/4-20 X .50 HEX WASH HD WHIZ-LOCK SCREWS 1/4-20 KEPS NUTS #14 x 1 TORX DRIVE WOOD SCREWS...
- Page 2 4135 ASSEMBLY INSTRUCTIONS If installation includes a wood or laminate top, For ganging multiple cabinets, use 1/4-20 center top surface on cabinet. Screws (Part A) and KEPS Nuts (Part B). Mark the hole locations for drilling on bottom side There are (4) hole locations for ganging of top surface.
