PARTS LIST
5 0 0 3 W O R K B E N C H D R A W E R S
Part
Qty
A
3
DRAWER PULLS, 3.78" CHROME
B
6
8-32 X.31 PH TR HD MS
C
4
1/4-20 X .50 WHIZ-LOCK SCREWS, 3/8" HEX DRIVE
D
4
1/4-20 KEPS NUTS, 7/16" HEX DRIVE
E
4
#14 x 1 TORX DRIVE WOOD SCREWS
TOOLS NEEDED
Phillips-Head
7/16"
Screwdriver
Wrench
WORKBENCH DRAWERS ASSEMBLY
Description
3/8"
Hand
Socket
Drill
Wrench

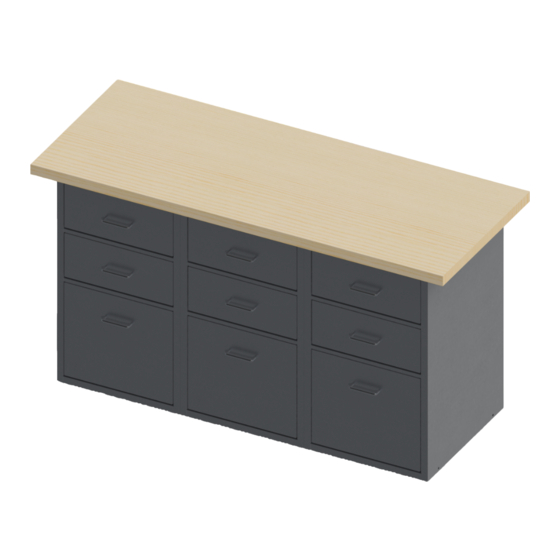

Image is shown with a quantity of 3
workbench drawer units ganged together.
5/32"
T-30
Drill Bit
Torx Bit
5003
REV 1 6.12.2023
hellomontisa.com
Advertisement
Related Manuals for MONTISA 5003
Summary of Contents for MONTISA 5003
- Page 1 5003 WORKBENCH DRAWERS ASSEMBLY REV 1 6.12.2023 Image is shown with a quantity of 3 workbench drawer units ganged together. PARTS LIST 5 0 0 3 W O R K B E N C H D R A W E R S...
- Page 2 5003 ASSEMBLY INSTRUCTIONS Install Drawer Pulls (Part A) using (2) For ganging multiple workbench drawer units 8-32 x .31" long screws provided (Part B). together, use 1/4-20 Screws (Part C) and KEPS Nuts (Part D). There are (4) hole locations for ganging present on each side panel.
