Summary of Contents for Hunter Lakeway 52582

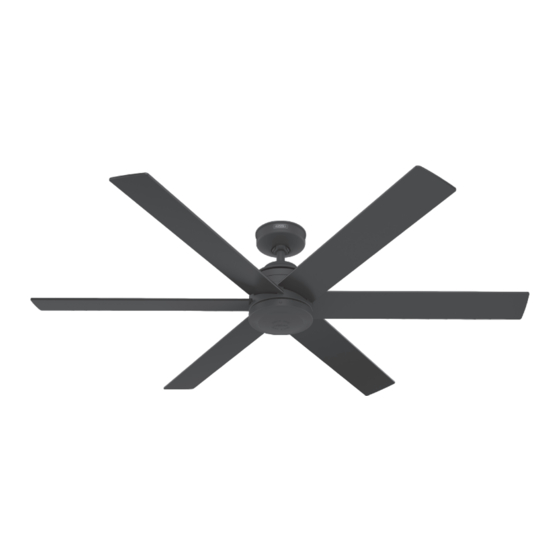

- Page 1 3D INTERActive GUIDE Download now for a speedy set up and a seamless install. Lakeway Installation Manual Model: 52582 Matte Black 52767 Fresh White Fan weight ±2 lbs: 17.6 lbs (8.0 kg) ©2023 Hunter Fan Co. PG4168 r101123...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. - Page 5 You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box.
-
Page 6: Hanging The Fan
1886 Installing the Downrod Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out the guide at the end of this manual. DO NOT NOTICE REMOVE SETSCREW COMPLETELY To prevent damage to fan,... -
Page 7: Installing The Canopy
1886 Making Connections for the Receiver and the Fan From receiver (not needed) From receiver From receiver From fan Connect wiring harness from ceiling Connect the wiring harness from fan to the Connect the grounding wire plug from the bracket to the wiring harness from the wiring harness from the receiver. -
Page 8: Installing The Blades
1886 Installing the Blades: Put the blade washers found in the hardware bag onto the blade screws found in the hardware bag. Then install the blade screws to secure each blade to the fan. Repeat x6 Blade Screw Blade Washer Note: Fan style may vary. - Page 9 1886 Installing the Switch Housing and Cap 2 of 3 1 of 3 Switch Housing Switch Housing Screw Screw Align the keyhole slots in the upper switch housing with the two screws you just installed. Lift the upper Partially install two switch housing screws, found switch housing so that the keyhole slots engage the two in the hardware bag, halfway into the motor...
-
Page 10: Preparing The Remote
“How do I properly install multiple remote-controlled fans?” for information on how to correct this issue. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes. Ceiling Bracket... -
Page 11: Limited Lifetime Warranty
1-888-830-1326 use of improper parts or accessories, failure to provide maintenance to the fan, or acts of Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. God (e.g. flood). ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND What Does This Warranty Cover? WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
