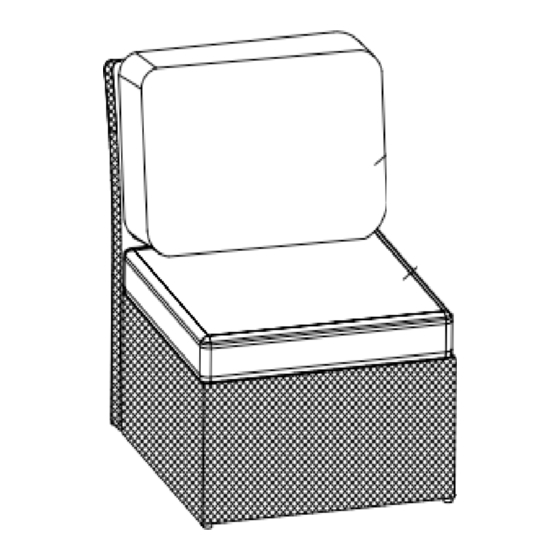

SONOMA BRAMPTON ARMLESS CHAIR ASSEMBLY INSTRUCTIONS
PART LIST
FIGURE
A
B
C
D
E
F
G
SAVE THESE INSTRUCTIONS
STYLE #: 71SRRWK02
ASSEMBLE ON A FLAT, PROTECTED SURFACE
QUANTITY
1 PC
1 PC
1 PC
1 PC
4 PCS + 1 PC
4 PCS + 1 PC
1 PC
DESCRIPTION
BACK
SEAT
SEAT CUSHION
BACK CUSHION
BOLT
(M6*40MM)
FLAT WASHER
ALLEN WRENCH
Page 1/2
Advertisement
Related Manuals for Sonoma 71SRRWK02
Summary of Contents for Sonoma 71SRRWK02
- Page 1 SAVE THESE INSTRUCTIONS SONOMA BRAMPTON ARMLESS CHAIR ASSEMBLY INSTRUCTIONS STYLE #: 71SRRWK02 ASSEMBLE ON A FLAT, PROTECTED SURFACE PART LIST FIGURE QUANTITY DESCRIPTION 1 PC BACK SEAT 1 PC 1 PC SEAT CUSHION 1 PC BACK CUSHION BOLT 4 PCS + 1 PC...
- Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 71SRRWK02 STEP 1 A. PLACE SEAT (B) ON ITS SIDE ON A FLAT, PROTECTED SURFACE. B. CONNECT CHAIR BACK (A) TO SEAT (B) WITH FLAT WASHER (F) AND BOLT (E) USING ALLEN WRENCH. TIGHTEN COMPLETELY.
