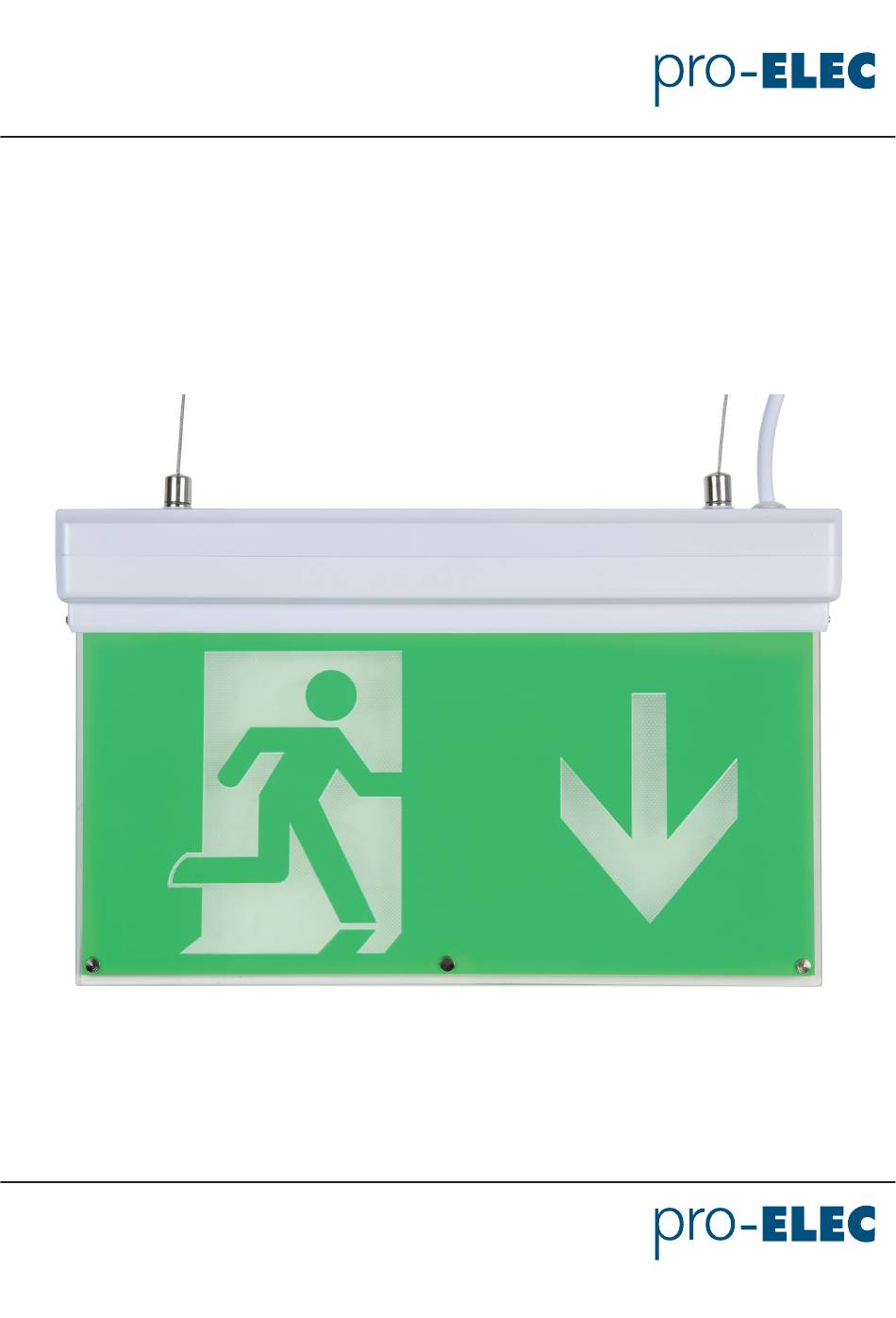

- Page 1 User Manual Emergency Exit Sign 4 in 1 Part Number: PELL0302 Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <1> 30/08/23 V1.0...
- Page 2 Important Information • C heck the pack and make sure you have all of the parts listed on the front of this booklet. If not,contact the outlet where you bought this product. • A s the buyer, installer and / or user of this product it is your own responsibility to ensure that this fitting is fit for the purpose for which you have intended it. • Switch off the mains before commencing installation and remove the appropriate circuit fuse or lock off MCB. • The lamps&batteries supplied with this fitting are consumable parts and therefore may be outside of any warranty offered. • This unit is suitable for indoor use only. • T his product is designed for permanent connection to fixed wiring: this must be a suitable circuit (protected with the ap- propriate MCB or fuse). • B efore making fixing hole(s),check that there are no obstructions hidden beneath the mounting surface such as pipes or cables. • T he chosen location of your new fitting should allow for the product to be securely mounted(e.g. to a ceiling joist) and safely connected to the mains supply (lighting circuit). • Do not attach to surfaces which are damp, freshly painted or otherwise electrically conductive (e.g. metallic surfaces). • W hen making connections ensure that the terminals are tightened securely and that no strands of wire protrude. Check that the terminals are tightened onto the bared conductors and not onto any insulation. • ...
- Page 3 For vertical wall mounting 2(Drawing D):Using the supplied corner bracket as a template,mark and drill the fixing hole. Attach the bracket to the wall.Take care to avoid damaging any concealed wiring and pipes. Push light fitting cable through corner bracket hole . Attach the fitting the bracket with the supplied screw. IMPORTANT: Always switch off at the mains before changing the lamp. Are advised at every stage of your installation to double check and electrical connections you have made. After you have completed your installation there are electrical tests that should be carried out. These tests are specified in the current IEE ...
- Page 4 Led replacement: The LED module in this product is non-replaceable. Replacement battery type: HFC1850 LiFePo4 3.2V 1000mAh Battery replacement: If after routine operation check, the lamp does not remain lit for the three hour period, a new battery Pack may be required. 1) Switch off the electricity at the mains. 2) Allow batteries to fully discharge then reconnect to supply and allow to charge for 24 hours. 3) Test again for 3 hours, if light does not remain lit change the battery pack as follows: 4) To replace the battery pack,it is necessary to disconnect the fitting from the mains supply and lock off. 5) Undo the screw on the side of the product and lift cover off .Set screw aside for refitting later. 6) Unplug the battery lead from the PCB. Remove any cable ties around the cables. 7) R emove the battery pack waste electrical products should not be disposed of household waste. Please recycle where facilities exist .Check with your local authority or retailer for recycling advice.
