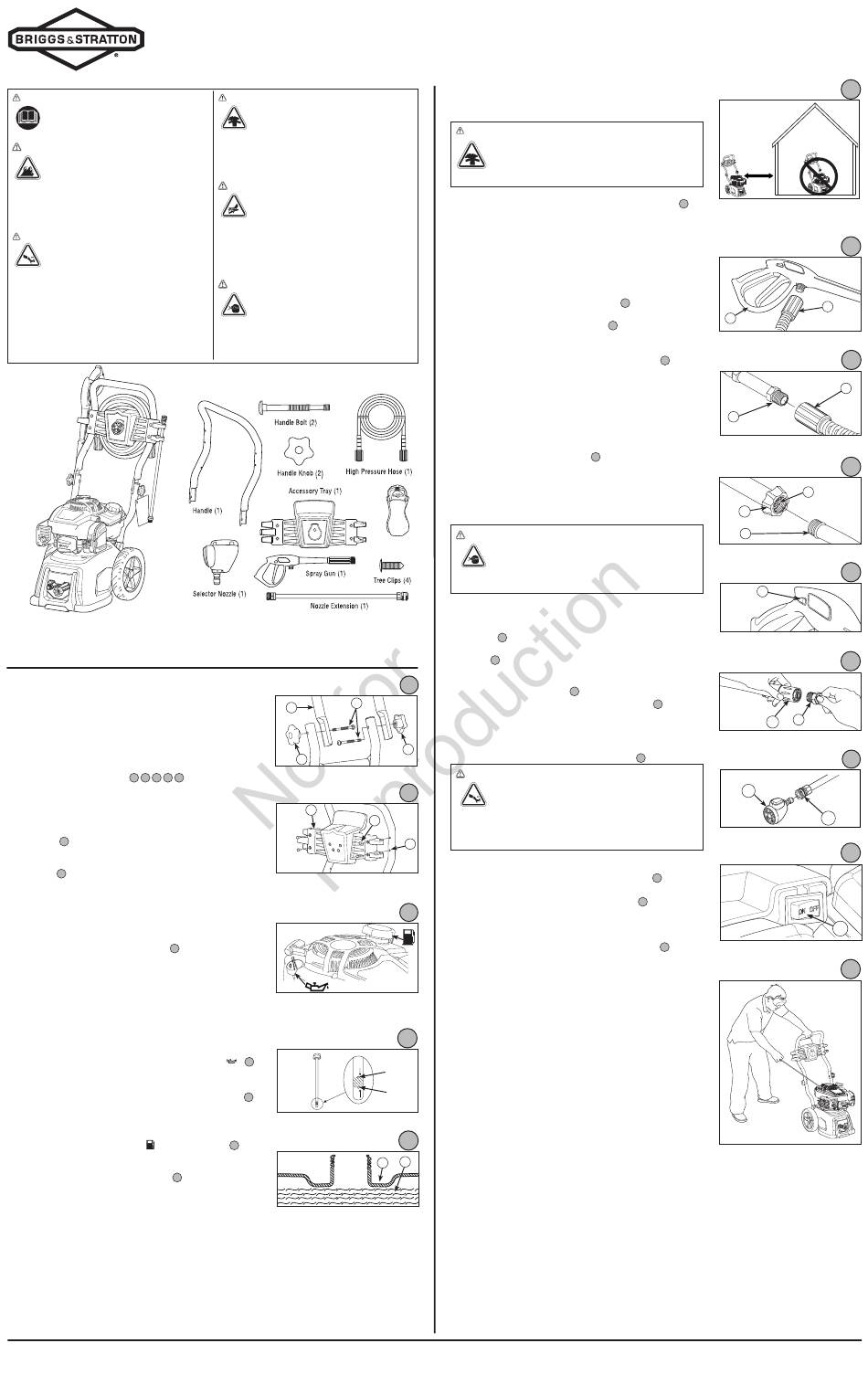

Briggs & Stratton 020662-01 Quick Setup Manual

WARNING Failure to read and follow the
operator's manual and all operating
instructions could result in death or
serious injury.
WARNING Fuel and its vapors are extremely
flammable and explosive which could
cause burns, fire or explosion resulting
in death or serious injury. Turn pressure
washer engine OFF and let it cool at least 2
minutes before removing fuel cap. Let spilled fuel
evaporate before starting engine. Always allow
space for fuel expansion.
WARNING Starter cord kickback (rapid
retraction) will pull hand and arm toward
engine faster than you can let go which
could cause broken bones, fractures,
bruises, or sprains resulting in serious injury.
NEVER pull starter cord without first relieving
spray gun pressure. Pull starter cord slowly until
resistance is felt, then pull rapidly. Firmly grasp
spray gun with both hands when using high
pressure spray to avoid injury when spray gun
kicks back.
Items not included (you will need):
• Utility knife • Unleaded fuel • Garden hose, 50 ft. (15 m) or less
• Safety goggles (indirect vented type) • Petroleum or synthetic grease
Unpack Pressure Washer
1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to
bottom.
3. Ensure you have all included items prior to assembly. If items
are damaged or missing, call 1-800-743-4115.
4. Prior to assembly, lubricate the rubber o-ring seals on all
connections with petroleum or synthetic grease. See Operator's
Manual, Lubricate O-Rings.
7 8 9 11 12
Assemble Pressure Washer
1. Place handle (A) onto handle supports connected to main
unit. Make sure holes in handle align with holes on handle
supports.
1
2. Insert handle carriage bolts (B) through holes from inside of
unit and attach a plastic knob (C) from outside of unit. Tighten
by hand.
1
NOTICE By loosening both knobs to the unthreaded middle
section of the attachment bolt, the upper handle can fold forward
to store flat atop the cold engine. DO NOT fold the handle down
while the engine is hot.
3. Place accessory tray (D) over holes (E) on handle (viewing
from front of unit). Push the tree clips (F) into the holes until
they sit flat against the accessory tray.
Add Engine Oil and Fuel
NOTICE You MUST properly fill engine with oil before attempting
to start pressure washer.
NOTICE DO NOT use unapproved gasoline such as E15 and
E85. DO NOT mix oil in gasoline or modify engine to run on
alternate fuels.
1. Move pressure washer outdoors to a flat, level surface.
2. Clean area around oil fill and remove oil fill cap/dipstick (
3. Hold neck of supplied oil pouch and remove cap.
4. Slowly pour contents of oil pouch into oil fill opening. Checking
oil level frequently, fill to FULL mark (top hole) on dipstick.
NOTICE Pause to permit oil to settle. Wipe dipstick clean each
time oil level is checked. DO NOT overfill.
5. Replace and fully tighten oil fill cap/dipstick.
6. Clean area around the fuel cap ( ), remove fuel cap.
7. Slowly add clean, fresh, UNLEADED fuel (G) to fuel tank (H).
Be careful not to overfill. To allow for fuel expansion, do not fill
above the bottom of the fuel tank neck.
8. Replace fuel cap. Let any spilled fuel evaporate before
starting engine.
Copyright © 2016. All rights reserved. No part of this material may be reproduced or transmitted in any form without the express written permission of Briggs & Stratton Power Products Group, LLC.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).
Quick Setup Guide
WARNING Engine exhaust contains carbon
monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see
it, or taste it. Operate ONLY outside far
away from windows, doors and vents. Install carbon
monoxide alarms. DO NOT run this product inside
homes or garages, even if using fans or opening
doors and windows.
WARNING High water pressure could cut
through skin resulting in serious injury.
Spray gun traps high water pressure,
even when engine is stopped and water
is disconnected. NEVER aim spray gun at people,
animals, or plants. ALWAYS point spray gun in
safe direction, press red button and squeeze spray
gun trigger to release high pressure, every time
you stop engine.
WARNING Risk of eye injury. Spray could
splash back or propel objects resulting
in serious injury. Always wear indirect
vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using
or in vicinity of this equipment. NEVER substitute
safety glasses or dry-condition goggles for indirect
vented safety goggles.
Items Included:
Operator's Manual (not shown)
A
C
D
2
).
3
4
3
5

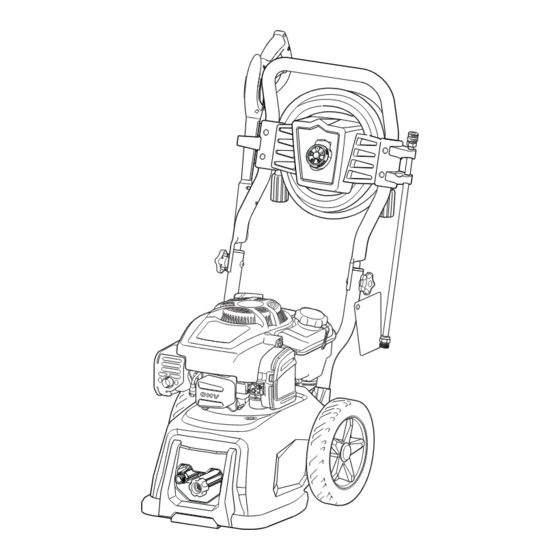

Pressure Washer
Move Pressure Washer to Safe
Operating Location
WARNING Engine exhaust contains carbon monoxide, a
poisonous gas that could kill you in minutes. You CANNOT
smell it, see it, or taste it. Operate ONLY outside far away
from windows, doors and vents. Install carbon monoxide
alarms. DO NOT run this product inside homes or
garages, even if using fans or opening doors and windows.
1. Move pressure washer outdoors to a flat, level surface.
2. Keep at least 5 ft. (1.5 m) clearance on all sides of pressure
washer including overhead to reduce the risk of exhaust heat
or exhaust gases igniting nearby combustible material.
Connect Spray Gun
NOTICE Remove and discard the shipping caps from the pump's
high pressure outlet and water inlet before attaching hoses.
1. Uncoil high pressure hose (J) and attach one end of hose to
base of spray gun (K). Tighten by hand.
2. Attach other end of high pressure hose (J) to high pressure
outlet (L) on pump. Tighten by hand.
Connect Water Supply
1. Inspect garden hose inlet screen (M) for damage.
NOTICE If inlet screen is damaged or missing, DO NOT use
pressure washer, call 1-800-743-4115.
2. Clean screen if it contains debris or have it replaced if
damaged. DO NOT run pressure washer if inlet screen is
damaged or missing.
3. Run cold water through garden hose (N) for 30 seconds to
clean out any debris. Garden hose length must not exceed
50 ft. (15 m). Turn off water supply and attach garden hose to
water inlet (P). Tighten by hand.
Start Pressure Washer
NOTICE You MUST connect and turn on water supply fully
before starting engine.
1. Put on safety goggles.
WARNING Risk of eye injury. Spray could splash back or
propel objects resulting in serious injury. Always wear
Oil Pouch (1)
indirect vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using or in
vicinity of this equipment. NEVER substitute safety glasses or
dry-condition goggles for indirect vented safety goggles.
2. Turn on water supply.
3. Point gun in a safe direction and press red safety button (Q)
on spray gun and pull trigger until water comes out in a steady
stream.
10
4. Attach nozzle extension (R) to spray gun (K). Tighten by
hand.
11
5. Pull back on collar of nozzle extension (R), insert selector
nozzle (S) and release collar. Tug on selector nozzle to make
1
sure it is securely in place.
6. Push engine rocker switch (T) to ON (I) position.
B
NOTICE This unit is equipped with a ReadyStart ® engine. A
ReadyStart engine requires no priming or choking.
7. When starting engine, position yourself as shown. Grasp
starter grip handle and pull slowly until you feel some
C
resistance. Then pull rapidly to start engine.
WARNING Starter cord kickback (rapid retraction) will pull
hand and arm toward engine faster than you can
2
let go which could cause broken bones, fractures,
bruises, or sprains resulting in serious injury. NEVER
pull starter cord without first relieving spray gun pressure. Pull
F
starter cord slowly until resistance is felt, then pull rapidly.
Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
E
NOTICE After each starting attempt, where engine fails to run,
always point gun in safe direction press red safety button (Q) and
squeeze spray gun trigger to release high pressure.
8. Point gun toward surface to be cleaned. Press the red safety
button (Q) and pull trigger to begin spraying.
3 Stop Pressure Washer
1. Release spray gun trigger and let engine idle for two minutes.
2. Push engine rocker switch (T) to OFF (0) position.
3. Turn off water supply.
4. Point spray gun in safe direction, press red safety button,
and squeeze spray gun trigger to relieve retained high water
pressure.
NOTICE Spray gun traps high water pressure, even when engine
is stopped and water is disconnected.
5. Disconnect garden hose from pump.
4
6. Disconnect high pressure hose from pump and gun for
storage. For long term storage instructions, see Operator's
Manual.
Full
7. Remove safety goggles.
Add
5
G
H
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-800-743-4115
or visit our website, BRIGGSandSTRATTON.com
6
7
K
8
9
L
9
12
13
14
10
10
13
6
7
J
8
J
9
M
P
N
10
Q
11
R
K
12
S
R
13
T
14
