Pressure Washer with POWERflow+ Technology™
Operator's Manual
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association
(PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
MILWAUKEE, WISCONSIN, U.S.A.
Manual No. 80011947 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 020603-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Briggs & Stratton 020603-03

Summary of Contents for Briggs & Stratton 020603-03

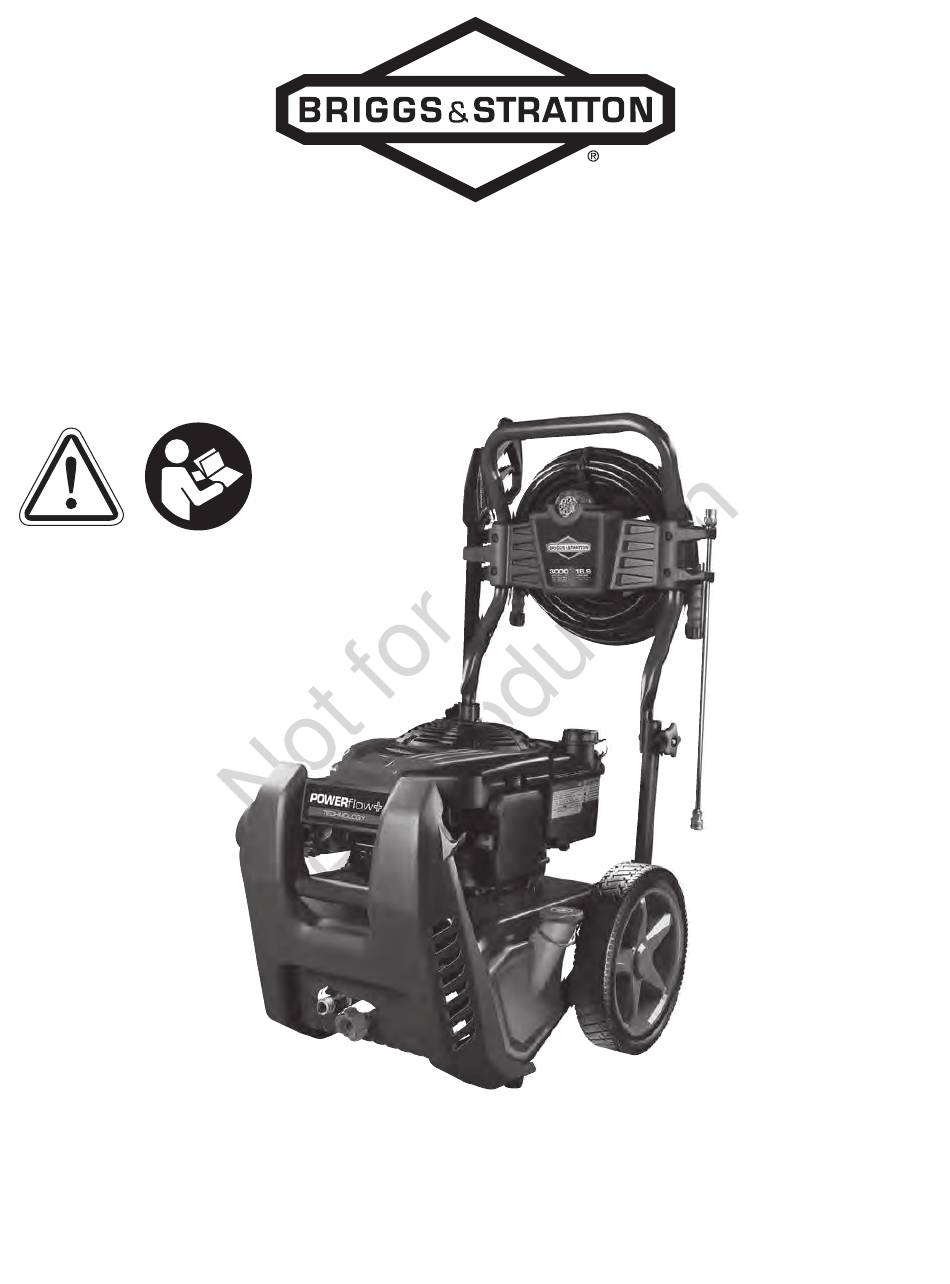

  • Page 1 Pressure Washer with POWERflow+ Technology™ Operator’s Manual This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers). BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC MILWAUKEE, WISCONSIN, U.S.A. Manual No.

  • Page 2: Table Of Contents

    Thank you for purchasing this quality-built Briggs & Stratton® pressure washer. We are pleased that you’ve placed your confidence in the Briggs & Stratton brand. When operated and maintained according to the instructions in this manual, your Briggs & Stratton pressure washer will provide many years of dependable service. This manual contains safety information to make you aware of the hazards and risks associated with pressure washers and how to avoid them.

  • Page 3: Operator Safety

    Operator Safety Important Safety Information Safety Symbols and Meanings Equipment Description Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations, and any Operator’s Manual Electrocution Toxic Fumes hazards involved. This high quality residential system features 30 cm (11 in.) wheels, axial cam pump with stainless steel pistons, automatic cool down system, one half gallon cleaning tank system, nozzle extension with quick...
  • Page 4 WARNING POISONOUS GAS HAZARD. WARNING Fuel and its vapors are extremely Engine exhaust contains carbon monoxide, a flammable and explosive which could poisonous gas that could kill you in minutes. cause burns, fire or explosion resulting You CANNOT smell it, see it, or taste it. Even in death or serious injury.
  • Page 5 WARNING Risk of electrocution. WARNING Risk of eye or bodily injury. Contact with power source could cause Spray could splash back or propel electric shock or burn resulting in death or objects resulting in serious injury. serious injury. • Always wear indirect vented (chemical splash) safety •...

  • Page 6: Assembly

    Assembly Attach Handle and Accessory Tray 1. Place handle (A) onto handle supports (B) Read entire operator’s manual before you connected to main unit. Make sure holes (C) in attempt to assemble or operate your new handle align with holes (C) on handle supports. pressure washer.
  • Page 7 Add Engine Oil WARNING Fuel and its vapors are extremely 1. Place pressure washer on a flat, level surface. flammable and explosive which could 2. Clean area around oil fill and remove yellow oil fill cause burns, fire or explosion resulting in death or serious injury.
  • Page 8 Lubricate O-Rings Lubricate all connections shown below, following these instructions: Lubrication of o-rings is extremely important for 1. Inspect and clean connecting surfaces prior to installation and operation. The use of a lubricant lubrication and assembly. (petroleum or synthetic grease) during assembly helps seat o-rings properly and provides an improved seal.
  • Page 9 Connect Hose and Water Supply to Pump 5. Run water through your garden hose for 30 seconds to clean out any debris. NOTICE DO NOT siphon standing water for the water NOTICE DO NOT run the pump without the water supply.

  • Page 10: Features And Controls

    Features and Controls Read this Operator’s Manual and safety rules before operating your pressure washer. Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. A - 7-in-1 Nozzle — Contains seven different spray K - Air Filter —...

  • Page 11: Operation

    Operation How to Start Your Pressure Washer To start your pressure washer for the first time, follow If you have any problems operating your pressure these instructions step-by-step. This starting information washer, please call the pressure washer helpline at also applies if you have let the pressure washer sit idle 1-300-BRIGGS (274.447).
  • Page 12 NOTICE Before starting the pressure washer, be sure 10. Return starter grip handle slowly. DO NOT let you are wearing safety goggles as described below. rope “snap back” against starter. WARNING The high pressure stream of water WARNING Risk of eye injury. that this equipment produces could cut Spray could splash back or propel objects through skin and its underlying tissues,...
  • Page 13 How to Stop Your Pressure Washer How to Use 7-in-1 Nozzle The 7-in-1 nozzle allows you to switch between seven 1. Release spray gun trigger and let engine idle for different spray pattern nozzles. Release trigger on two minutes. spray gun to engage safety lock before changing spray 2.
  • Page 14 Applying Detergent Pressure Washer Rinsing WARNING Chemical Burn Hazard. For Rinsing: Chemicals could cause burns resulting in 1. Select desired non soap nozzle setting following death or serious injury. instructions How to Use 7-in-1 Nozzle. • DO NOT use caustic liquid with pressure washer. 2.

  • Page 15: Maintenance

    Maintenance All service and adjustments should be made at least once each season. A new spark plug and clean air filter assure proper fuel-air mixture and help Maintenance Schedule your engine run better and last longer. Follow the Follow the hourly or calendar intervals, whichever requirements in the Maintenance Schedule chart.
  • Page 16 Check High Pressure Hose 4. Using a firm, blunt object 2.8 mm (7/64 in.) in diameter or smaller, by at least 2.5 cm (1 in.) long, The high pressure hose can develop leaks from wear, such as an Allen wrench, slowly insert the object kinking, or abuse.
  • Page 17 5. Use small paper clip to free any foreign material clogging or restricting any of the nozzles. 6. Using a garden hose, remove additional debris by back flushing water through nozzle extension. Back flush between 30 to 60 seconds. 7. Reinstall 7-in-1 nozzle into nozzle extension. 8.
  • Page 18 Changing Engine Oil 2. Carefully remove air cleaner to prevent debris from falling into carburetor. If you are using your pressure washer under extremely 3. Wash foam air cleaner (C) in liquid detergent and dirty or dusty conditions, or in extremely hot weather, water.
  • Page 19 After Each Use Air Cooling System Over time debris may accumulate in cylinder cooling Water should not remain in the unit for long periods fins and cannot be observed without partial engine of time. Sediments or minerals can deposit on pump disassembly.
  • Page 20 Winter Storage There is no need to drain gasoline from the engine if a fuel stabilizer is added according to instructions. Run the engine for 2 minutes to circulate the stabilizer NOTICE You must protect your unit from freezing throughout the fuel system before storage. temperatures.

  • Page 21: Troubleshooting

    Troubleshooting Problem Cause Correction 1. Water inlet is blocked. 1. Clear inlet. 2. Inadequate water supply. 2. Provide adequate water flow. 3. Inlet hose is kinked or leaking. 3. Straighten inlet hose, patch leak. 4. Clogged inlet hose screen. 4. Check and clean inlet hose Pump has following problems: screen.

  • Page 22: Warranty

    BRIGGS & STRATTON PRODUCTS WARRANTY POLICY January 2014 LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below.

  • Page 24: Product Specifications

    Pressure Washer Product Specifications Max Outlet Pressure ..20.68 MPa* (206.8 BAR or 3,000 PSI) @ 8.7 LPM (2.3 GPM) Max Flow Rate ....2.76 MPa (27.6 BAR or 400 PSI) @ 18.9 LPM* (5.0 GPM) Water Supply Temperature .
