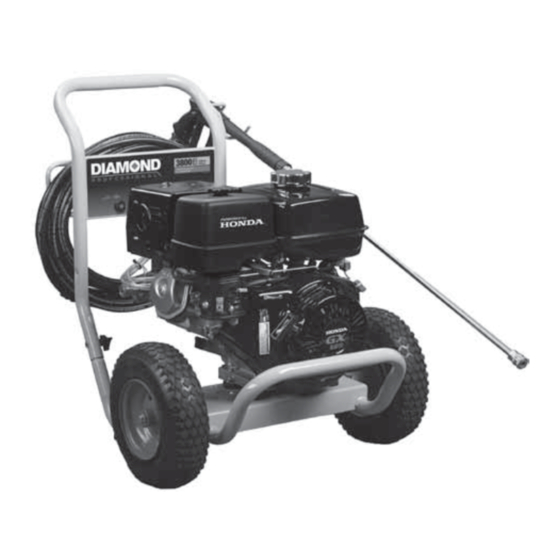

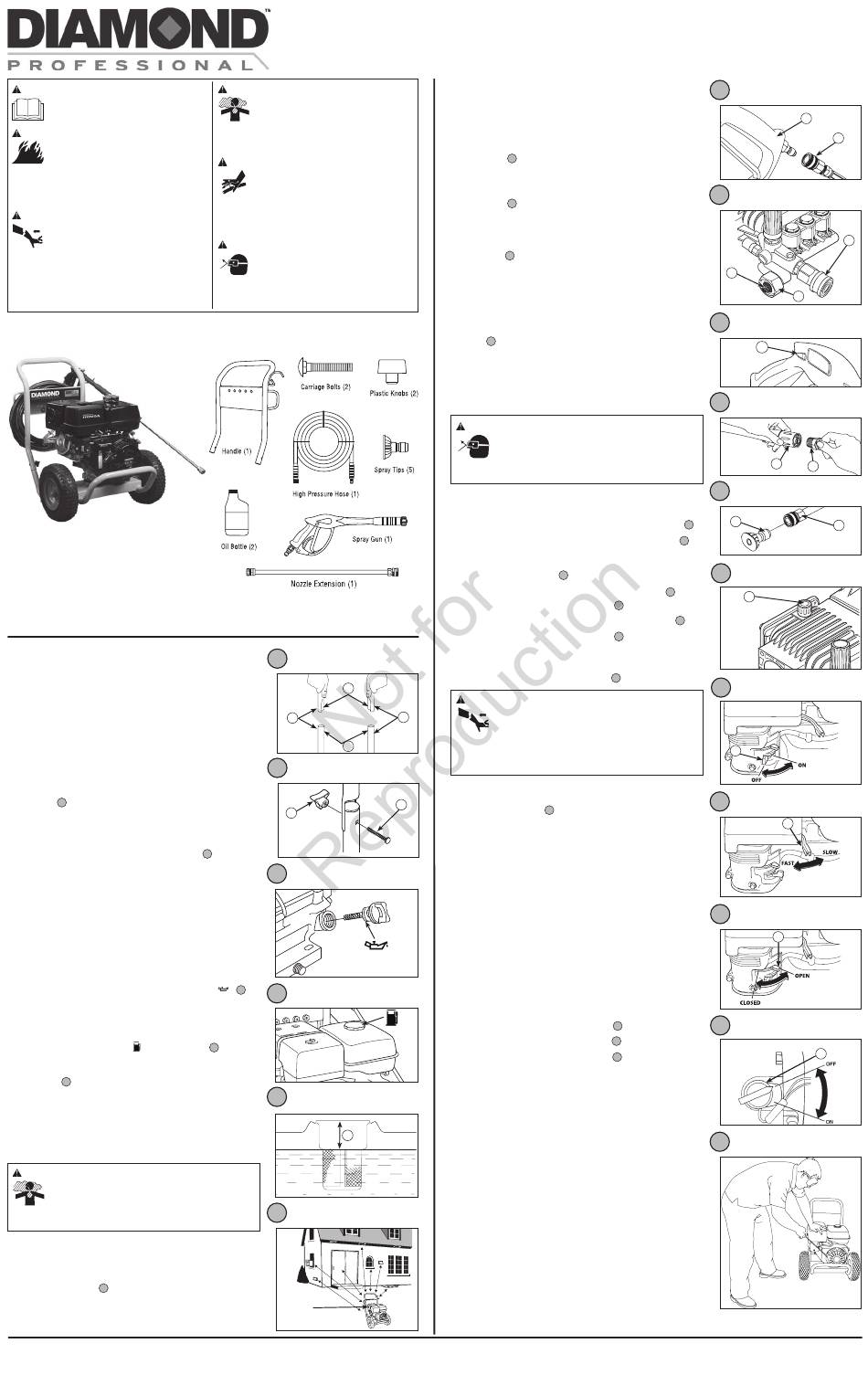

Briggs & Stratton DIAMOND PROFESSIONAL 020463 Quick Setup Manual

WARNING Failure to read and follow the operator's
manual and all operating instructions could
result in death, serious injury, and/or property
damage.
WARNING Fuel and its vapors are extremely
flammable and explosive which could cause
burns, fire or explosion resulting in death,
serious injury and/or property damage. Turn
pressure washer engine OFF and let it cool at least
2 minutes before removing fuel cap. Let spilled fuel
evaporate before starting engine. Always allow space for
fuel expansion.
WARNING Starter cord kickback (rapid retraction)
will pull hand and arm toward engine faster
than you can let go which could cause broken
bones, fractures, bruises, or sprains resulting
in serious injury. NEVER pull starter cord without first
relieving spray gun pressure. Pull starter cord slowly
until resistance is felt, then pull rapidly. Firmly grasp
spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
You will need:
• Utility knife • Unleaded fuel • Garden hose, 50 ft. (15m) or less
Unpack pressure washer
1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to bottom.
3. Ensure you have all included items prior to assembly. If items are
damaged or missing, call 1-800-743-4115.
4. Prior to assembly, lubricate all o-ring connections as described in
operator's manual.
Assemble pressure washer
1. Place handle (A) onto handle supports (B) connected to main
unit. Make sure holes (C) in handle align with holes (C) on handle
supports.
1
NOTICE It may be necessary to move the handle supports from side to
side in order to align the handle so it will slide over the handle supports.
2. Insert carriage bolts (D) through holes from back of unit and attach a
plastic knob (E) from front of unit. Tighten by hand.
3. Insert multi–colored spray tips and other supplied accessories in
spaces provided on the handle.
Add engine oil and fuel
NOTICE You MUST properly fill engine with oil before attempting to
start pressure washer.
NOTICE DO NOT use E85 fuel.
NOTICE DO NOT mix oil with fuel.
1. Move pressure washer outdoors to a flat, level surface.
2. Clean area around oil fill and remove oil fill cap/dipstick (
3. Using oil funnel (optional), slowly pour contents of supplied oil into
oil fill opening, frequently checking oil level. DO NOT OVERFILL.
4. Replace and fully tighten oil fill cap/dipstick.
5. Clean area around the fuel cap ( ), remove fuel cap.
6. Slowly add regular unleaded fuel to fuel tank. Be careful not to
overfill. Allow about 1.0 in. (2.5 cm) (F) of tank space for fuel
expansion.
5
7. Replace fuel cap. Let any spilled fuel evaporate before starting
engine.
Move pressure washer
to safe operating location
WARNING Running engine gives off carbon monoxide, an
odorless, colorless, poison gas. Breathing carbon
monoxide could result in death, serious injury, nausea or
fainting. Operate this product ONLY outdoors. DO NOT
operate this product inside any building or enclosure, even if windows
and doors are open.
1. Move pressure washer outdoors to a flat, level surface.
2. Running engines give off carbon monoxide. Keep at least 5 ft.
(1.5 m) clearance on all sides of pressure washer including overhead
to reduce the risk of exhaust heat or exhaust gases igniting nearby
combustible material.
6
Copyright © 2012. All rights reserved. No part of this material may be reproduced or transmitted in any form without the express written permission of Briggs & Stratton Power Products Group, LLC.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).
Quick Setup Guide
Pressure Washer
WARNING Running engine gives off carbon
monoxide, an odorless, colorless, poison
gas. Breathing carbon monoxide could result
in death, serious injury, nausea or fainting.
Operate this product ONLY outdoors. DO NOT operate
this product inside any building or enclosure, even if
windows and doors are open.
WARNING High water pressure could cut through
skin resulting in serious injury. Spray gun
traps high water pressure, even when engine
is stopped and water is disconnected. NEVER
aim spray gun at people, animals, or plants. ALWAYS
point spray gun in safe direction, press red button and
squeeze spray gun trigger to release high pressure,
every time you stop engine.
WARNING Risk of eye injury. Spray could splash
back or propel objects resulting in serious
injury. Always wear indirect vented (chemical
splash) safety goggles marked to comply with
ANSI Z87.1 when using or in vicinity of this equipment.
NEVER substitute safety glasses or dry-condition
goggles for indirect vented safety goggles.
Items Included:
Operator's Manual (not shown)
• Safety goggles (indirect vented type)
1
A
C
B
2
D
2
3
).
4
3
4
5
F
6
Exhaust Port
Pointed away from
dwelling openings
Connect spray gun
NOTICE Remove and discard the shipping caps from the pump's high-
pressure outlet and water inlet before attaching hoses.
1. Uncoil high-pressure hose (G) attach quick-connect end of hose to
base of spray gun (H). Pull down on collar of quick-connect, slide
onto spray gun and let go of collar. Tug on hose to be sure of tight
connection.
7
2. Similarly, attach other end of high-pressure hose to high-pressure
outlet (J) on pump. Pull down on collar of quick-connect, slide
onto pump and let go of collar. Pull on hose to be sure of tight
connection.
8
Connect water supply
1. Before connecting garden hose to water inlet, inspect inlet
screen (K).
8
NOTICE If inlet screen is damaged or missing, DO NOT use pressure
washer, call 1-800-743-4115.
2. Clean screen if it contains debris or have it replaced if damaged.
3. Run cold water through garden hose for 30 seconds to clean out any
debris. Garden hose length must not exceed 50 ft. (15 m). Turn off
water supply and attach garden hose to water inlet (L). Tighten by
hand.
8
Start pressure washer
NOTICE You MUST connect and turn on water supply fully before
starting engine.
1. Put on safety goggles.
WARNING Risk of eye injury. Spray could splash back or propel
objects resulting in serious injury. Always wear indirect
vented (chemical splash) safety goggles marked to
comply with ANSI Z87.1 when using or in vicinity of this
equipment. NEVER substitute safety glasses or dry-condition goggles
for indirect vented safety goggles.
2. Turn on water supply.
3. Point spray gun in a safe direction and press red safety button (M),
then squeeze trigger until water comes out in a steady stream.
4. Attach nozzle extension (P) to spray gun (N). Tighten by hand.
5. Choose spray tip (Q) you want to use, pull back on collar of nozzle
extension (R), insert nozzle and release collar. Tug on nozzle to make
sure it is securely in place.
11
6. Verify pump oil dipstick (S) has been installed into pump.
7. Move fuel valve lever (T) to "On" position.
8. Move throttle lever (U) to "Fast" position, shown as a rabbit.
9. Move choke lever (V) to "Closed" position.
NOTICE For a warm engine, be sure the choke lever is in the "Open"
position.
10. Move engine switch (W) to "On" position.
WARNING Starter cord kickback (rapid retraction) will pull hand
and arm toward engine faster than you can let go which
C
could cause broken bones, fractures, bruises, or sprains
resulting in serious injury. NEVER pull starter cord without
first relieving spray gun pressure. Pull starter cord slowly until
resistance is felt, then pull rapidly. Firmly grasp spray gun with both
hands when using high pressure spray to avoid injury when spray gun
kicks back.
11. When starting engine, position yourself as shown. Grasp starter
grip handle and pull slowly until you feel some resistance. Then pull
E
rapidly to start engine.
17
12. When engine starts, slowly move choke lever to "Open" position
as engine warms. If engine falters, move choke lever to "Closed"
position, then to "Open" position.
13. If engine fires, but does not continue to run, always point gun in safe
direction, press red safety button and squeeze spray gun trigger to
release high-pressure. Move choke lever to "Open" position, and
repeat steps 10 through 12.
14. If engine does not start after six pulls, move choke lever to "Open"
position, and repeat steps 10 through 12.
NOTICE Always keep the throttle lever in the "Fast" position when
operating the pressure washer.
15. Point gun toward surface to be cleaned. Press red safety button and
pull trigger to begin spraying.
Stop pressure washer
1. Release spray gun trigger and let engine idle for two minutes.
2. Move throttle lever (U) to SLOW position.
3. Move engine switch (W) to "Off" position.
4. Move fuel valve lever (T) to "Off" position.
5. Turn off water supply.
6. Point spray gun in safe direction, press red safety button, and
squeeze spray gun trigger to relieve retained high water pressure.
Spray gun traps high water pressure, even when engine is stopped
and water is disconnected.
7. Disconnect garden hose from pump.
8. Disconnect high-pressure hose from pump and gun for storage. For
long term storage instructions, see operator's manual.
9. Remove safety goggles.
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-800-743-4115
Or visit our website www.diamondpowerproducts.com
