  • Page 1 GYSFLASH 100.12 HF 2-11 / 72-76 102.12 HF 12-21 / 72-76 22-31 / 72-76 32-41 / 72-76 42-51 / 72-76 52-61 / 72-76 62-71 / 72-76 www.gys.fr 75530_V9_23/06/2021...
  • Page 2 Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF SAFETY INSTRUCTIONS This manual contains safety and operating instructions. Please read it carefully before using the device for the first time and keep it for future reference. This machine should only be used for charging or power supply operations specified within the limits indicated on the machine and in the instruction manual.

  • Page 3: Connection / Disconnection

    • The device does not require any specific maintenance. • If the internal fuse is melted, it must be replaced by the manufacturer (GYS dedicated sales service) or by an equally qualified person to prevent any accidents. • Do not use solvents or any agressive cleaning products.

  • Page 4: General Description

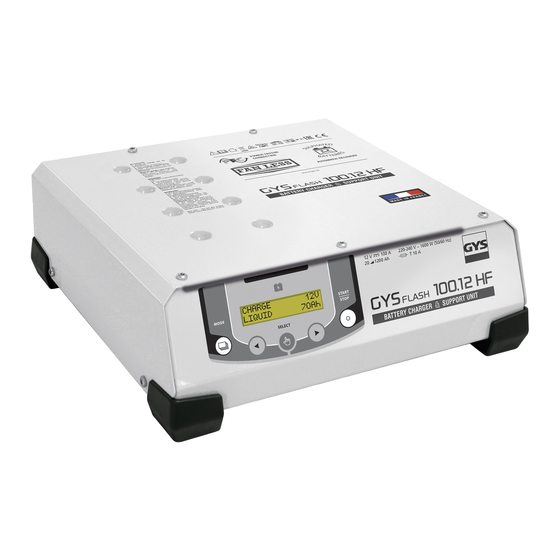

    GYSFLASH 100.12 HF / 102.12 HF GENERAL DESCRIPTION The GYSFLASH 100.12 HF / 102.12 HF provides a high powered stabilised power supply incorporating SMPS (Switch Mode Power Supply) technology. Designed to sustain 12V battery (liquid/AGM/gel) for vehicles during diagnostic work. This device will also ensure an ideal charging cycle for battery maintenance for the most modern vehicles and battery types.

  • Page 5: Diag+ Mode

    Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF CHARGE MODE CONFIGURATION DEPENDING ON THE BATTERY TYPE CHARGE 80Ah Gel/AGM Easy CHARGE Liquid Gel/AGM Gel/AGM 80Ah LFP/LiFePO4 Charging curves available if activated in Expert «Advanced Menu». 20Ah CHARGE...
  • Page 6 Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF SHOWROOM MODE On a stationary vehicle, the GYSFLASH supplies up to 100A to test high-energy consumers (engine fan, window regulator, electronic suspension, etc…) by supplying a steady voltage adjustable: - 12V to 14.8V...

  • Page 7: Configuration Menu

    Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF POWER SUPPLY MODE CONFIGURATION POWER SUPPLY U=13.5V I<30A Start up : • Push the START/STOP key to start the mode. 2.0V • During use, the current consumed and the instan- POWER SUPPLY 2.1V...

  • Page 8: Reset Memory

    MODE • Turn ON the switch, while the MODE key is still pressed. The screen displays «GYSFLASH 100.12 HF Vx.x» / «GYSFLASH 102.12 HF Vx.x» for 3 seconds. • Hold the MODE key until the creen displays «lock showroom: Y»...

  • Page 9: Advanced Menu

    Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF ADVANCED MENU This menu controls the advanced parameters of the charger. To move from one parameter to another push the Select key : Activation «Change battery» > Activation «Power Supply» > Activation «Expert Curve» (> Adjusment of the SELECT «Expert Curve»...

  • Page 10: Troubleshooting

    Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF Charging curve description (IU refresh charge recovery oating Phase I Phase U Phase I Phase U Recovery max. charge recovery refresh refresh Shorted cell Sulphation New charge Test Test...

  • Page 11: Warranty

    Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF Displays for 1s : Showroom without battery : GYSFLASH operating normally. Showroom mode is working on « no battery » To deactivate the "no battery" function, press the "START/STOP" key, and then «...
  • Page 12 Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF SPÉCIFICATIONS TECHNIQUES / TECHNICAL FEATURES / TECHNISCHE EIGENSCHAFTEN / ESPECIFICACIONES TÉCNICAS/ ТЕХНИЧЕСКИЕ СПЕЦИФИКАЦИИ / TECHNISCHE SPECIFICATIES GYSFLASH 100.12 HF GYSFLASH 102.12 HF Tension d’alimentation assignée Rated input voltage Nominale voedingsspanning...
  • Page 13 Translation of the original instructions GYSFLASH 100.12 HF / 102.12 HF Classe de protection Protection class Beschermingsklasse Schutzklasse Class I Classe di protezione Clase de protección Класс защиты Poids (cable secteur) Weight (including mains cable) Gewicht van het toestel (incl. kabels) Peso (cables de corriente) 5.1 kg...
  • Page 14 GYS SAS 1, rue de la Croix des Landes CS 54159 53941 SAINT-BERTHEVIN Cedex France...
