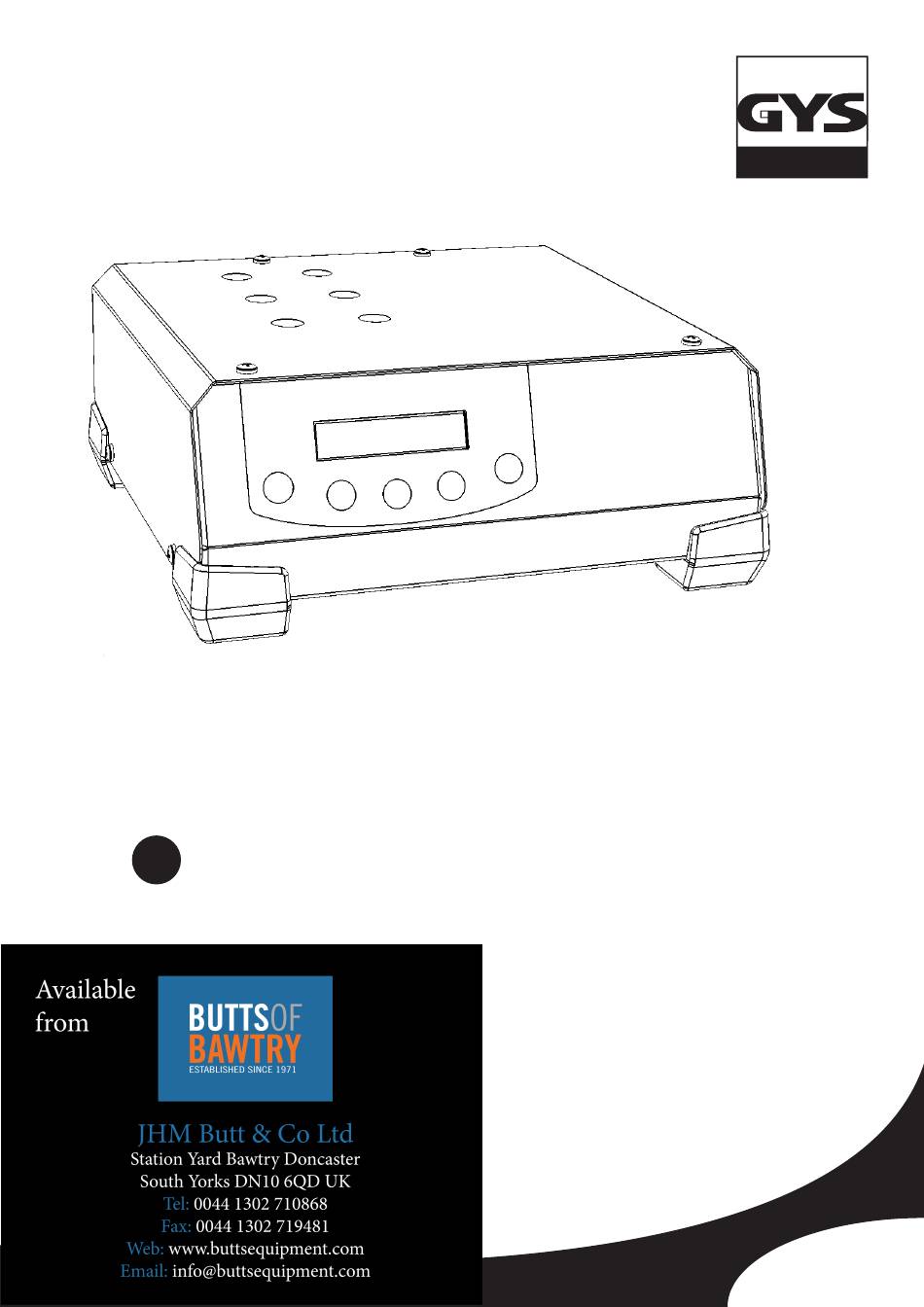

  • Page 1 GYSFLASH 100-12 HF 10-17 / 50-52 73502-V3-14/03/2016...

  • Page 2: General Description

    GENERAL DESCRIPTION The GYSFLASH 100-12 HF provides a high powered stabilised power supply incorporating SMPS (Switch Mode Power Supply) tech- nology. Designed to sustain 12V battery (liquid/AGM/gel) for vehicles during diagnostic work. This device will also ensure an ideal charging cycle for battery maintenance for the most modern vehicles and battery types.

  • Page 3: Diag+ Mode

    GYSFLASH 100-12 HF CHARGE MODE CONFIGURATION DEPENDING ON THE BATTERY TYPE CHARGE 80Ah Gel/AGM Easy CHARGE Liquid Gel/AGM Gel/AGM 80Ah Charging curves available if activated in Expert «Advanced Menu». 20Ah CHARGE 11Ah Only for liquid, gel/AGM and expert charging curves.
  • Page 4 GYSFLASH 100-12 HF SHOWROOM MODE On a stationary vehicle, the GYSFLASH supplies up to 100A to test high-energy consumers (engine fan, window regulator, electronic suspension, etc…) by supplying a steady voltage adjustable: - 12V to 14.8V Volatage adjustment: It is possible to adjust the voltage in steps of 0.1V according to manufacturer’s specifications.

  • Page 5: Configuration Mode

    GYSFLASH 100-12 HF POWER SUPPLY MODE CONFIGURATION POWER SUPPLY U=13.5V I<30A Start up : • Push the START/STOP key to start the mode. 2.0V • During use, the current consumed and the instan- POWER SUPPLY 2.1V taneous voltage are displayed.

  • Page 6: Reset Memory

    GYSFLASH 100-12 HF Shortcut to Lock Showroom : The «Lock Showroom» feature can be activated without accessing the configuration menu. • Turn OFF the device (main switch in the OFF position) • Press MODE key MODE • Turn ON the switch, while the MODE key is still pressed. The screen displays «GYSFLASH 1000-12 HF Vx.x»...

  • Page 7: Advanced Menu

    GYSFLASH 100-12 HF ADVANCED MENU This menu controls the advanced parameters of the charger. To move from one parameter to another push the Select key : Activation «Change battery» > Activation «Power Supply» > Activation «Expert Curve» (> Adjusment of the SELECT «Expert Curve»...

  • Page 8: Troubleshooting

    GYSFLASH 100-12 HF Charging curve description (IU refresh charge recovery oating Phase I Phase U Phase I Phase U Recovery max. charge recovery refresh refresh Shorted cell Sulphation New charge Test Desulphation Test Charge Absorption Refresh Floating Recovery Test cycle...
  • Page 9 GYSFLASH 100-12 HF Screen flashing : « >100A » Consumption exceeds the output of the charger Turn off electrical consumers to reduce power demand + alarm beep GYSFLASH works to specification. Turn off consumers to check the battery is not Several consumers are active on the vehicle too discharged (see cause n°2).

  • Page 10: Декларация Соответствия

    CE/GS Kennzeichnung : 2015. ATTESTACION DE CONFORMIDAD La empresa GYS declara que el cargador descrito en este manual, GYSFLASH 100-12 HF, está fabricado en conformidad a las exi- gencias de las directivas europeas siguientes: - Directiva Baja Tensión : 2006/95/CE del 12/12/06.
  • Page 11 GYSFLASH 100-12 HF COMBINAISON BATTERIES / BATTERIES COMBINATION / BATTERIEKOMBINATIONEN / COMBINACION BATERIAS / КОМБИНАЦИЯ АККУМУЛЯТОРОВ / BATTERIJ COMBINATIE PICTOGRAMMES / SYMBOLS / ZEICHENERKLÄRUNG / ICONOS / СИМВОЛЫ / PICTOGRAMMEN Appareil conforme aux directives européennes. Pour usage intérieur, ne pas exposer à la pluie.
  • Page 12 GYSFLASH 100-12 HF SPÉCIFICATIONS TECHNIQUES / TECHNICAL FEATURES / TECHNISCHE EIGENSCHAFTEN / ESPECIFICACIONES TECNICAS / TECHNISCHE SPECIFICATIES GYSFLASH 100-12 HF ~230 V AC ±15% Tension d’alimentation / Power supply/ Netzanschluss/ Tensión de alimentación / Напряжение питания / Netspanning 50 / 60 Hz Puissance nominale max / Max nominal power / Max.
