The assembled rotor system can be damaged irreparably if handled incorrectly.
If the rotor system is lifted in a wrong way, its own weight may overstrain the

8.15.2 Disassembly of the Rotor System

1. To disassemble the rotor system, place it upside down onto a clean surface or stands
to support the rotor at approximately 2 m from the hub (so that the system is at the
design coning angle of 2.4deg per side).
2. Loosen locknuts (6) on the first blade by counter holding the corresponding bolt head
to prevent it from turning inside the blade holes.
3. Push out all fitting bolts (4) without any force, but use no more than a gentle tapping if
necessary. Tilt the rotor blade up and down to support easy removal of the bolt.
Note that fitting bolts have different shaft lengths.
4. Carefully pull the rotor blade out of the hub (1) in radial direction and take off the
clamping profile (2).
5. Repeat step 2 to 4 on second rotor blade.
6. Do not disassemble the rotor hub!
7. Store and transport rotor blades, clamping profile and rotor hub only in air cushion foil
or using other suitable means to prevent bending or surface damage.

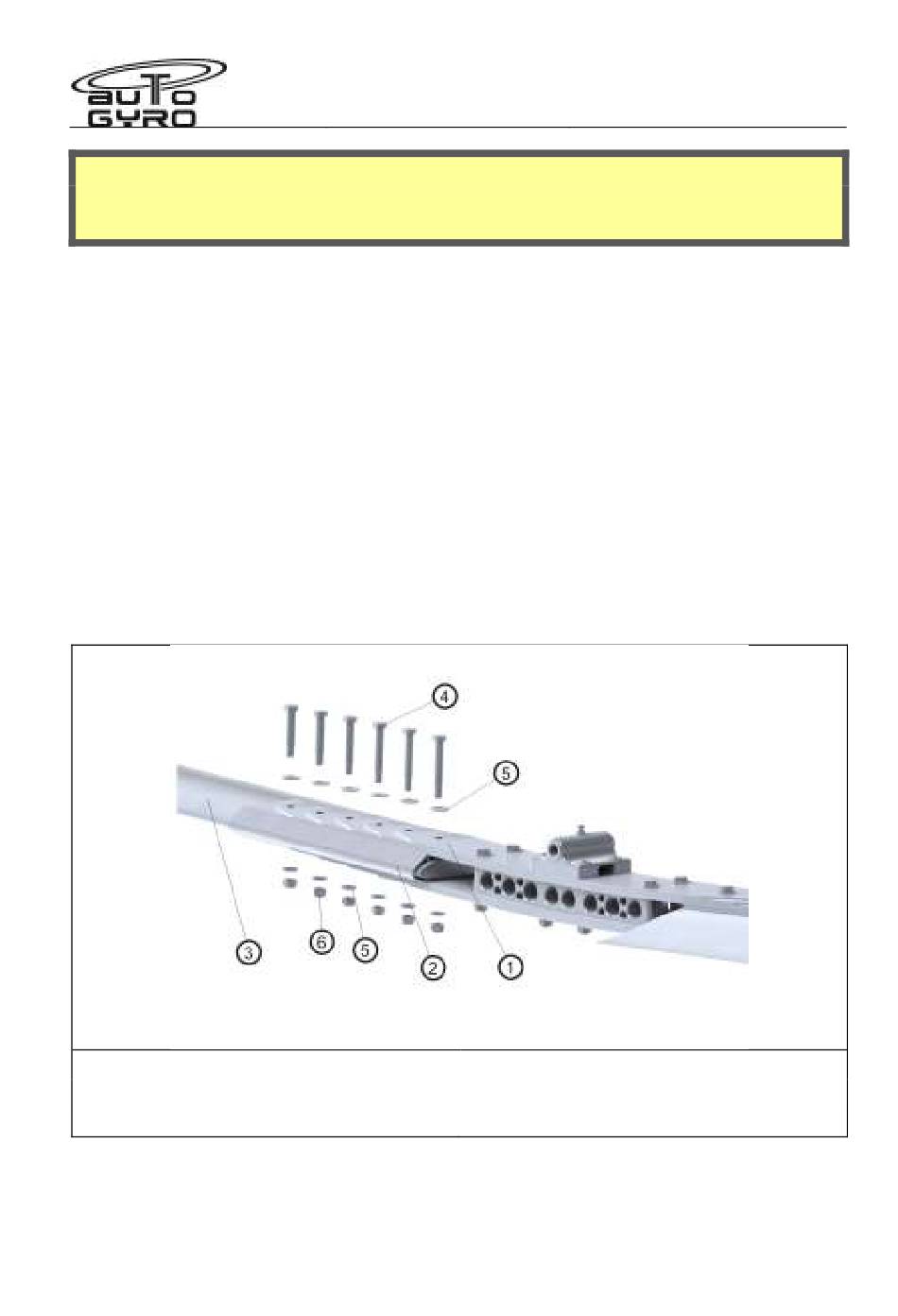

1 – Rotor hub
2 – Clamping profile
3 – Rotor blade
8.15.3

Assembly of the Rotor System

1. The rotor blades, clamping profile and rotor hub are labelled with an engraved serial
number.
AutoGyro_POH_MTOsport-Model2017
915/916iS
Pilot Operating Handbook
MTOsport Model
2017Fehler! Verweisquelle
konnte nicht gefunden
werden. 915iS & 916iS
material.
4 – Fitting bolts (6 ea.)
5 – Washer (12 ea.)
6 – Lock nuts (6 ea.)
